The Adafruit BMP183 (Part ID: 1900) is a high-precision digital barometric pressure sensor designed to measure atmospheric pressure and temperature. This sensor is ideal for applications requiring accurate altitude measurement, weather forecasting, and environmental monitoring. Its compact size and low power consumption make it suitable for portable devices and embedded systems.

• Altitude measurement for drones and aircraft
• Weather stations and forecasting systems
• Environmental monitoring devices
• GPS enhancement for elevation data
• Scientific experiments requiring pressure and temperature data

The Adafruit BMP183 is based on Bosch Sensortec's BMP183 sensor and offers the following key specifications:

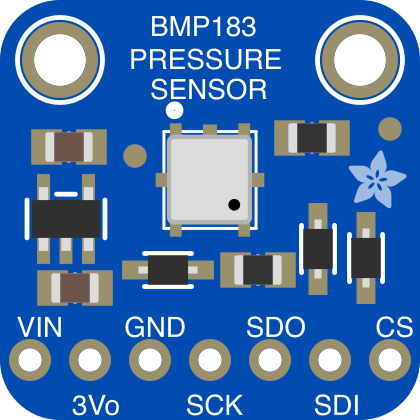

The BMP183 sensor is typically mounted on a breakout board by Adafruit, which includes the following pins:

1. Power Supply: Connect the VIN pin to a 3.3V power source and the GND pin to ground.
2. Communication Interface:
   • For I2C: Connect the SCL and SDA pins to the corresponding I2C pins on your microcontroller. Use pull-up resistors (typically 4.7kΩ) on both lines if not already present.
   • For SPI: Connect the CS, SDI, SDO, and SCL pins to the corresponding SPI pins on your microcontroller.
3. Bypass Capacitor: Place a 0.1µF capacitor close to the VIN and GND pins for noise filtering.

• Ensure the operating voltage does not exceed 3.6V to avoid damaging the sensor.
• Use level shifters if interfacing with a 5V microcontroller.
• Avoid exposing the sensor to water or condensation, as it may affect accuracy or damage the device.

Below is an example of how to use the BMP183 with an Arduino UNO using the Adafruit BMP183 library:

#include <Wire.h>
#include <Adafruit_Sensor.h>
#include <Adafruit_BMP183.h>

// Create an instance of the BMP183 sensor
Adafruit_BMP183 bmp;

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  Serial.println("Initializing BMP183 sensor...");

  // Initialize the BMP183 sensor
  if (!bmp.begin()) {
    Serial.println("Could not find a valid BMP183 sensor, check wiring!");
    while (1); // Halt execution if sensor initialization fails
  }

  Serial.println("BMP183 sensor initialized successfully!");
}

void loop() {
  // Read pressure in hPa
  float pressure = bmp.readPressure() / 100.0; // Convert Pa to hPa
  // Read temperature in Celsius
  float temperature = bmp.readTemperature();

  // Print the readings to the Serial Monitor
  Serial.print("Pressure: ");
  Serial.print(pressure);
  Serial.println(" hPa");

  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");

  delay(1000); // Wait 1 second before taking the next reading
}

• Install the Adafruit BMP183 library via the Arduino Library Manager before running the code.
• Ensure proper wiring between the BMP183 and Arduino UNO as per the pin configuration.

1. Sensor Not Detected:

   • Cause: Incorrect wiring or I2C address mismatch.
   • Solution: Double-check the wiring and ensure the I2C address matches the library's default (0x77).

2. Inaccurate Readings:

   • Cause: Environmental factors such as rapid temperature changes or vibrations.
   • Solution: Place the sensor in a stable environment and avoid exposure to sudden temperature changes.

3. No Output on Serial Monitor:

   • Cause: Incorrect baud rate or sensor initialization failure.
   • Solution: Verify the Serial Monitor baud rate matches the code (9600). Check wiring and power supply.

Q: Can the BMP183 measure altitude directly?
A: The BMP183 does not measure altitude directly but calculates it based on atmospheric pressure. Use the formula provided in the Adafruit BMP183 library for altitude estimation.

Q: Can I use the BMP183 with a 5V microcontroller?
A: Yes, but you must use level shifters to step down the 5V signals to 3.3V to avoid damaging the sensor.

Q: What is the typical accuracy of the BMP183?
A: The BMP183 offers a pressure accuracy of ±1 hPa and a temperature accuracy of ±2°C under standard conditions.

By following this documentation, you can effectively integrate the Adafruit BMP183 into your projects for reliable pressure and temperature measurements.
