How to Use AS608: Examples, Pinouts, and Specs

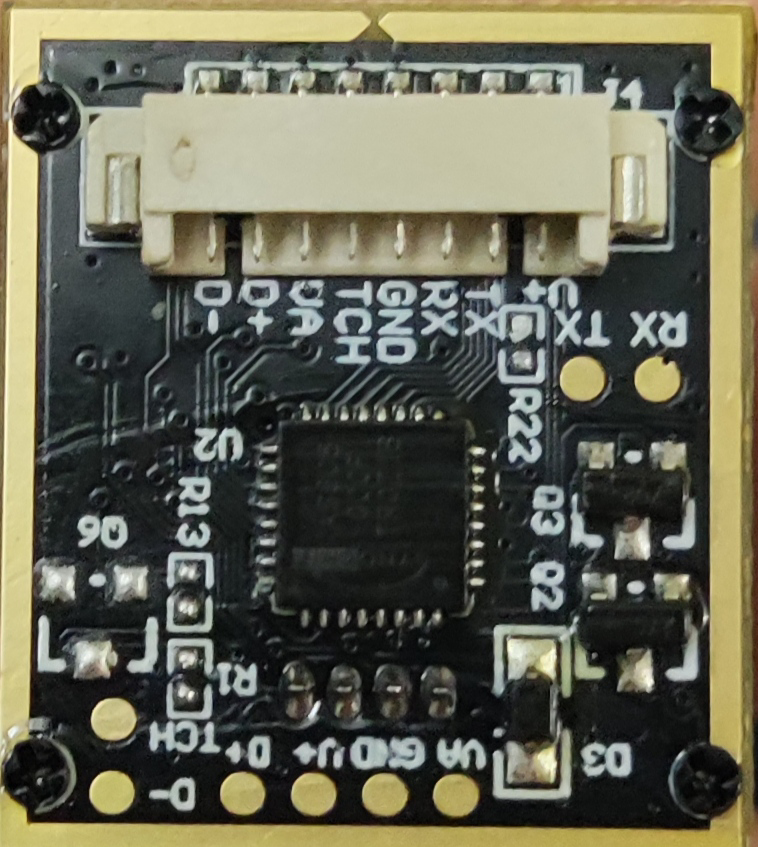

The AS608 is a fingerprint sensor module manufactured by Synochip, with the part ID JM-101. This module is designed to provide biometric authentication capabilities with high accuracy and fast fingerprint recognition. Its compact design and reliable performance make it ideal for a wide range of security applications, including access control systems, personal identification devices, and embedded systems requiring biometric authentication.

• Door locks and access control systems
• Time attendance systems
• Personal identification in embedded devices
• Secure payment systems
• IoT devices requiring biometric security

The AS608 module has a 6-pin interface for communication and power. The pin configuration is as follows:

1. Power Supply: Connect the VCC pin to a 3.3V to 6V power source and the GND pin to ground.
2. UART Communication: Connect the TXD and RXD pins to the corresponding UART pins of your microcontroller or development board (e.g., Arduino UNO).
3. Touch Signal: Optionally, use the TOUCH pin to detect when the sensor is touched. This pin outputs a high signal when a finger is placed on the sensor.
4. Initialization: Use the appropriate library or commands to initialize the sensor and configure its settings (e.g., baud rate, fingerprint storage).

• Ensure the power supply is stable and within the specified voltage range to avoid damage to the module.
• Avoid exposing the sensor to direct sunlight or extreme environmental conditions, as this may affect its performance.
• Clean the sensor surface regularly to maintain accuracy and reliability.
• Use a level shifter if connecting the module to a 5V logic microcontroller, as the AS608 operates at 3.3V logic levels.

Below is an example of how to interface the AS608 with an Arduino UNO using the Adafruit Fingerprint Sensor library:

#include <Adafruit_Fingerprint.h>

// Define the UART pins for the AS608 module
#define RX_PIN 2  // Connect to AS608 TXD
#define TX_PIN 3  // Connect to AS608 RXD

// Create a fingerprint sensor object
Adafruit_Fingerprint finger(&mySerial);

// Initialize software serial for communication
SoftwareSerial mySerial(RX_PIN, TX_PIN);

void setup() {
  Serial.begin(9600); // Initialize serial monitor
  while (!Serial);    // Wait for serial monitor to open

  Serial.println("Initializing AS608 Fingerprint Sensor...");
  finger.begin(57600); // Default baud rate for AS608

  if (finger.verifyPassword()) {
    Serial.println("Sensor detected and verified!");
  } else {
    Serial.println("Sensor not detected. Check connections.");
    while (1); // Halt execution if sensor is not found
  }
}

void loop() {
  Serial.println("Place your finger on the sensor...");
  int result = finger.getImage(); // Capture fingerprint image

  if (result == FINGERPRINT_OK) {
    Serial.println("Fingerprint image captured successfully!");
  } else if (result == FINGERPRINT_NOFINGER) {
    Serial.println("No finger detected.");
  } else {
    Serial.println("Error capturing fingerprint image.");
  }

  delay(1000); // Wait before next attempt
}

• Install the Adafruit Fingerprint Sensor library from the Arduino Library Manager before running the code.
• Ensure the RX and TX pins are correctly connected to the AS608 module.

1. Sensor Not Detected

   • Cause: Incorrect wiring or baud rate mismatch.
   • Solution: Double-check the connections and ensure the baud rate matches the module's configuration.

2. Fingerprint Not Recognized

   • Cause: Poor fingerprint quality or dirty sensor surface.
   • Solution: Clean the sensor surface and ensure the finger is placed properly.

3. No Response from the Module

   • Cause: Insufficient power supply or damaged module.
   • Solution: Verify the power supply voltage and current. Replace the module if necessary.

4. Touch Signal Not Working

   • Cause: TOUCH pin not connected or misconfigured.
   • Solution: Ensure the TOUCH pin is connected to the appropriate input pin on the microcontroller.

Q: Can the AS608 store multiple fingerprints?
A: Yes, the AS608 can store up to 162 fingerprints in its internal memory.

Q: What is the default baud rate of the AS608?
A: The default baud rate is 57600 bps, but it can be configured as needed.

Q: Is the AS608 compatible with 5V logic microcontrollers?
A: The AS608 operates at 3.3V logic levels. Use a level shifter when interfacing with 5V logic devices like the Arduino UNO.

Q: How do I clean the sensor surface?
A: Use a soft, lint-free cloth slightly dampened with isopropyl alcohol to clean the sensor. Avoid using abrasive materials.

Q: Can the AS608 be used outdoors?
A: While the AS608 can operate in a wide temperature range, it is not waterproof or dustproof. Use protective enclosures for outdoor applications.
