How to Use Grove Smart IR Gesture Sensor: Examples, Pinouts, and Specs

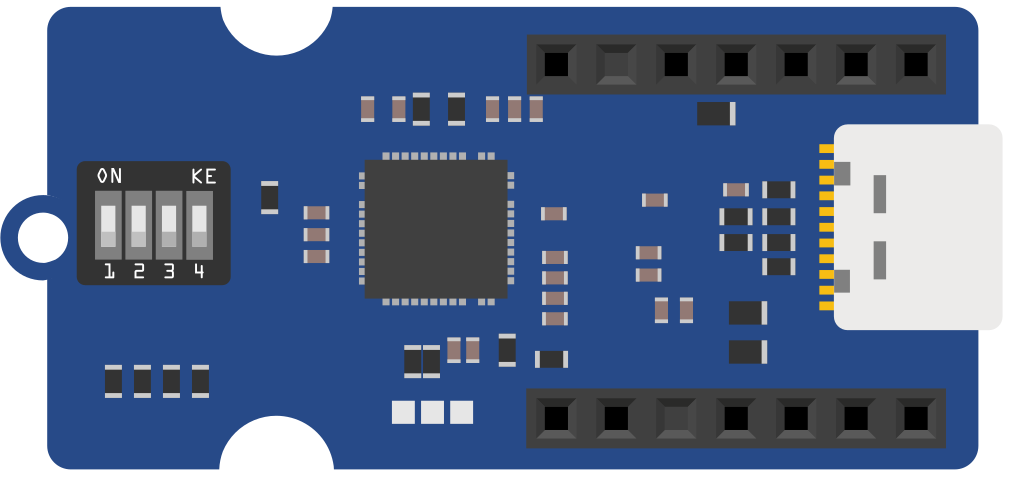

The Grove Smart IR Gesture Sensor is a compact and versatile sensor designed to detect hand gestures using infrared (IR) light. This touchless control solution is ideal for applications where physical interaction is not feasible or desired. By recognizing simple hand movements, the sensor enables intuitive control of devices and systems, making it a popular choice for smart home devices, interactive displays, and robotics.

• Touchless control of smart home appliances
• Gesture-based user interfaces for kiosks and displays
• Robotics and automation systems
• Medical devices requiring non-contact operation
• Gaming and virtual reality systems

The Grove Smart IR Gesture Sensor is built for ease of use and integration into various projects. Below are its key technical details:

The Grove Smart IR Gesture Sensor uses a standard Grove 4-pin interface. Below is the pin configuration:

1. Connect the Sensor to a Microcontroller:

   • Use a Grove Base Shield to connect the sensor to an Arduino UNO or other compatible microcontroller.
   • Plug the sensor into an I2C port on the shield.

2. Power the Circuit:

   • Ensure the microcontroller is powered with a 3.3V or 5V supply, as required by the sensor.

3. Install Required Libraries:

   • Download and install the Seeed_Gesture library from the Arduino Library Manager or the Seeed Studio GitHub repository.

4. Write and Upload Code:

   • Use the example code provided below to test the sensor and detect gestures.

#include <Wire.h>
#include "Seeed_Gesture.h"

// Initialize the gesture sensor
Gesture gestureSensor;

void setup() {
  Serial.begin(9600); // Start serial communication at 9600 baud
  if (gestureSensor.init()) {
    Serial.println("Gesture sensor initialized successfully!");
  } else {
    Serial.println("Failed to initialize gesture sensor. Check connections.");
    while (1); // Halt execution if initialization fails
  }
}

void loop() {
  // Read the detected gesture
  int gesture = gestureSensor.readGesture();

  // Print the detected gesture to the serial monitor
  switch (gesture) {
    case GES_UP:
      Serial.println("Gesture: Up");
      break;
    case GES_DOWN:
      Serial.println("Gesture: Down");
      break;
    case GES_LEFT:
      Serial.println("Gesture: Left");
      break;
    case GES_RIGHT:
      Serial.println("Gesture: Right");
      break;
    case GES_FORWARD:
      Serial.println("Gesture: Forward");
      break;
    case GES_BACKWARD:
      Serial.println("Gesture: Backward");
      break;
    default:
      Serial.println("No gesture detected.");
      break;
  }

  delay(100); // Add a small delay to avoid overwhelming the serial monitor
}

• Ambient Light: Avoid using the sensor in environments with excessive IR interference, such as direct sunlight or near heat sources.
• Distance and Angle: Ensure gestures are performed within the detection range (0 to 30 cm) and at an appropriate angle for accurate recognition.
• Power Supply: Use a stable power source to prevent erratic behavior or false readings.
• Library Updates: Regularly check for updates to the Seeed_Gesture library to ensure compatibility and access to the latest features.

1. Sensor Not Detected:

   • Cause: Loose or incorrect connections.
   • Solution: Verify that the sensor is securely connected to the I2C port and that the wiring matches the pin configuration.

2. No Gesture Detected:

   • Cause: Gesture performed outside the detection range or at an incorrect angle.
   • Solution: Ensure gestures are within 0 to 30 cm of the sensor and performed directly in front of it.

3. Erratic or False Readings:

   • Cause: Excessive ambient IR light or unstable power supply.
   • Solution: Reduce ambient IR interference and use a stable power source.

4. Library Initialization Fails:

   • Cause: Missing or outdated library.
   • Solution: Install or update the Seeed_Gesture library from the Arduino Library Manager.

Q: Can the sensor detect multiple gestures simultaneously?
A: No, the sensor is designed to detect one gesture at a time.

Q: Is the sensor compatible with Raspberry Pi?
A: Yes, the sensor can be used with Raspberry Pi via the I2C interface, but additional setup may be required.

Q: What is the maximum detection range?
A: The sensor can detect gestures up to 30 cm away.

Q: Can the sensor work in complete darkness?
A: Yes, the sensor uses infrared light and does not rely on visible light for operation.

By following this documentation, you can effectively integrate the Grove Smart IR Gesture Sensor into your projects and troubleshoot common issues with ease.
