How to Use RELAY 2CHANNEL 2: Examples, Pinouts, and Specs

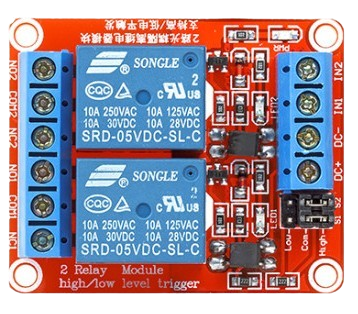

The RELAY 2CHANNEL 2 is a relay module with two independent channels, enabling the control of two separate circuits using a single control signal. This module is designed to interface with low-power control systems, such as microcontrollers, to switch high voltage or high current loads safely. It is widely used in automation, home appliances, industrial control systems, and DIY projects.

• Home automation (e.g., controlling lights, fans, or appliances)
• Industrial control systems
• Robotics and IoT projects
• Switching high-power devices using low-power control signals

• Operating Voltage: 5V DC
• Trigger Voltage: 3.3V to 5V (compatible with most microcontrollers)
• Relay Type: Electromechanical
• Maximum Load (per channel):
  • AC: 250V at 10A
  • DC: 30V at 10A
• Channels: 2
• Isolation: Optocoupler isolation for safe operation
• Dimensions: 50mm x 40mm x 18mm (approx.)
• Indicator LEDs: Onboard LEDs for each channel to indicate relay status

1. Power the Module:
   • Connect the VCC pin to a 5V DC power supply and the GND pin to the ground.
2. Connect the Control Signals:
   • Connect the IN1 and IN2 pins to the digital output pins of a microcontroller (e.g., Arduino).
3. Connect the Load:
   • For each channel, connect the load to the COM terminal and either the NO or NC terminal, depending on the desired default state of the load.
4. Control the Relays:
   • Send a HIGH signal (3.3V or 5V) to the IN1 or IN2 pin to activate the corresponding relay and switch the load.

• Ensure the load does not exceed the maximum current and voltage ratings of the relay.
• Use proper insulation and safety precautions when working with high voltage or high current loads.
• Avoid switching inductive loads (e.g., motors) without a flyback diode to prevent damage to the relay.

Below is an example code to control two relays using an Arduino UNO:

// Define the pins connected to the relay module
const int relay1Pin = 7; // IN1 connected to digital pin 7
const int relay2Pin = 8; // IN2 connected to digital pin 8

void setup() {
  // Set relay pins as OUTPUT
  pinMode(relay1Pin, OUTPUT);
  pinMode(relay2Pin, OUTPUT);

  // Initialize relays to OFF state
  digitalWrite(relay1Pin, LOW); // Relay 1 OFF
  digitalWrite(relay2Pin, LOW); // Relay 2 OFF
}

void loop() {
  // Turn Relay 1 ON and Relay 2 OFF
  digitalWrite(relay1Pin, HIGH); // Relay 1 ON
  digitalWrite(relay2Pin, LOW);  // Relay 2 OFF
  delay(2000); // Wait for 2 seconds

  // Turn Relay 1 OFF and Relay 2 ON
  digitalWrite(relay1Pin, LOW);  // Relay 1 OFF
  digitalWrite(relay2Pin, HIGH); // Relay 2 ON
  delay(2000); // Wait for 2 seconds
}

• The onboard LEDs will light up when the corresponding relay is activated.
• Use external power for the relay module if the microcontroller cannot supply sufficient current.

1. Relays Not Activating:

   • Ensure the VCC and GND pins are properly connected to a 5V power supply.
   • Verify that the control signals (IN1 and IN2) are receiving the correct voltage (3.3V to 5V).

2. Load Not Switching:

   • Check the wiring of the load to the COM, NO, or NC terminals.
   • Confirm that the load does not exceed the relay's maximum ratings.

3. Microcontroller Resetting:

   • The relay module may draw too much current. Use an external power supply for the relay module.

4. Relay Clicking but No Load Switching:

   • Verify the load connections and ensure the load is functional.
   • Check for loose or incorrect wiring.

Q: Can I use this module with a 3.3V microcontroller like ESP32?
A: Yes, the module is compatible with 3.3V control signals, but ensure the VCC pin is powered with 5V.

Q: Can I control AC and DC loads simultaneously?
A: Yes, as long as each load is connected to a separate channel and does not exceed the relay's ratings.

Q: Do I need a flyback diode for inductive loads?
A: Yes, a flyback diode is recommended to protect the relay from voltage spikes caused by inductive loads.

Q: Can I use this module to control a motor?
A: Yes, but ensure the motor's current and voltage are within the relay's specifications, and use a flyback diode for protection.

This concludes the documentation for the RELAY 2CHANNEL 2 module.
