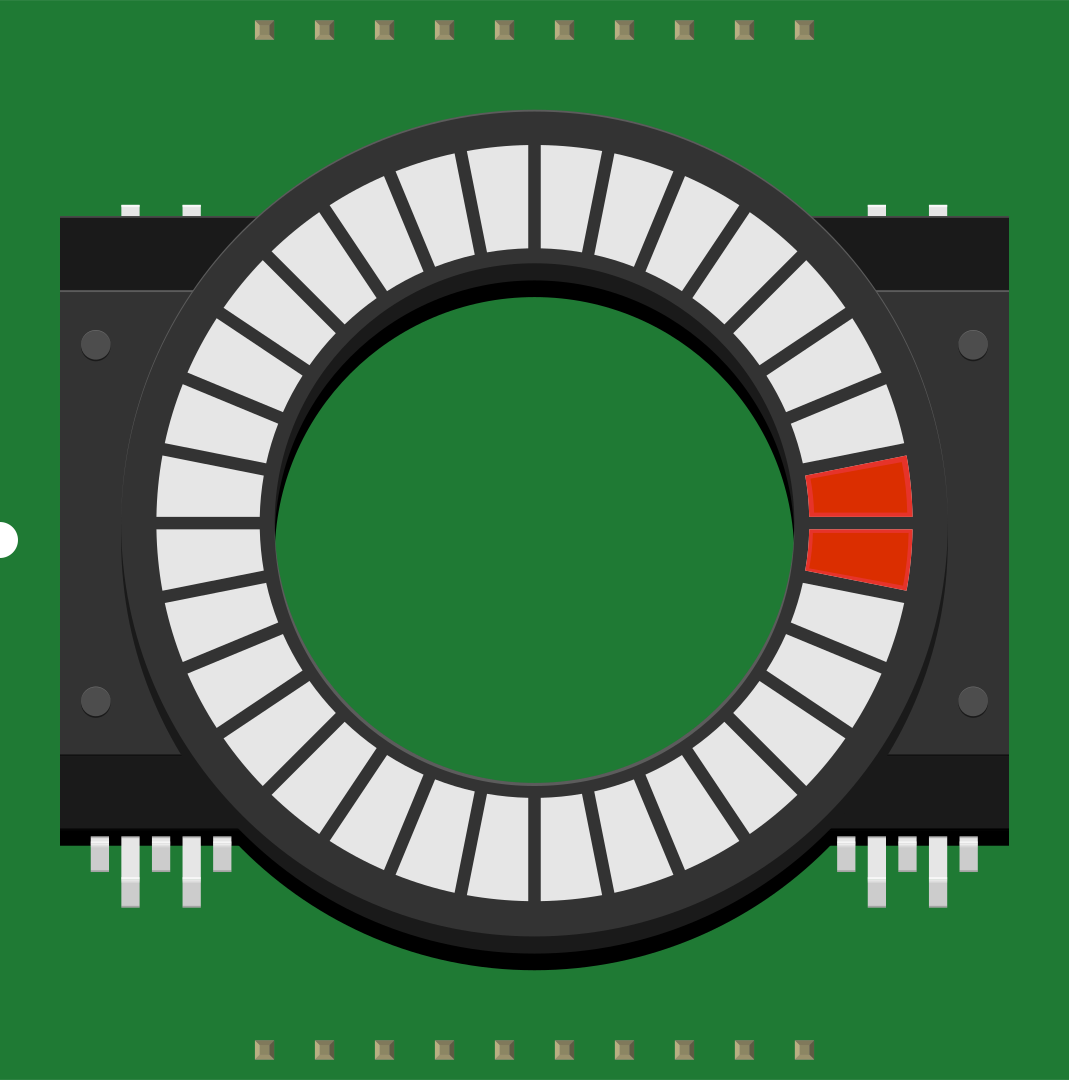

The LED_RING (Manufacturer Part ID: COM-10595) by SparkFun Electronics is a circular arrangement of light-emitting diodes (LEDs) designed for versatile lighting applications. Each LED in the ring is capable of producing a wide range of colors and effects, making it ideal for decorative lighting, status indicators, or visual displays. The compact and modular design allows for easy integration into various projects, from hobbyist builds to professional installations.

• Decorative lighting for homes, events, or installations
• Visual indicators for electronic devices
• Interactive displays and animations
• Wearable electronics
• Robotics and automation systems

The following table outlines the key technical details of the LED_RING:

The LED_RING has three main pins for operation. The table below describes each pin:

1. Power Supply: Connect the VCC pin to a 5V DC power source and the GND pin to ground.
2. Data Input: Use a microcontroller (e.g., Arduino UNO) to send data signals to the DIN pin. Ensure the microcontroller shares a common ground with the LED_RING.
3. Resistor and Capacitor: For stable operation, place a 330Ω resistor in series with the DIN pin and a 1000µF capacitor across VCC and GND.
4. Programming: Use a library like Adafruit NeoPixel to control the LEDs. This library simplifies the process of setting colors and creating animations.

• Power Requirements: Ensure your power supply can handle the total current draw. For 16 LEDs at full brightness, the current can reach approximately 960mA.
• Heat Management: Avoid running the LEDs at maximum brightness for extended periods to prevent overheating.
• Signal Integrity: Keep the data line as short as possible to avoid signal degradation. If the data line is long, consider using a level shifter to maintain signal quality.

Below is an example code snippet to control the LED_RING using the Adafruit NeoPixel library:

#include <Adafruit_NeoPixel.h>

// Define the number of LEDs in the ring
#define NUM_LEDS 16

// Define the pin connected to the DIN pin of the LED_RING
#define DATA_PIN 6

// Create a NeoPixel object
Adafruit_NeoPixel ledRing = Adafruit_NeoPixel(NUM_LEDS, DATA_PIN, NEO_GRB + NEO_KHZ800);

void setup() {
  // Initialize the LED ring
  ledRing.begin();
  ledRing.show(); // Turn off all LEDs initially
}

void loop() {
  // Example: Cycle through colors on the LED ring
  for (int i = 0; i < NUM_LEDS; i++) {
    ledRing.setPixelColor(i, ledRing.Color(255, 0, 0)); // Set LED to red
    ledRing.show(); // Update the LED ring
    delay(100); // Wait 100ms
  }

  for (int i = 0; i < NUM_LEDS; i++) {
    ledRing.setPixelColor(i, ledRing.Color(0, 255, 0)); // Set LED to green
    ledRing.show(); // Update the LED ring
    delay(100); // Wait 100ms
  }

  for (int i = 0; i < NUM_LEDS; i++) {
    ledRing.setPixelColor(i, ledRing.Color(0, 0, 255)); // Set LED to blue
    ledRing.show(); // Update the LED ring
    delay(100); // Wait 100ms
  }
}

• Install the Adafruit NeoPixel library via the Arduino Library Manager before uploading the code.
• Adjust the DATA_PIN and NUM_LEDS values as needed for your setup.

1. LEDs Not Lighting Up

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check all connections, ensure the power supply provides 5V, and verify the ground is shared between the microcontroller and the LED_RING.

2. Flickering or Incorrect Colors

   • Cause: Signal degradation or noise on the data line.
   • Solution: Add a 330Ω resistor in series with the DIN pin and keep the data line short. Use a level shifter if the microcontroller operates at 3.3V.

3. Overheating

   • Cause: LEDs running at maximum brightness for extended periods.
   • Solution: Reduce brightness in your code or limit the number of LEDs lit simultaneously.

• Can I chain multiple LED_RINGs together? Yes, connect the DOUT pin of one LED_RING to the DIN pin of the next. Ensure the power supply can handle the total current draw.

• What is the maximum distance between the microcontroller and the LED_RING? For reliable operation, keep the data line under 1 meter. Use a level shifter for longer distances.

• Can I power the LED_RING with a battery? Yes, use a 5V battery pack capable of supplying sufficient current for your application.

By following this documentation, you can effectively integrate the LED_RING into your projects and troubleshoot common issues.
