How to Use Raspberry Pi 4: Examples, Pinouts, and Specs

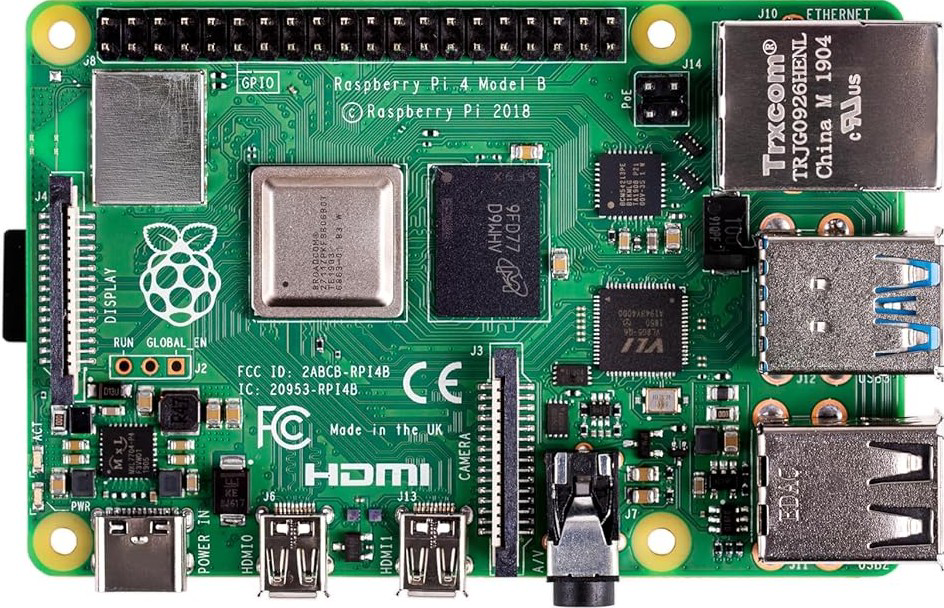

Image of Raspberry Pi 4
Cirkit Designer LogoDesign with Raspberry Pi 4 in Cirkit Designer

Introduction

The Raspberry Pi 4 (Manufacturer Part ID: RPI4-MODBP-4GB) is a compact, affordable single-board computer developed by Raspberry Pi. It features a powerful quad-core processor, multiple USB ports, dual micro-HDMI outputs, and support for various operating systems. With its versatile design, the Raspberry Pi 4 is ideal for a wide range of applications, including educational projects, IoT development, home automation, media centers, and prototyping.

Explore Projects Built with Raspberry Pi 4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
Image of smart_power_meter: A project utilizing Raspberry Pi 4 in a practical application
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
Image of VisionTool: A project utilizing Raspberry Pi 4 in a practical application
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B-Based Smart Surveillance System with Audio Capture and Ultrasonic Sensing
Image of pranav: A project utilizing Raspberry Pi 4 in a practical application
This circuit features a Raspberry Pi 4B as the central controller, interfacing with a variety of peripherals. It includes a PAM8406 digital audio amplifier connected to a speaker for audio output, an Adafruit MAX9814 microphone amplifier for audio input, and a TTL Serial JPEG Camera for image capture. Additionally, an HC-SR04 ultrasonic sensor is connected for distance measurement. The Raspberry Pi manages these components and likely processes audio, image, and distance data for applications such as a smart assistant or security system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Raspberry Pi 4B Powered Projector System with HDMI to VGA Conversion
Image of raspberry to projector: A project utilizing Raspberry Pi 4 in a practical application
This circuit connects a Raspberry Pi 4B to a projector via an HDMI to VGA converter, allowing the Raspberry Pi to output video and audio to the projector. The Raspberry Pi is powered by a 5V power adapter, which is connected to an AC wall plug point.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Raspberry Pi 4

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of smart_power_meter: A project utilizing Raspberry Pi 4 in a practical application
Raspberry Pi 4B-Controlled Relay System with Environmental Sensing and Power Monitoring
This circuit is designed to interface a Raspberry Pi 4B with various sensors and output devices. It includes a 4-channel relay for controlling external loads, an ADS1115 for analog-to-digital conversion of signals from a current sensor and a ZMPT101B voltage sensor, a DHT11 for temperature and humidity readings, and a 0.96" OLED display for data output. The Raspberry Pi 4B serves as the central controller, managing data acquisition from the sensors, processing the information, and driving the relay and display based on the sensor inputs and programmed logic.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of VisionTool: A project utilizing Raspberry Pi 4 in a practical application
Raspberry Pi 4B-Based Smart Surveillance System with GPS and Ultrasonic Sensing
This circuit features a Raspberry Pi 4B as the central processing unit, interfacing with an Arducam camera module, an HC-SR04 ultrasonic sensor, a GPS NEO 6M module, and a speaker. The Raspberry Pi manages image capture, distance measurement, GPS data reception, and audio output. Power is supplied to the components from a 2000mAh battery, and the Raspberry Pi facilitates communication and control over the I2C, GPIO, and serial interfaces.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pranav: A project utilizing Raspberry Pi 4 in a practical application
Raspberry Pi 4B-Based Smart Surveillance System with Audio Capture and Ultrasonic Sensing
This circuit features a Raspberry Pi 4B as the central controller, interfacing with a variety of peripherals. It includes a PAM8406 digital audio amplifier connected to a speaker for audio output, an Adafruit MAX9814 microphone amplifier for audio input, and a TTL Serial JPEG Camera for image capture. Additionally, an HC-SR04 ultrasonic sensor is connected for distance measurement. The Raspberry Pi manages these components and likely processes audio, image, and distance data for applications such as a smart assistant or security system.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of raspberry to projector: A project utilizing Raspberry Pi 4 in a practical application
Raspberry Pi 4B Powered Projector System with HDMI to VGA Conversion
This circuit connects a Raspberry Pi 4B to a projector via an HDMI to VGA converter, allowing the Raspberry Pi to output video and audio to the projector. The Raspberry Pi is powered by a 5V power adapter, which is connected to an AC wall plug point.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Learning and Education: Teaching programming, Linux, and hardware concepts.
  • IoT and Automation: Building smart home devices and IoT prototypes.
  • Media Centers: Running media server software like Kodi or Plex.
  • Retro Gaming: Emulating classic gaming consoles.
  • AI and Machine Learning: Running lightweight AI models and edge computing tasks.

Technical Specifications

Key Technical Details

Specification Details
Processor Quad-core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz
Memory 4GB LPDDR4 SDRAM
USB Ports 2 × USB 3.0, 2 × USB 2.0
Video Output 2 × micro-HDMI ports (up to 4K resolution)
Networking Gigabit Ethernet, 802.11ac Wi-Fi, Bluetooth 5.0
GPIO 40-pin GPIO header
Storage MicroSD card slot
Power Supply 5V/3A via USB-C
Operating System Support Raspberry Pi OS, Ubuntu, and other Linux-based distributions
Dimensions 85.6mm × 56.5mm × 17mm

Pin Configuration and Descriptions

The Raspberry Pi 4 features a 40-pin GPIO header for interfacing with external components. Below is a summary of the pin configuration:

Pin Number Pin Name Description
1 3.3V Power 3.3V power supply
2 5V Power 5V power supply
3 GPIO2 (SDA1) I2C Data
4 5V Power 5V power supply
5 GPIO3 (SCL1) I2C Clock
6 Ground Ground
7 GPIO4 General-purpose I/O
8 GPIO14 (TXD0) UART Transmit
9 Ground Ground
10 GPIO15 (RXD0) UART Receive
... ... ...
39 Ground Ground
40 GPIO21 General-purpose I/O

For a complete GPIO pinout, refer to the official Raspberry Pi documentation.


Usage Instructions

Using the Raspberry Pi 4 in a Circuit

  1. Powering the Raspberry Pi 4:

    • Use a 5V/3A USB-C power supply to power the board.
    • Ensure the power supply is reliable to avoid voltage drops.
  2. Connecting Peripherals:

    • Attach a micro-HDMI cable to one of the HDMI ports for video output.
    • Connect a USB keyboard and mouse to the USB ports.
    • Insert a microSD card with a compatible operating system (e.g., Raspberry Pi OS).
  3. Using GPIO Pins:

    • Use the 40-pin GPIO header to connect sensors, LEDs, or other components.
    • Be cautious of voltage levels; GPIO pins operate at 3.3V logic.
  4. Networking:

    • Connect to the internet via Ethernet or Wi-Fi for software updates and remote access.

Important Considerations

  • Heat Management: The Raspberry Pi 4 can get warm under heavy loads. Use a heatsink or fan for cooling.
  • Static Protection: Handle the board carefully to avoid static discharge damage.
  • Power Supply: Use an official or high-quality power supply to ensure stable operation.

Example: Blinking an LED with GPIO and Python

The following example demonstrates how to blink an LED connected to GPIO pin 17 using Python:


Import the necessary libraries

import RPi.GPIO as GPIO import time

Set up GPIO mode and pin

GPIO.setmode(GPIO.BCM) # Use Broadcom pin numbering GPIO.setup(17, GPIO.OUT) # Set GPIO 17 as an output pin

try: while True: GPIO.output(17, GPIO.HIGH) # Turn the LED on time.sleep(1) # Wait for 1 second GPIO.output(17, GPIO.LOW) # Turn the LED off time.sleep(1) # Wait for 1 second except KeyboardInterrupt: # Clean up GPIO settings on exit GPIO.cleanup()


**Steps to Run the Code**:
1. Connect an LED to GPIO pin 17 with a 330-ohm resistor in series.
2. Save the code to a file (e.g., `blink.py`).
3. Run the script using `sudo python3 blink.py`.

---

Troubleshooting and FAQs

Common Issues and Solutions

  1. The Raspberry Pi 4 does not boot:

    • Ensure the microSD card is properly inserted and contains a valid operating system.
    • Check the power supply for sufficient voltage and current.
  2. Overheating:

    • Use a heatsink or fan to improve cooling.
    • Avoid placing the Raspberry Pi in an enclosed space without ventilation.
  3. No HDMI Output:

    • Verify the HDMI cable is securely connected.
    • Ensure the correct HDMI port is used (HDMI0 is the primary port).
    • Check the display settings in the operating system.
  4. GPIO Pins Not Working:

    • Double-check the pin connections and ensure the correct pin numbering is used in the code.
    • Verify that no short circuits or incorrect voltage levels are applied to the GPIO pins.

FAQs

  • Can I power the Raspberry Pi 4 via GPIO pins?

    • Yes, you can supply 5V to the 5V GPIO pins, but this bypasses the onboard voltage protection.
  • What operating systems are supported?

    • The Raspberry Pi 4 supports Raspberry Pi OS, Ubuntu, and other Linux-based distributions.
  • Can I connect multiple displays?

    • Yes, the Raspberry Pi 4 supports dual displays via its two micro-HDMI ports.
  • How do I enable SSH for remote access?

    • Create an empty file named ssh in the boot partition of the microSD card before the first boot.

By following this documentation, users can effectively utilize the Raspberry Pi 4 for a variety of projects and applications.
