How to Use LoRa Ra-02 SX1278 [Bill Ludwig]: Examples, Pinouts, and Specs

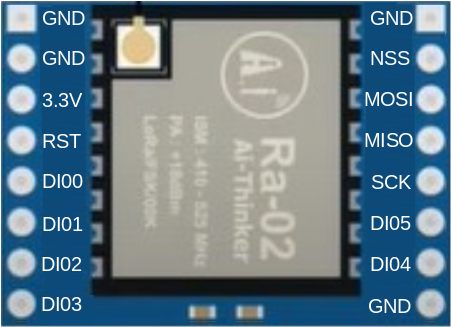

Image of LoRa Ra-02 SX1278 [Bill Ludwig]
Cirkit Designer LogoDesign with LoRa Ra-02 SX1278 [Bill Ludwig] in Cirkit Designer

Introduction

The LoRa Ra-02 SX1278 is a low-power, long-range transceiver module designed for wireless communication using LoRa (Long Range) modulation technology. This module operates in the 433 MHz frequency band and is capable of transmitting data over distances of several kilometers, making it ideal for Internet of Things (IoT) applications. Its robust design and low power consumption make it suitable for remote sensing, environmental monitoring, smart agriculture, and other applications requiring reliable long-range communication.

Explore Projects Built with LoRa Ra-02 SX1278 [Bill Ludwig]

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP8266 and LoRa SX1278 Based Wireless Communication Module
Image of Receiver: A project utilizing LoRa Ra-02 SX1278 [Bill Ludwig] in a practical application
This circuit integrates a LoRa Ra-02 SX1278 module with an ESP8266 NodeMCU to enable long-range wireless communication. The ESP8266 NodeMCU handles the control and data processing, while the LoRa module provides the capability to transmit and receive data over long distances using LoRa technology.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and LoRa SX1278 Wireless Communication Module
Image of CSE216L Project Livestock Health Monitoring Secondary Circuit: A project utilizing LoRa Ra-02 SX1278 [Bill Ludwig] in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a LoRa Ra-02 SX1278 module, enabling wireless communication. The Arduino handles the SPI communication with the LoRa module, with connections for SCK, MISO, MOSI, NSS, and RST, as well as power and ground connections. This setup is typically used for long-range, low-power wireless data transmission.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and LoRa SX1278 Wireless Communication Module
Image of LoRa_wiring: A project utilizing LoRa Ra-02 SX1278 [Bill Ludwig] in a practical application
This circuit connects an Arduino UNO with a LoRa Ra-02 SX1278 module to enable long-range communication capabilities. The Arduino is configured to interface with the LoRa module via SPI (Serial Peripheral Interface), using digital pins D13 (SCK), D12 (MISO), D11 (MOSI), and D10 (NSS) for the clock, master-in-slave-out, master-out-slave-in, and slave select functions, respectively. Additional connections include a reset line to D9 and an interrupt line to D4, which are typically used for module reset and interrupt-driven event handling.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and LoRa SX1278 Based Wireless Communication Module
Image of Esp 32 as Receiver or Sender: A project utilizing LoRa Ra-02 SX1278 [Bill Ludwig] in a practical application
This circuit integrates an ESP32 microcontroller with a LoRa Ra-02 SX1278 module to enable long-range wireless communication. The ESP32 handles the control and data processing, while the LoRa module provides the communication link. The connections include SPI interface and control signals between the ESP32 and the LoRa module, as well as shared power and ground lines.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with LoRa Ra-02 SX1278 [Bill Ludwig]

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Receiver: A project utilizing LoRa Ra-02 SX1278 [Bill Ludwig] in a practical application
ESP8266 and LoRa SX1278 Based Wireless Communication Module
This circuit integrates a LoRa Ra-02 SX1278 module with an ESP8266 NodeMCU to enable long-range wireless communication. The ESP8266 NodeMCU handles the control and data processing, while the LoRa module provides the capability to transmit and receive data over long distances using LoRa technology.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of CSE216L Project Livestock Health Monitoring Secondary Circuit: A project utilizing LoRa Ra-02 SX1278 [Bill Ludwig] in a practical application
Arduino Nano and LoRa SX1278 Wireless Communication Module
This circuit consists of an Arduino Nano microcontroller connected to a LoRa Ra-02 SX1278 module, enabling wireless communication. The Arduino handles the SPI communication with the LoRa module, with connections for SCK, MISO, MOSI, NSS, and RST, as well as power and ground connections. This setup is typically used for long-range, low-power wireless data transmission.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LoRa_wiring: A project utilizing LoRa Ra-02 SX1278 [Bill Ludwig] in a practical application
Arduino UNO and LoRa SX1278 Wireless Communication Module
This circuit connects an Arduino UNO with a LoRa Ra-02 SX1278 module to enable long-range communication capabilities. The Arduino is configured to interface with the LoRa module via SPI (Serial Peripheral Interface), using digital pins D13 (SCK), D12 (MISO), D11 (MOSI), and D10 (NSS) for the clock, master-in-slave-out, master-out-slave-in, and slave select functions, respectively. Additional connections include a reset line to D9 and an interrupt line to D4, which are typically used for module reset and interrupt-driven event handling.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Esp 32 as Receiver or Sender: A project utilizing LoRa Ra-02 SX1278 [Bill Ludwig] in a practical application
ESP32 and LoRa SX1278 Based Wireless Communication Module
This circuit integrates an ESP32 microcontroller with a LoRa Ra-02 SX1278 module to enable long-range wireless communication. The ESP32 handles the control and data processing, while the LoRa module provides the communication link. The connections include SPI interface and control signals between the ESP32 and the LoRa module, as well as shared power and ground lines.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT Networks: Remote monitoring and control of devices.
  • Smart Agriculture: Soil moisture monitoring, weather stations, and livestock tracking.
  • Environmental Monitoring: Air quality sensors, water level monitoring, and weather data collection.
  • Home Automation: Wireless control of appliances and security systems.
  • Industrial Automation: Machine-to-machine communication in factories and warehouses.

Technical Specifications

Key Technical Details

Parameter Value
Frequency Range 433 MHz
Modulation Technique LoRa (Long Range)
Communication Range Up to 10 km (line of sight)
Operating Voltage 1.8V to 3.7V
Operating Current 10.8 mA (transmit), 10.3 mA (receive)
Sleep Current < 200 nA
Data Rate 0.018 kbps to 37.5 kbps
Sensitivity -148 dBm
Output Power Up to +20 dBm
Operating Temperature -40°C to +85°C
Dimensions 17.8 mm x 16.5 mm x 2.3 mm

Pin Configuration and Descriptions

The LoRa Ra-02 SX1278 module has 16 pins. Below is the pinout and description:

Pin Number Pin Name Description
1 GND Ground connection.
2 DIO5 Digital I/O pin 5.
3 DIO4 Digital I/O pin 4.
4 DIO3 Digital I/O pin 3.
5 DIO2 Digital I/O pin 2.
6 DIO1 Digital I/O pin 1.
7 DIO0 Digital I/O pin 0.
8 NSS Chip Select (active low).
9 MISO Master In Slave Out (SPI data output).
10 MOSI Master Out Slave In (SPI data input).
11 SCK Serial Clock (SPI clock input).
12 RESET Reset pin (active low).
13 3.3V Power supply (3.3V).
14 ANT Antenna connection.
15 GND Ground connection.
16 GND Ground connection.

Usage Instructions

How to Use the Component in a Circuit

  1. Power Supply: Connect the 3.3V pin to a regulated 3.3V power source and the GND pins to ground.
  2. SPI Communication: Connect the MISO, MOSI, SCK, and NSS pins to the corresponding SPI pins on your microcontroller.
  3. Antenna: Attach a 433 MHz antenna to the ANT pin for optimal signal transmission and reception.
  4. Reset: Use the RESET pin to initialize the module. Pull it low momentarily to reset the module.
  5. Digital I/O Pins: Use the DIO0 to DIO5 pins for interrupt handling and other module-specific functions.

Important Considerations and Best Practices

  • Power Supply: Ensure a stable 3.3V power supply. Using a higher voltage may damage the module.
  • Antenna Placement: Place the antenna in an open area, away from metal objects, to maximize range.
  • SPI Configuration: Configure the SPI interface on your microcontroller to match the module's requirements (e.g., clock polarity and phase).
  • Heat Dissipation: Avoid overheating the module by ensuring proper ventilation, especially during high-power transmission.
  • Regulatory Compliance: Verify that the 433 MHz frequency band is legal for use in your region.

Example Code for Arduino UNO

Below is an example of how to interface the LoRa Ra-02 SX1278 with an Arduino UNO using the LoRa library:

#include <SPI.h>
#include <LoRa.h>

// Define LoRa module pins
#define NSS 10    // Chip Select
#define RESET 9   // Reset pin
#define DIO0 2    // DIO0 pin

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  while (!Serial);

  Serial.println("Initializing LoRa module...");

  // Initialize LoRa module
  LoRa.setPins(NSS, RESET, DIO0); // Set SPI pins
  if (!LoRa.begin(433E6)) {       // Initialize at 433 MHz
    Serial.println("LoRa initialization failed!");
    while (1);
  }

  Serial.println("LoRa initialized successfully!");
}

void loop() {
  // Send a test message
  Serial.println("Sending message...");
  LoRa.beginPacket();
  LoRa.print("Hello, LoRa!");
  LoRa.endPacket();

  delay(5000); // Wait 5 seconds before sending the next message
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Module Not Responding:

    • Cause: Incorrect wiring or power supply issues.
    • Solution: Double-check all connections and ensure a stable 3.3V power supply.
  2. Poor Communication Range:

    • Cause: Improper antenna placement or interference.
    • Solution: Use a high-quality 433 MHz antenna and place it in an open area, away from obstacles.
  3. SPI Communication Fails:

    • Cause: Incorrect SPI configuration or wiring.
    • Solution: Verify the SPI settings (clock polarity, phase) and ensure proper connections.
  4. Overheating:

    • Cause: Prolonged high-power transmission.
    • Solution: Reduce transmission power or ensure adequate ventilation.

FAQs

  • Q: Can I use the module with a 5V microcontroller?

    • A: Yes, but you must use a level shifter to convert the 5V logic to 3.3V for the module.
  • Q: What is the maximum data rate supported?

    • A: The module supports data rates up to 37.5 kbps.
  • Q: Can I use multiple modules in the same network?

    • A: Yes, you can configure multiple modules with unique addresses for communication.
  • Q: Is the module compatible with other LoRa devices?

    • A: Yes, as long as they operate on the same frequency and use the LoRa protocol.

This concludes the documentation for the LoRa Ra-02 SX1278 module.
