Introduction

The 6mm Trimmer Potentiometer is a small, adjustable resistor designed for fine-tuning circuit parameters. It features a screw or slider mechanism that allows precise resistance adjustments. This component is commonly used in calibration, tuning, and setting reference voltages in electronic circuits. Its compact size makes it ideal for applications where space is limited.

Explore Projects Built with 6mm Trimmer Potentiometer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino UNO Analog Input with Trimmer Potentiometer
Image of Potenciometer: A project utilizing 6mm Trimmer Potentiometer in a practical application
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer's adjustable output is fed into the Arduino's analog input A0 for voltage measurement, enabling the microcontroller to monitor or control an analog parameter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO Based Variable Voltage Divider
Image of bcu_lesson2: A project utilizing 6mm Trimmer Potentiometer in a practical application
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer is configured as a voltage divider with one end connected to the Arduino's 5V supply, the other end to GND, and the wiper connected to analog input A5. The purpose of this circuit is to provide an adjustable voltage input to the Arduino for analog sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO with Trimmer Potentiometer Analog Input Reader

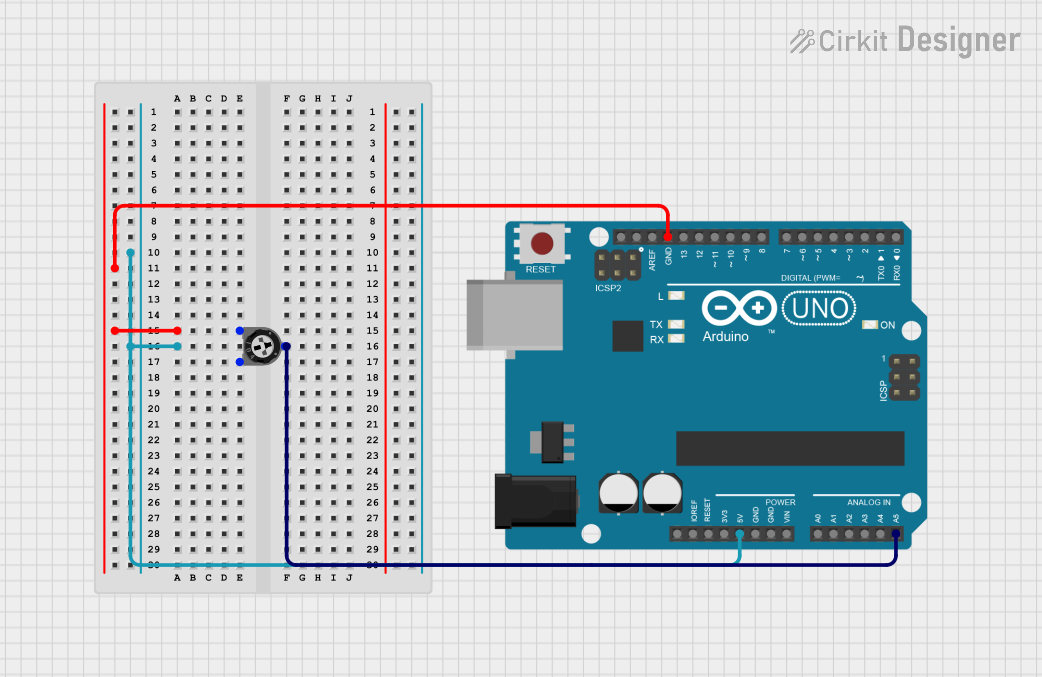

Image of wykres cos: A project utilizing 6mm Trimmer Potentiometer in a practical application
This circuit consists of an Arduino UNO connected to a trimmer potentiometer. The potentiometer's wiper is connected to the Arduino's A5 analog input pin, allowing the microcontroller to read the voltage level as the potentiometer is adjusted. The provided code configures the Arduino to read the analog value from the A5 pin, print it to the serial monitor, and repeat this process with a delay of 200 milliseconds between readings.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino 101 Analog Input Control with Trimmer Potentiometer
Image of Analog read potentiometer: A project utilizing 6mm Trimmer Potentiometer in a practical application
This circuit features an Arduino 101 connected to a trimmer potentiometer. The potentiometer is used as a voltage divider, with one end connected to the Arduino's VIN for power, the wiper connected to analog input A0 for variable voltage reading, and the other end connected to GND. This setup allows the Arduino to read the position of the potentiometer's wiper as an analog value.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 6mm Trimmer Potentiometer

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Potenciometer: A project utilizing 6mm Trimmer Potentiometer in a practical application
Arduino UNO Analog Input with Trimmer Potentiometer
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer's adjustable output is fed into the Arduino's analog input A0 for voltage measurement, enabling the microcontroller to monitor or control an analog parameter.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of bcu_lesson2: A project utilizing 6mm Trimmer Potentiometer in a practical application
Arduino UNO Based Variable Voltage Divider
This circuit features an Arduino UNO connected to a trimmer potentiometer. The potentiometer is configured as a voltage divider with one end connected to the Arduino's 5V supply, the other end to GND, and the wiper connected to analog input A5. The purpose of this circuit is to provide an adjustable voltage input to the Arduino for analog sensing.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of wykres cos: A project utilizing 6mm Trimmer Potentiometer in a practical application
Arduino UNO with Trimmer Potentiometer Analog Input Reader
This circuit consists of an Arduino UNO connected to a trimmer potentiometer. The potentiometer's wiper is connected to the Arduino's A5 analog input pin, allowing the microcontroller to read the voltage level as the potentiometer is adjusted. The provided code configures the Arduino to read the analog value from the A5 pin, print it to the serial monitor, and repeat this process with a delay of 200 milliseconds between readings.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Analog read potentiometer: A project utilizing 6mm Trimmer Potentiometer in a practical application
Arduino 101 Analog Input Control with Trimmer Potentiometer
This circuit features an Arduino 101 connected to a trimmer potentiometer. The potentiometer is used as a voltage divider, with one end connected to the Arduino's VIN for power, the wiper connected to analog input A0 for variable voltage reading, and the other end connected to GND. This setup allows the Arduino to read the position of the potentiometer's wiper as an analog value.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Calibration of sensors and measurement devices
  • Adjusting contrast in LCD displays
  • Setting reference voltages in analog circuits
  • Fine-tuning audio equipment
  • Prototyping and testing circuits

Technical Specifications

The following table outlines the key technical details of the 6mm Trimmer Potentiometer:

Parameter Value
Resistance Range 100 Ω to 1 MΩ (varies by model)
Tolerance ±10%
Power Rating 0.1 W to 0.5 W (depending on model)
Adjustment Type Screw or slider
Operating Voltage Up to 50 V
Operating Temperature -10°C to +70°C
Dimensions 6 mm x 6 mm x 4 mm (approx.)

Pin Configuration

The 6mm Trimmer Potentiometer typically has three pins. The table below describes their functions:

Pin Description
Pin 1 One end of the resistive track
Pin 2 Wiper (adjustable output, connected to the screw/slider)
Pin 3 The other end of the resistive track

Usage Instructions

How to Use the Component in a Circuit

  1. Identify the Pins: Locate the three pins of the potentiometer. Pin 1 and Pin 3 are the ends of the resistive track, while Pin 2 is the wiper.
  2. Connect the Pins:
    • For variable resistance: Connect Pin 1 and Pin 2 to your circuit. The resistance between these pins will vary as you adjust the screw or slider.
    • For voltage division: Connect Pin 1 to the input voltage, Pin 3 to ground, and Pin 2 to the output. The output voltage at Pin 2 will vary based on the adjustment.
  3. Adjust the Resistance: Use a small screwdriver to turn the screw or move the slider. Turning clockwise typically increases resistance between Pin 1 and Pin 2, while counterclockwise decreases it.

Important Considerations

  • Power Rating: Ensure the power dissipation across the potentiometer does not exceed its rated power.
  • Mechanical Stress: Avoid applying excessive force to the adjustment screw or slider to prevent damage.
  • Stability: For long-term stability, avoid frequent adjustments after calibration.
  • Mounting: Secure the potentiometer firmly on the PCB to prevent movement during operation.

Example: Using with Arduino UNO

The 6mm Trimmer Potentiometer can be used as a voltage divider to provide an adjustable input to an Arduino UNO. Below is an example:

Circuit Connections

  • Connect Pin 1 to 5V on the Arduino.
  • Connect Pin 3 to GND on the Arduino.
  • Connect Pin 2 (wiper) to an analog input pin (e.g., A0).

Arduino Code

// Example code to read the voltage from a 6mm Trimmer Potentiometer
// connected to an Arduino UNO analog pin.

const int potPin = A0; // Pin where the potentiometer wiper is connected
int potValue = 0;      // Variable to store the potentiometer reading

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
}

void loop() {
  potValue = analogRead(potPin); // Read the analog value (0-1023)

  // Convert the analog value to a voltage (assuming 5V reference)
  float voltage = potValue * (5.0 / 1023.0);

  // Print the voltage to the Serial Monitor
  Serial.print("Potentiometer Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(500); // Wait for 500ms before the next reading
}

Troubleshooting and FAQs

Common Issues

  1. No Change in Resistance:

    • Cause: The adjustment screw or slider may not be functioning properly.
    • Solution: Check for mechanical damage or replace the potentiometer.
  2. Unstable Output:

    • Cause: Loose connections or poor soldering.
    • Solution: Ensure all connections are secure and properly soldered.
  3. Overheating:

    • Cause: Exceeding the power rating of the potentiometer.
    • Solution: Verify the power dissipation and use a higher-rated potentiometer if necessary.
  4. Incorrect Voltage Output:

    • Cause: Miswiring or incorrect pin connections.
    • Solution: Double-check the pin configuration and wiring.

FAQs

Q: Can I use the 6mm Trimmer Potentiometer for high-current applications?
A: No, this component is designed for low-power applications. Exceeding its power rating can damage the potentiometer.

Q: How precise is the adjustment?
A: The precision depends on the model and the screw/slider mechanism. Most trimmer potentiometers offer fine adjustments suitable for calibration tasks.

Q: Can I use this potentiometer in outdoor environments?
A: The 6mm Trimmer Potentiometer is not typically rated for outdoor use. Consider using a sealed or weatherproof potentiometer for such applications.

Q: How do I clean a dirty or oxidized potentiometer?
A: Use a small amount of contact cleaner and gently rotate the screw or slider to remove dirt or oxidation. Avoid using excessive liquid.
