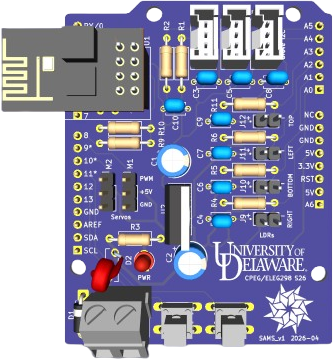

Image of Solar Alignment & Monitoring Shield
Cirkit Designer LogoDesign with Solar Alignment & Monitoring Shield in Cirkit Designer

Introduction

The Solar Alignment & Monitoring Shield is a specialized device designed to optimize the positioning of solar panels by monitoring their alignment with the sun. By ensuring that solar panels are always oriented to capture the maximum amount of sunlight, this shield significantly enhances energy efficiency and output. It integrates seamlessly with microcontrollers like the Arduino UNO, making it ideal for both DIY solar projects and professional solar tracking systems.
