How to Use PN532 NFC RFID Module: Examples, Pinouts, and Specs

The PN532 NFC RFID Module is a versatile and widely used component for Near Field Communication (NFC) and Radio Frequency Identification (RFID) applications. It enables wireless communication over short distances, making it ideal for a variety of tasks such as reading NFC tags, emulating NFC cards, and interacting with other NFC-enabled devices. The module supports multiple protocols, including ISO/IEC 14443 Type A and B, and is compatible with I2C, SPI, and UART interfaces, making it highly adaptable for integration into various projects.

• Contactless payment systems
• Access control and security systems
• Inventory management and asset tracking
• Smart posters and NFC-enabled marketing
• Peer-to-peer communication between NFC devices
• Embedded systems requiring short-range wireless communication

The PN532 NFC RFID Module is designed to provide robust and flexible NFC functionality. Below are its key technical details:

• Operating Voltage: 3.3V to 5V
• Communication Interfaces: I2C, SPI, UART
• Operating Frequency: 13.56 MHz
• Supported Protocols: ISO/IEC 14443 Type A and B, FeliCa, NFCIP-1 (NFC Peer-to-Peer)
• Maximum Communication Range: ~5 cm (depending on antenna and tag type)
• Current Consumption: ~50 mA (active mode)
• Dimensions: Typically 40mm x 40mm (varies by manufacturer)

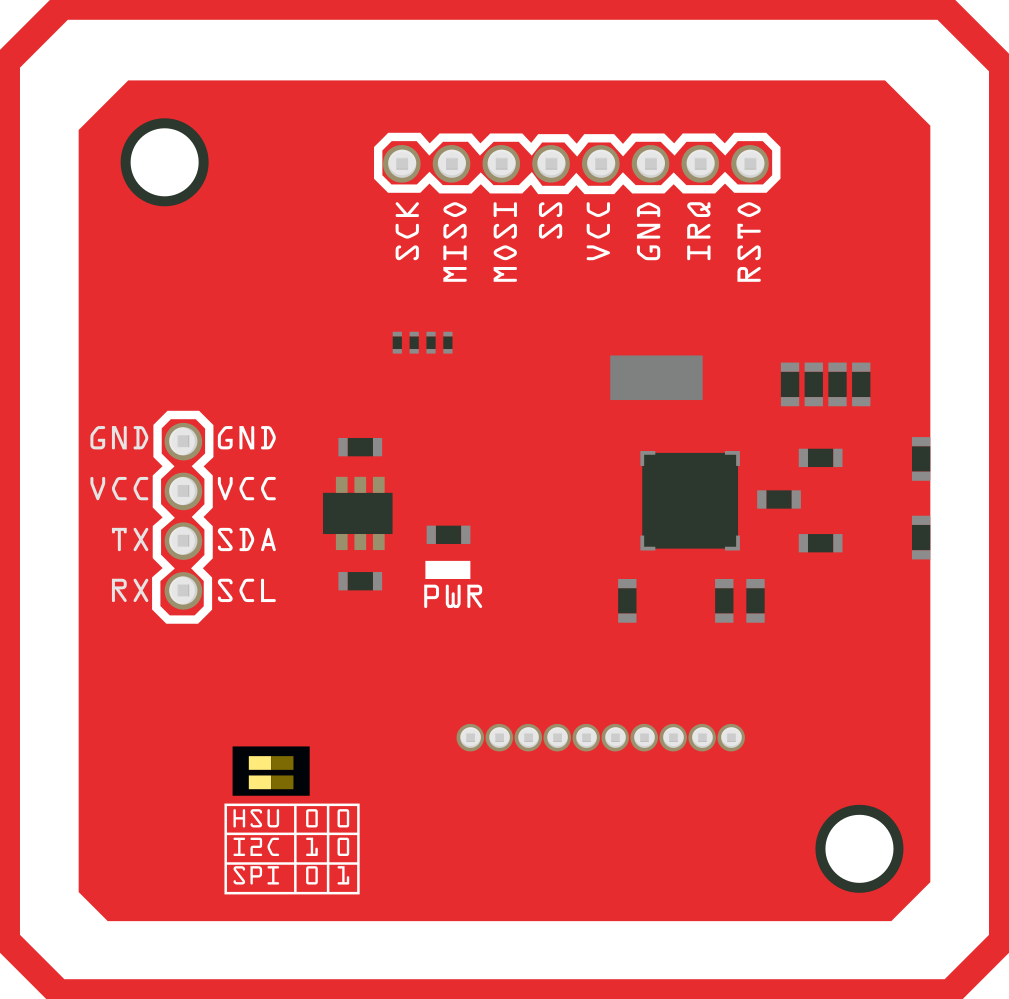

The PN532 module typically has the following pin layout:

Note: The exact pin configuration may vary slightly depending on the manufacturer. Always refer to the specific datasheet for your module.

The PN532 NFC RFID Module can be used in a variety of projects. Below are the steps to integrate and use the module effectively:

1. Power the Module: Connect the VCC pin to a 3.3V or 5V power source (depending on the module version) and the GND pin to ground.
2. Select Communication Interface:
   • For I2C: Connect the SDA and SCL pins to the corresponding pins on your microcontroller.
   • For SPI: Connect MOSI, MISO, SCK, and NSS/CS to the appropriate SPI pins on your microcontroller.
   • For UART: Connect RXD and TXD to the UART pins on your microcontroller.
3. Install Required Libraries: If using an Arduino, install the "Adafruit_PN532" library or a similar library for your platform.
4. Write Code: Use the library functions to initialize the module, configure the communication interface, and perform NFC/RFID operations.

• Ensure the module is powered with the correct voltage to avoid damage.
• Keep the antenna area clear of obstructions for optimal communication range.
• Use pull-up resistors on the I2C lines (SDA and SCL) if they are not already included on the module.
• Avoid placing the module near sources of electromagnetic interference, such as motors or high-frequency circuits.
• When using SPI or UART, ensure the baud rate and other communication parameters match between the module and the microcontroller.

Below is an example of how to use the PN532 module with an Arduino UNO via I2C:

#include <Wire.h>
#include <Adafruit_PN532.h>

// Define the I2C pins for the PN532 module
#define SDA_PIN 2
#define SCL_PIN 3

// Create an instance of the Adafruit_PN532 library
Adafruit_PN532 nfc(SDA_PIN, SCL_PIN);

void setup() {
  Serial.begin(9600); // Initialize serial communication
  Serial.println("Initializing PN532 module...");

  nfc.begin(); // Initialize the PN532 module

  // Check if the module is detected
  uint32_t versiondata = nfc.getFirmwareVersion();
  if (!versiondata) {
    Serial.println("PN532 not detected. Check connections.");
    while (1); // Halt execution
  }

  // Display firmware version
  Serial.print("Found PN532 with firmware version: ");
  Serial.println((versiondata >> 16) & 0xFF, HEX);

  // Configure the module to read passive targets (NFC tags)
  nfc.SAMConfig();
  Serial.println("PN532 ready to scan NFC tags.");
}

void loop() {
  Serial.println("Waiting for an NFC tag...");

  // Check for an NFC tag
  uint8_t success;
  uint8_t uid[] = { 0 };
  uint8_t uidLength;

  success = nfc.readPassiveTargetID(PN532_MIFARE_ISO14443A, uid, &uidLength);

  if (success) {
    Serial.println("NFC tag detected!");
    Serial.print("UID Length: "); Serial.println(uidLength);
    Serial.print("UID Value: ");
    for (uint8_t i = 0; i < uidLength; i++) {
      Serial.print(" 0x"); Serial.print(uid[i], HEX);
    }
    Serial.println();
    delay(1000); // Wait before scanning again
  } else {
    Serial.println("No NFC tag detected.");
  }

  delay(500); // Short delay before retrying
}

1. PN532 Not Detected:

   • Cause: Incorrect wiring or communication interface selection.
   • Solution: Double-check all connections and ensure the correct interface is selected in the code.

2. Short Communication Range:

   • Cause: Obstructions near the antenna or poor-quality NFC tags.
   • Solution: Clear the antenna area and use high-quality NFC tags.

3. Module Not Responding:

   • Cause: Incorrect power supply voltage or damaged module.
   • Solution: Verify the power supply voltage and check for physical damage.

4. Interference with Other Devices:

   • Cause: Electromagnetic interference from nearby components.
   • Solution: Relocate the module away from sources of interference.

• Q: Can the PN532 module emulate an NFC card?
  A: Yes, the PN532 supports card emulation mode for certain NFC protocols.

• Q: What is the maximum range of the PN532 module?
  A: The typical range is around 5 cm, depending on the antenna and tag type.

• Q: Can I use the PN532 with a Raspberry Pi?
  A: Yes, the PN532 is compatible with Raspberry Pi via I2C, SPI, or UART.

• Q: Do I need external pull-up resistors for I2C?
  A: Some modules include built-in pull-up resistors, but if not, you will need to add them.

This concludes the documentation for the PN532 NFC RFID Module.
