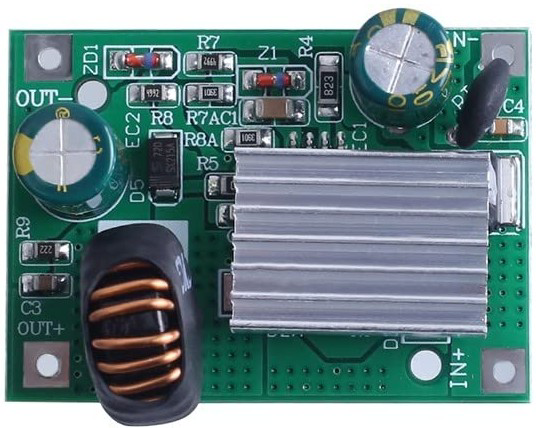

Image of Converter DC DC
Cirkit Designer LogoDesign with Converter DC DC in Cirkit Designer

Introduction

A DC-DC converter is an electronic device that converts direct current (DC) from one voltage level to another. It is widely used in electronic circuits to efficiently manage power, ensuring that components receive the appropriate voltage and current levels. DC-DC converters are essential in applications where power supply levels need to be stepped up, stepped down, or regulated.

Explore Projects Built with Converter DC DC

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
AC to DC Micro USB Power Supply with Buck Converter
Image of ac: A project utilizing Converter DC DC in a practical application
This circuit is designed to convert AC power to regulated DC power. An AC source feeds a power transformer that steps down the voltage, which is then rectified by a bridge rectifier to produce a pulsating DC. This DC is further converted to a stable DC output by a step-down buck converter, which then provides power through a Micro USB connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered USB Charger with LED Indicator and DC Motor
Image of Copy of Hand Crank mobile charger : A project utilizing Converter DC DC in a practical application
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
220V to 5V Power Supply with Transformer and Bridge Rectifier
Image of POWER SUPPLY MODULE: A project utilizing Converter DC DC in a practical application
This circuit converts 220V AC power to a 5V DC output. It uses a transformer to step down the voltage, a bridge rectifier to convert AC to DC, and a capacitor to smooth the output. The final 5V DC is available through a connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
Image of test 1 ih: A project utilizing Converter DC DC in a practical application
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Converter DC DC

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of ac: A project utilizing Converter DC DC in a practical application
AC to DC Micro USB Power Supply with Buck Converter
This circuit is designed to convert AC power to regulated DC power. An AC source feeds a power transformer that steps down the voltage, which is then rectified by a bridge rectifier to produce a pulsating DC. This DC is further converted to a stable DC output by a step-down buck converter, which then provides power through a Micro USB connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Hand Crank mobile charger : A project utilizing Converter DC DC in a practical application
Battery-Powered USB Charger with LED Indicator and DC Motor
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of POWER SUPPLY MODULE: A project utilizing Converter DC DC in a practical application
220V to 5V Power Supply with Transformer and Bridge Rectifier
This circuit converts 220V AC power to a 5V DC output. It uses a transformer to step down the voltage, a bridge rectifier to convert AC to DC, and a capacitor to smooth the output. The final 5V DC is available through a connector.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of test 1 ih: A project utilizing Converter DC DC in a practical application
Battery-Powered DC-DC Converter System for Multi-Voltage Power Distribution
This circuit converts a 38.5V battery output to multiple lower voltage levels using a series of DC-DC converters and a power module. It includes an emergency stop switch for safety and distributes power to various components such as a relay module, USB ports, and a bus servo adaptor.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers and sensors in embedded systems
  • Battery-powered devices, such as smartphones and laptops
  • Renewable energy systems, including solar panels
  • Automotive electronics for voltage regulation
  • Industrial equipment requiring multiple voltage levels

Technical Specifications

Below are the general technical specifications for a typical DC-DC converter. Specific values may vary depending on the model and manufacturer.

Key Technical Details

  • Input Voltage Range: 3V to 40V (varies by model)
  • Output Voltage Range: 1.2V to 35V (adjustable or fixed)
  • Output Current: Up to 3A (depending on the design)
  • Efficiency: Up to 95% (varies with load and input/output conditions)
  • Switching Frequency: 150 kHz to 1 MHz
  • Operating Temperature: -40°C to 85°C

Pin Configuration and Descriptions

The pinout of a DC-DC converter module (e.g., LM2596 buck converter) is as follows:

Pin Name Description
VIN Input voltage pin. Connect the DC input voltage source here.
GND Ground pin. Connect to the ground of the circuit.
VOUT Output voltage pin. Provides the regulated DC output voltage.
ADJ (optional) Adjustment pin. Used to set the output voltage (for adjustable converters).

Usage Instructions

How to Use the Component in a Circuit

  1. Determine Input and Output Voltage: Identify the input voltage range and the desired output voltage for your application.
  2. Connect the Input Voltage: Attach the positive terminal of the DC power source to the VIN pin and the negative terminal to the GND pin.
  3. Set the Output Voltage (if adjustable):
    • Use a multimeter to measure the output voltage at the VOUT pin.
    • Adjust the potentiometer (if available) on the module to set the desired output voltage.
  4. Connect the Load: Attach the load to the VOUT and GND pins, ensuring the load does not exceed the current rating of the converter.
  5. Test the Circuit: Power on the circuit and verify the output voltage and current using a multimeter.

Important Considerations and Best Practices

  • Input Voltage: Ensure the input voltage is within the specified range of the converter.
  • Heat Dissipation: For high-power applications, use a heatsink or active cooling to prevent overheating.
  • Load Current: Do not exceed the maximum current rating of the converter to avoid damage.
  • Filtering: Add input and output capacitors (if not already included) to reduce noise and improve stability.
  • Polarity: Double-check the polarity of connections to avoid damaging the module.

Example: Using a DC-DC Converter with Arduino UNO

Below is an example of using a DC-DC buck converter to power an Arduino UNO from a 12V power source:

Circuit Connections

  • Connect the 12V power source to the VIN and GND pins of the converter.
  • Adjust the output voltage to 5V using the potentiometer.
  • Connect the VOUT pin of the converter to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the converter to the GND pin of the Arduino UNO.

Sample Code

// Example code to blink an LED connected to pin 13 of Arduino UNO
// Ensure the Arduino is powered via the DC-DC converter (5V output)

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Check the input voltage and ensure it is within the specified range.
    • Verify all connections, especially the polarity of the input and output.
    • Inspect the module for physical damage or overheating.
  2. Output Voltage is Incorrect:

    • For adjustable converters, recheck the potentiometer setting.
    • Ensure the load is not drawing more current than the converter's maximum rating.
  3. Overheating:

    • Reduce the load current or improve cooling with a heatsink or fan.
    • Verify that the input voltage is not excessively high.
  4. Noise or Instability:

    • Add additional input and output capacitors to filter noise.
    • Ensure proper grounding and minimize long wire connections.

FAQs

Q: Can I use a DC-DC converter to power sensitive electronics?
A: Yes, but ensure the output voltage is stable and within the tolerance range of the device. Adding capacitors can help reduce noise.

Q: What happens if I exceed the maximum current rating?
A: Exceeding the current rating can cause the converter to overheat, shut down, or fail permanently. Always stay within the specified limits.

Q: Can I use a DC-DC converter with a battery?
A: Yes, DC-DC converters are commonly used with batteries to step up or step down the voltage to the required level.

Q: How do I know if my converter is efficient?
A: Check the efficiency rating in the datasheet. Higher efficiency means less energy is lost as heat during conversion.
