How to Use LCD 16x2 attached i2c: Examples, Pinouts, and Specs

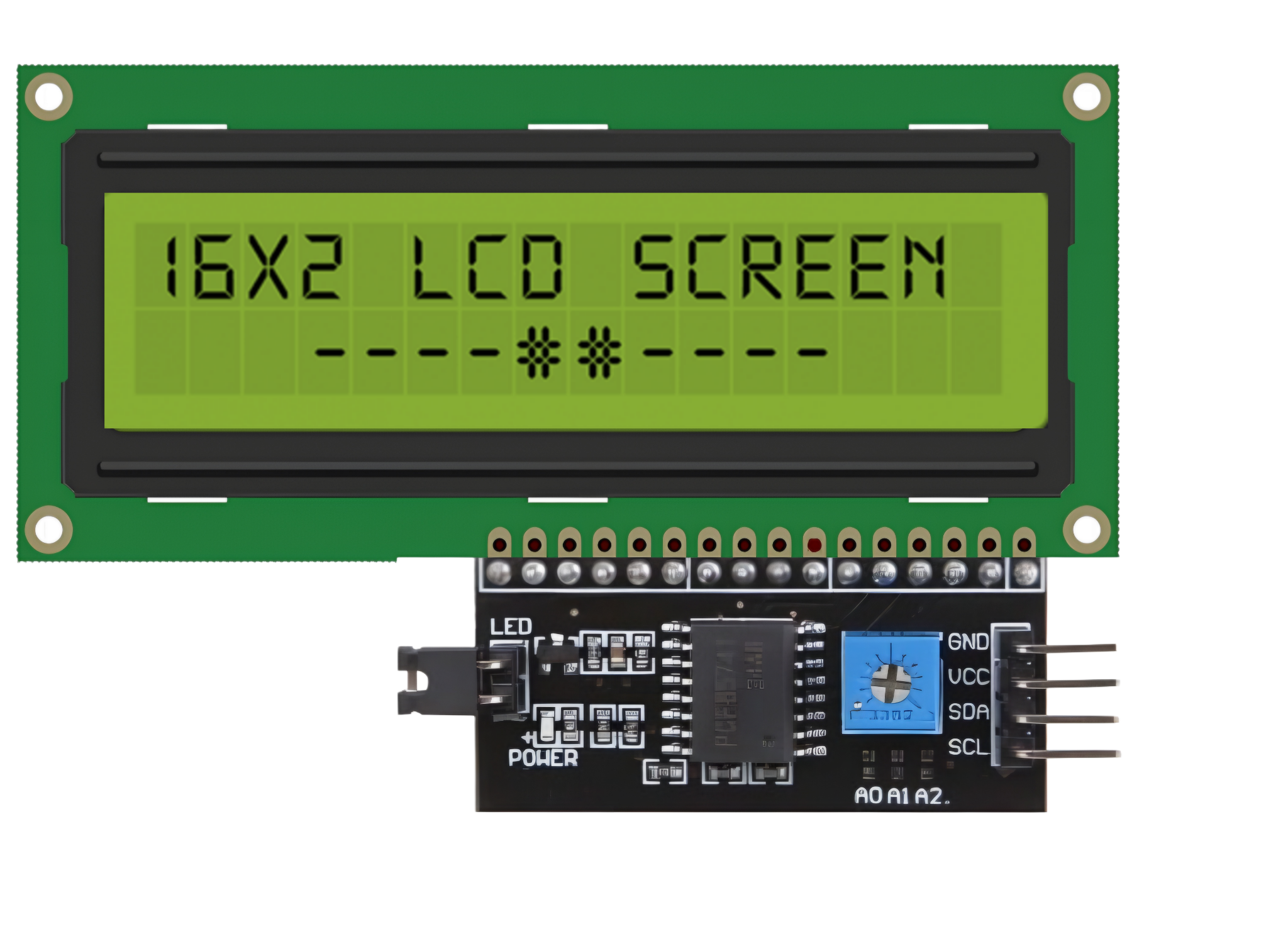

The LCD 16x2 with I2C interface is a versatile and widely used display module capable of showing 16 characters per line across 2 lines. It is equipped with an I2C (Inter-Integrated Circuit) interface, which simplifies communication with microcontrollers by reducing the number of required pins. This makes it an excellent choice for projects where pin availability is limited or where simplicity is desired.

• Displaying sensor readings in real-time
• User interfaces for embedded systems
• Menu systems for microcontroller-based projects
• Educational and prototyping purposes
• Home automation displays

• Display Type: 16x2 character LCD
• Interface: I2C (uses PCF8574 I/O expander)
• Operating Voltage: 5V DC
• Backlight: LED backlight (controllable via software)
• I2C Address: Typically 0x27 or 0x3F (configurable via jumpers)
• Character Size: 5x8 dot matrix
• Operating Temperature: -20°C to 70°C
• Dimensions: 80mm x 36mm x 12mm (approx.)

The I2C interface reduces the number of pins required to connect the LCD to just four. Below is the pin configuration:

1. Wiring the LCD to a Microcontroller:

   • Connect the VCC pin of the LCD to the 5V pin of the microcontroller.
   • Connect the GND pin of the LCD to the ground (GND) of the microcontroller.
   • Connect the SDA pin of the LCD to the I2C data pin of the microcontroller (e.g., A4 on Arduino UNO).
   • Connect the SCL pin of the LCD to the I2C clock pin of the microcontroller (e.g., A5 on Arduino UNO).

2. Install Required Libraries:

   • Use the Arduino IDE and install the LiquidCrystal_I2C library. This can be done via the Library Manager (Sketch > Include Library > Manage Libraries).

3. Basic Arduino Code Example: Below is an example code to display "Hello, World!" on the LCD:

   // Include the LiquidCrystal_I2C library
   #include <Wire.h>
   #include <LiquidCrystal_I2C.h>

   // Initialize the LCD with I2C address 0x27 and 16x2 dimensions
   LiquidCrystal_I2C lcd(0x27, 16, 2);

   void setup() {
     lcd.begin(); // Initialize the LCD
     lcd.backlight(); // Turn on the backlight
     lcd.setCursor(0, 0); // Set cursor to the first column, first row
     lcd.print("Hello, World!"); // Print text to the LCD
   }

   void loop() {
     // No actions in the loop for this example
   }


• I2C Address: Ensure the correct I2C address is used in the code. If the LCD does not respond, use an I2C scanner sketch to determine the address.
• Power Supply: Provide a stable 5V power supply to avoid flickering or malfunctioning of the display.
• Contrast Adjustment: The LCD module typically has a potentiometer for adjusting the contrast. Set it to a level where the characters are clearly visible.
• Backlight Control: Use the lcd.backlight() and lcd.noBacklight() functions to control the backlight as needed.

1. LCD Not Displaying Anything:

   • Verify the wiring connections, especially the SDA and SCL lines.
   • Check the I2C address in the code. Use an I2C scanner sketch to confirm the address.
   • Ensure the contrast potentiometer is adjusted correctly.

2. Flickering or Unstable Display:

   • Ensure the power supply is stable and capable of providing sufficient current.
   • Check for loose connections or poor solder joints.

3. Incorrect or Garbled Characters:

   • Verify the I2C address and ensure the correct library is being used.
   • Ensure the lcd.begin() function is called in the setup() section of the code.

4. Backlight Not Working:

   • Ensure the backlight jumper on the module is properly connected.
   • Use the lcd.backlight() function in the code to enable the backlight.

Q: How do I find the I2C address of my LCD?
A: Use an I2C scanner sketch available online. It will scan all connected I2C devices and display their addresses in the Serial Monitor.

Q: Can I use this LCD with a 3.3V microcontroller?
A: The LCD itself requires 5V, but the I2C lines (SDA and SCL) may work with 3.3V logic if pull-up resistors are properly configured. Use a level shifter if needed.

Q: Can I display custom characters on this LCD?
A: Yes, the LiquidCrystal_I2C library supports custom characters. Refer to the library documentation for details on creating and displaying custom characters.

Q: What is the maximum cable length for I2C communication?
A: The maximum length depends on the pull-up resistor values and the speed of communication. For standard speeds (100kHz), a length of up to 1 meter is generally reliable.

By following this documentation, you can effectively integrate and troubleshoot the LCD 16x2 with I2C interface in your projects.
