How to Use 5v DC Adapter: Examples, Pinouts, and Specs

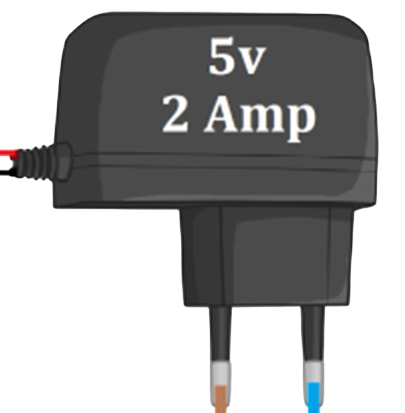

The 5V DC Adapter is a power supply device designed to convert AC voltage from a standard wall outlet into a stable 5V DC output. This adapter is widely used to power a variety of electronic devices, including microcontrollers, sensors, and small appliances. Its compact design and reliable performance make it an essential component for hobbyists, engineers, and professionals working with low-power electronics.

• Powering microcontroller boards such as Arduino, Raspberry Pi, and ESP32.
• Supplying power to sensors, modules, and small electronic circuits.
• Charging USB-powered devices like smartphones and portable gadgets.
• Providing a stable 5V DC source for prototyping and testing electronic projects.

The following table outlines the key technical details of the 5V DC Adapter:

For adapters with a barrel jack connector, the pin configuration is as follows:

For USB-A connectors, the pin configuration is:

1. Verify Compatibility: Ensure the device or circuit you are powering requires a 5V DC input and does not exceed the adapter's current rating.
2. Connect the Adapter:
   • For barrel jack connectors, insert the adapter's plug into the corresponding socket on your device or circuit.
   • For USB-powered devices, connect the USB-A plug to the device's USB port.
3. Power On: Plug the adapter into a wall outlet and switch it on (if applicable). The connected device should now receive a stable 5V DC supply.

• Check Polarity: For barrel jack connectors, ensure the polarity matches your device's requirements (center-positive is standard).
• Avoid Overloading: Do not connect devices that draw more current than the adapter's maximum output rating.
• Use in a Safe Environment: Operate the adapter in a dry, well-ventilated area to prevent overheating or damage.
• Monitor Temperature: If the adapter becomes excessively hot, disconnect it immediately and inspect for issues.

The Arduino UNO can be powered using a 5V DC adapter via its barrel jack connector. Below is an example of Arduino code to blink an LED while powered by the adapter:

// This code blinks an LED connected to pin 13 of the Arduino UNO.
// Ensure the Arduino is powered using a 5V DC adapter connected to the barrel jack.

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. Device Not Powering On:

   • Cause: Incorrect polarity or loose connection.
   • Solution: Verify the polarity of the barrel jack and ensure all connections are secure.

2. Adapter Overheating:

   • Cause: Overloading or poor ventilation.
   • Solution: Reduce the load on the adapter and ensure it is used in a well-ventilated area.

3. Fluctuating Output Voltage:

   • Cause: Faulty adapter or unstable input voltage.
   • Solution: Test the adapter with a multimeter. Replace it if the output voltage is unstable.

4. Adapter Not Working:

   • Cause: Blown internal fuse or damaged components.
   • Solution: Replace the adapter, as repairs are not recommended for safety reasons.

Q: Can I use a 5V DC adapter to charge my smartphone?
A: Yes, if the adapter has a USB-A output and meets the current requirements of your smartphone.

Q: Is it safe to leave the adapter plugged in when not in use?
A: While most adapters are designed to be safe, it is recommended to unplug them when not in use to save energy and reduce wear.

Q: Can I use a 5V DC adapter with a higher current rating than my device requires?
A: Yes, as long as the voltage is 5V, the device will only draw the current it needs.

Q: How do I know if the adapter is center-positive?
A: Look for a polarity diagram on the adapter's label. A center-positive adapter will have a "+" symbol pointing to the center pin.

This concludes the documentation for the 5V DC Adapter.
