How to Use SO-32x: Examples, Pinouts, and Specs

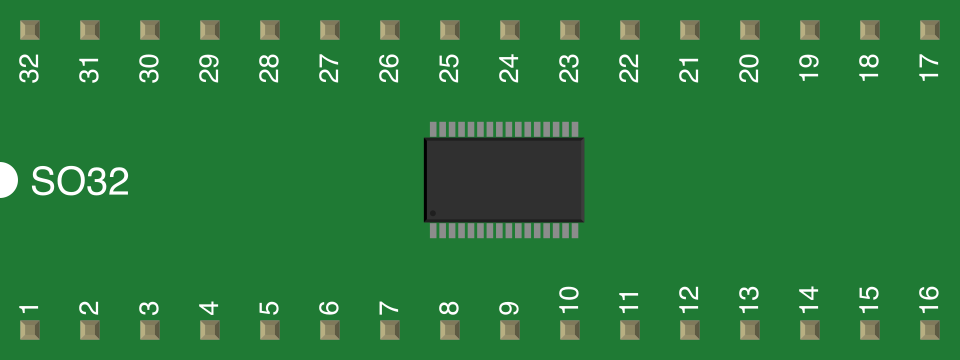

The SO-32x (Small Outline with 32 pins) is a surface-mount package designed for integrated circuits. It provides a compact and efficient footprint, making it ideal for modern electronic designs where space is a critical factor. The SO-32x package is widely used in applications such as microcontrollers, memory chips, and other ICs in consumer electronics, automotive systems, and industrial equipment.

• Microcontrollers and digital signal processors (DSPs)
• Memory modules (e.g., EEPROM, Flash)
• Power management ICs
• Communication modules
• Sensor interface circuits

The SO-32x package is designed to meet the needs of high-density circuit boards while maintaining reliable electrical and thermal performance. Below are the key technical details:

The SO-32x package has 32 pins, typically arranged in two parallel rows of 16 pins each. The pinout varies depending on the IC housed in the package. Below is an example of a generic pin configuration for a microcontroller:

Note: The actual pinout may vary depending on the specific IC housed in the SO-32x package. Always refer to the datasheet of the specific IC for accurate pin descriptions.

1. PCB Design:
   • Ensure the PCB layout matches the SO-32x footprint, with a pin pitch of 1.27 mm.
   • Use thermal vias or a ground plane to improve heat dissipation if the IC generates significant heat.
2. Soldering:
   • Use a reflow soldering process for surface-mount assembly.
   • Ensure proper alignment of the IC on the PCB pads before soldering.
3. Power Supply:
   • Provide a stable power supply within the voltage range specified in the IC datasheet.
   • Decouple the power supply with capacitors (e.g., 0.1 µF ceramic capacitor close to the VCC pin).
4. Signal Connections:
   • Connect the pins according to the IC's functional requirements (e.g., GPIO, communication interfaces).
   • Use pull-up or pull-down resistors for input pins as needed.

If the SO-32x package houses a microcontroller, you can interface it with an Arduino UNO for testing or prototyping. Below is an example of Arduino code to communicate with the SO-32x microcontroller via I2C:

#include <Wire.h> // Include the Wire library for I2C communication

#define SO32X_I2C_ADDRESS 0x40 // Replace with the actual I2C address of the IC

void setup() {
  Wire.begin(); // Initialize I2C communication
  Serial.begin(9600); // Start serial communication for debugging
  Serial.println("Initializing SO-32x communication...");
}

void loop() {
  Wire.beginTransmission(SO32X_I2C_ADDRESS); // Start communication with the IC
  Wire.write(0x01); // Send a command or register address (example: 0x01)
  Wire.endTransmission(); // End the transmission

  delay(100); // Wait for the IC to process the command

  Wire.requestFrom(SO32X_I2C_ADDRESS, 1); // Request 1 byte of data from the IC
  if (Wire.available()) {
    int data = Wire.read(); // Read the received data
    Serial.print("Received data: ");
    Serial.println(data);
  }

  delay(1000); // Wait before sending the next command
}

Important Considerations:

• Verify the I2C address of the IC in the SO-32x package before running the code.
• Ensure proper pull-up resistors (e.g., 4.7 kΩ) are connected to the I2C lines (SCL and SDA).
• Avoid exceeding the voltage and current ratings of the IC.

1. Misaligned Soldering:

   • Problem: The IC is not properly aligned with the PCB pads.
   • Solution: Use a magnifying glass or microscope to inspect alignment before soldering. Reflow the solder if necessary.

2. Overheating:

   • Problem: The IC overheats during operation.
   • Solution: Check for proper heat dissipation (e.g., thermal vias, ground plane). Ensure the IC is not operating beyond its power or thermal limits.

3. Communication Failure:

   • Problem: The IC does not respond to I2C or SPI commands.
   • Solution: Verify the connections, pull-up resistors, and communication protocol settings. Check the IC's datasheet for correct initialization procedures.

4. Incorrect Pin Connections:

   • Problem: The circuit does not function as expected.
   • Solution: Double-check the pinout and ensure all connections match the IC's functional requirements.

Q1: Can the SO-32x package be hand-soldered?
A1: While it is possible to hand-solder the SO-32x package, it requires precision and experience due to the small pin pitch. Using a reflow soldering process is recommended for best results.

Q2: How do I identify pin 1 on the SO-32x package?
A2: Pin 1 is typically marked with a dot or notch on the IC package. Refer to the IC's datasheet for specific markings.

Q3: What is the maximum current the SO-32x package can handle?
A3: The maximum current depends on the specific IC housed in the SO-32x package. Consult the IC's datasheet for detailed electrical specifications.

Q4: Can the SO-32x package be used in high-temperature environments?
A4: Yes, the SO-32x package is designed to operate within a temperature range of -40°C to +125°C. Ensure the IC's specifications align with your application requirements.
