How to Use ESP32 DevKitC V4: Examples, Pinouts, and Specs

The ESP32 DevKitC V4, manufactured by Espressif, is a compact and versatile development board built around the ESP32-WROOM-32U module. This board is designed for IoT (Internet of Things) applications, offering integrated Wi-Fi and Bluetooth capabilities. It is equipped with multiple GPIO pins, ADCs, and supports a wide range of programming environments, including Arduino IDE, ESP-IDF, and MicroPython.

• IoT devices and smart home automation
• Wireless sensor networks
• Wearable electronics
• Industrial automation
• Prototyping and development of Wi-Fi/Bluetooth-enabled devices

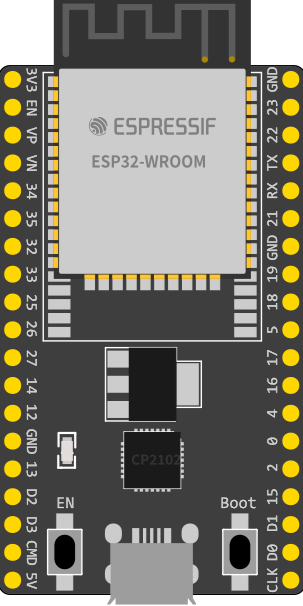

The ESP32 DevKitC V4 features a 2x19 pin header layout. Below is the pin configuration:

Note: Some GPIO pins have dual functionality (e.g., ADC, PWM, Touch). Refer to the ESP32 datasheet for detailed pin multiplexing.

1. Powering the Board:

   • Connect the board to your computer via the Micro-USB port for power and programming.
   • Alternatively, supply 5V to the VIN pin or 3.3V to the 3V3 pin.

2. Programming the Board:

   • Install the required drivers for the USB-to-serial chip (e.g., CP2102).
   • Use a compatible IDE such as Arduino IDE, ESP-IDF, or MicroPython.
   • Select the correct board and port in your IDE settings.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other peripherals.
   • Ensure that the voltage levels of connected devices are compatible with the ESP32 (3.3V logic).

4. Uploading Code:

   • Write your code in the IDE and upload it to the board via the Micro-USB connection.
   • Press the "BOOT" button on the board if required during the upload process.

• Voltage Levels: The ESP32 operates at 3.3V logic. Avoid connecting 5V signals directly to GPIO pins.
• Power Supply: Ensure a stable power supply, especially when using Wi-Fi or Bluetooth, as these features can cause power spikes.
• Boot Mode: GPIO0 must be pulled low to enter bootloader mode for programming.
• Pin Usage: Some pins (e.g., GPIO6-GPIO11) are reserved for internal flash memory and should not be used.

Below is an example of how to blink an LED connected to GPIO2:

// Define the GPIO pin for the LED
#define LED_PIN 2

void setup() {
  pinMode(LED_PIN, OUTPUT); // Set GPIO2 as an output pin
}

void loop() {
  digitalWrite(LED_PIN, HIGH); // Turn the LED on
  delay(1000);                 // Wait for 1 second
  digitalWrite(LED_PIN, LOW);  // Turn the LED off
  delay(1000);                 // Wait for 1 second
}

Tip: Ensure the LED is connected with a current-limiting resistor (e.g., 220Ω) to prevent damage.

1. Board Not Detected by Computer:

   • Ensure the USB cable is functional and supports data transfer.
   • Install the correct USB-to-serial driver (e.g., CP2102 driver).

2. Code Upload Fails:

   • Check that the correct board and port are selected in the IDE.
   • Press and hold the "BOOT" button during the upload process.

3. Wi-Fi Connection Issues:

   • Verify the SSID and password in your code.
   • Ensure the router is within range and supports 2.4 GHz Wi-Fi.

4. GPIO Pin Not Working:

   • Check if the pin is reserved or has dual functionality.
   • Ensure the pin is not being used by another peripheral.

Q: Can I power the ESP32 DevKitC V4 with a battery?
A: Yes, you can power the board using a 3.7V LiPo battery connected to the 3V3 pin or a 5V source connected to the VIN pin.

Q: What is the maximum current draw of the ESP32?
A: The ESP32 can draw up to 500 mA during peak operation (e.g., Wi-Fi transmission). Ensure your power source can handle this.

Q: Can I use the ESP32 DevKitC V4 with MicroPython?
A: Yes, the ESP32 is fully compatible with MicroPython. You can flash the MicroPython firmware and use it for development.

Q: How do I reset the board?
A: Press the "EN" button on the board to reset it.

For more detailed information, refer to the official Espressif ESP32-WROOM-32U datasheet.
