How to Use TMC2209 MOTOR DRIVER(V 2.0): Examples, Pinouts, and Specs

The TMC2209 MOTOR DRIVER (V 2.0) by MakerBase MKS is a high-performance stepper motor driver designed for precision motion control applications. It is widely used in 3D printers, CNC machines, and other devices requiring silent operation and smooth motor control. This driver supports advanced features such as sensorless homing, microstepping, and dynamic current adjustment, making it an ideal choice for modern motion control systems.

• 3D printers for precise and quiet stepper motor control
• CNC machines for smooth and accurate motion
• Robotics and automation systems
• Laser engravers and plotters
• Any application requiring silent and efficient stepper motor operation

The TMC2209 MOTOR DRIVER (V 2.0) offers robust performance and advanced features. Below are its key technical details:

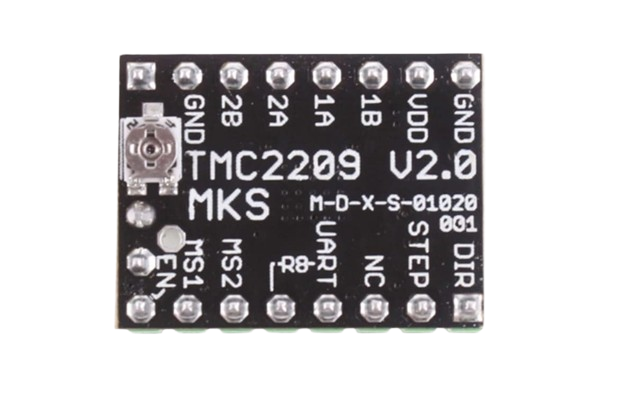

The TMC2209 MOTOR DRIVER (V 2.0) has a standard pinout for easy integration. Below is the pin configuration:

The TMC2209 MOTOR DRIVER (V 2.0) is designed for ease of use in a variety of applications. Follow the steps below to integrate it into your circuit:

1. Power Supply: Connect the VM pin to a power supply (4.75V to 29V) and the GND pin to ground.
2. Motor Connection: Connect the stepper motor's coils to the motor output pins on the driver.
3. Control Pins: Connect the STEP and DIR pins to your microcontroller or control board.
4. UART Communication: If using UART, connect the UART_TX and UART_RX pins to the corresponding pins on your microcontroller.
5. Microstepping: Use the MS1 and MS2 pins to configure the desired microstepping resolution.

• Ensure proper heat dissipation by attaching a heatsink or using active cooling if the driver operates at high currents.
• Use decoupling capacitors near the VM pin to stabilize the power supply.
• Avoid exceeding the maximum voltage and current ratings to prevent damage to the driver.
• For silent operation, enable the StealthChop2 mode via UART.

Below is an example of how to control the TMC2209 MOTOR DRIVER (V 2.0) using an Arduino UNO:

#include <TMCStepper.h>

// Define pins for TMC2209
#define EN_PIN 8    // Enable pin
#define DIR_PIN 5   // Direction pin
#define STEP_PIN 2  // Step pin
#define SERIAL_PORT Serial  // UART communication port
#define DRIVER_ADDRESS 0b00 // TMC2209 driver address

// Initialize TMC2209 driver
TMC2209Stepper driver(&SERIAL_PORT, DRIVER_ADDRESS);

void setup() {
  pinMode(EN_PIN, OUTPUT);
  pinMode(DIR_PIN, OUTPUT);
  pinMode(STEP_PIN, OUTPUT);

  digitalWrite(EN_PIN, LOW); // Enable the driver

  SERIAL_PORT.begin(115200); // Initialize UART communication
  driver.begin();            // Initialize TMC2209
  driver.toff(5);            // Enable driver with a short off time
  driver.rms_current(800);   // Set motor current to 800mA
  driver.microsteps(16);     // Set microstepping to 1/16
}

void loop() {
  digitalWrite(DIR_PIN, HIGH); // Set direction
  for (int i = 0; i < 200; i++) {
    digitalWrite(STEP_PIN, HIGH); // Generate step pulse
    delayMicroseconds(500);       // Delay for step timing
    digitalWrite(STEP_PIN, LOW);
    delayMicroseconds(500);
  }
  delay(1000); // Wait before reversing direction

  digitalWrite(DIR_PIN, LOW); // Reverse direction
  for (int i = 0; i < 200; i++) {
    digitalWrite(STEP_PIN, HIGH);
    delayMicroseconds(500);
    digitalWrite(STEP_PIN, LOW);
    delayMicroseconds(500);
  }
  delay(1000);
}

• Install the TMCStepper library in the Arduino IDE for the above code to work.
• Adjust the rms_current and microsteps values based on your motor's specifications.

1. Motor Not Moving:

   • Verify all connections, especially the STEP and DIR pins.
   • Ensure the driver is enabled by setting the EN pin to LOW.
   • Check the power supply voltage and current ratings.

2. Overheating:

   • Attach a heatsink or use active cooling.
   • Reduce the motor current using the rms_current setting.

3. No UART Communication:

   • Ensure the UART_TX and UART_RX pins are correctly connected.
   • Check the baud rate and driver address in the code.

4. Motor Vibrates but Doesn't Rotate:

   • Verify the motor wiring and ensure the coils are connected correctly.
   • Check the microstepping configuration (MS1 and MS2 pins).

Q: Can the TMC2209 be used without UART?
A: Yes, the TMC2209 can operate in standalone mode using the STEP and DIR pins. However, UART is required for advanced features like sensorless homing and current adjustment.

Q: What is the maximum microstepping resolution?
A: The TMC2209 supports up to 256 microsteps per full step.

Q: How do I enable sensorless homing?
A: Sensorless homing requires UART communication to configure the driver. Refer to the TMC2209 datasheet for detailed instructions.

Q: Can I use the TMC2209 with a 12V power supply?
A: Yes, the TMC2209 supports a wide voltage range from 4.75V to 29V, including 12V.

By following this documentation, you can effectively integrate and utilize the TMC2209 MOTOR DRIVER (V 2.0) in your projects.
