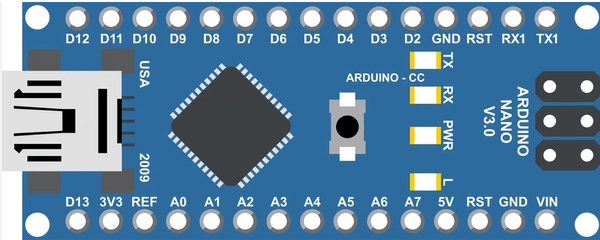

Image of Arduino nano
Cirkit Designer LogoDesign with Arduino nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board developed by Arduino, featuring the ATmega328P microcontroller. It is designed for easy integration into a wide range of projects, offering a small form factor without compromising functionality. The Nano is equipped with digital and analog input/output pins, USB connectivity for programming, and compatibility with the Arduino IDE, making it an excellent choice for both beginners and experienced developers.
