How to Use Power Supply 12v 12.5a 150w: Examples, Pinouts, and Specs

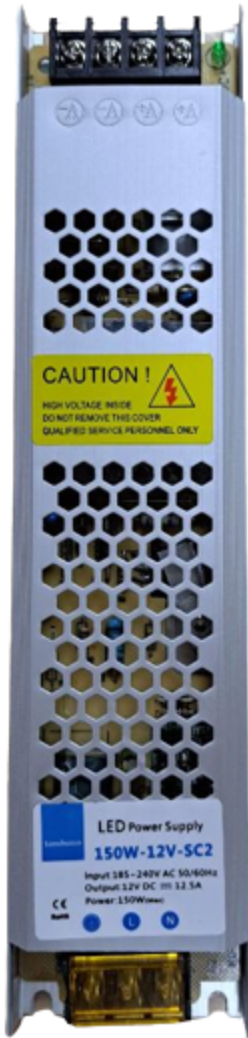

The Power Supply 12V 12.5A 150W is a reliable and efficient device designed to convert AC voltage (typically 110V or 220V) into a stable 12V DC output. With a maximum current capacity of 12.5A and a power rating of 150W, this power supply is ideal for powering a wide range of electronic devices, including LED strips, motors, microcontrollers, and other DC-powered equipment. Its robust design ensures consistent performance and protection against overvoltage, overcurrent, and short circuits.

• Powering LED lighting systems, such as LED strips or panels.
• Supplying power to DC motors in robotics or automation projects.
• Providing a stable power source for microcontroller-based systems (e.g., Arduino, Raspberry Pi).
• Operating CCTV cameras and other security systems.
• General-purpose DC power supply for laboratory or prototyping use.

The following table outlines the key technical details of the Power Supply 12V 12.5A 150W:

The power supply typically features screw terminals for input and output connections. Below is a description of the terminal layout:

1. Input Connection:

   • Connect the AC input terminals (L, N, and GND) to the mains power supply.
   • Ensure the input voltage matches the power supply's rated input range (100-240V AC).
   • Use proper insulation and secure the connections to avoid electrical hazards.

2. Output Connection:

   • Connect the V+ terminal to the positive input of your load (e.g., LED strip, motor).
   • Connect the V- terminal to the ground of your load.
   • Double-check the polarity to prevent damage to your devices.

3. Power On:

   • After verifying all connections, switch on the mains power.
   • The power supply will provide a stable 12V DC output to your connected load.

• Load Capacity: Ensure the total current draw of your connected devices does not exceed 12.5A.
• Ventilation: Place the power supply in a well-ventilated area to prevent overheating.
• Safety: Avoid touching the terminals while the power supply is connected to mains power.
• Voltage Adjustment: Some models include a small potentiometer to fine-tune the output voltage. Use this feature carefully if needed.
• Fuse Protection: Consider adding an external fuse to protect your circuit in case of unexpected surges.

To power an Arduino UNO using this power supply, follow these steps:

1. Connect the V+ terminal to the Arduino's VIN pin.
2. Connect the V- terminal to the Arduino's GND pin.
3. Ensure the Arduino's onboard voltage regulator is functioning properly to handle the 12V input.

Here is an example Arduino code to blink an LED while powered by the 12V power supply:

// Blink an LED connected to pin 13
void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

1. No Output Voltage:

   • Cause: Incorrect input connection or blown fuse.
   • Solution: Verify the AC input connections and check the fuse. Replace the fuse if necessary.

2. Overheating:

   • Cause: Insufficient ventilation or excessive load.
   • Solution: Ensure proper airflow around the power supply and reduce the load if it exceeds 12.5A.

3. Voltage Fluctuations:

   • Cause: Unstable mains power or faulty components.
   • Solution: Use a voltage stabilizer for the input or replace the power supply if the issue persists.

4. Device Not Powering On:

   • Cause: Incorrect polarity or loose connections.
   • Solution: Double-check the polarity and ensure all connections are secure.

• Q: Can this power supply be used outdoors?
  A: No, this power supply is not waterproof. Use it indoors or in a protected enclosure.

• Q: Can I power multiple devices simultaneously?
  A: Yes, as long as the total current draw does not exceed 12.5A.

• Q: Is the output voltage adjustable?
  A: Some models include a potentiometer for minor voltage adjustments (e.g., ±10%).

• Q: What happens if the load exceeds 12.5A?
  A: The power supply's overcurrent protection will activate, shutting down the output to prevent damage.

This concludes the documentation for the Power Supply 12V 12.5A 150W. Follow the guidelines above for safe and efficient operation.
