How to Use ESP32: Examples, Pinouts, and Specs

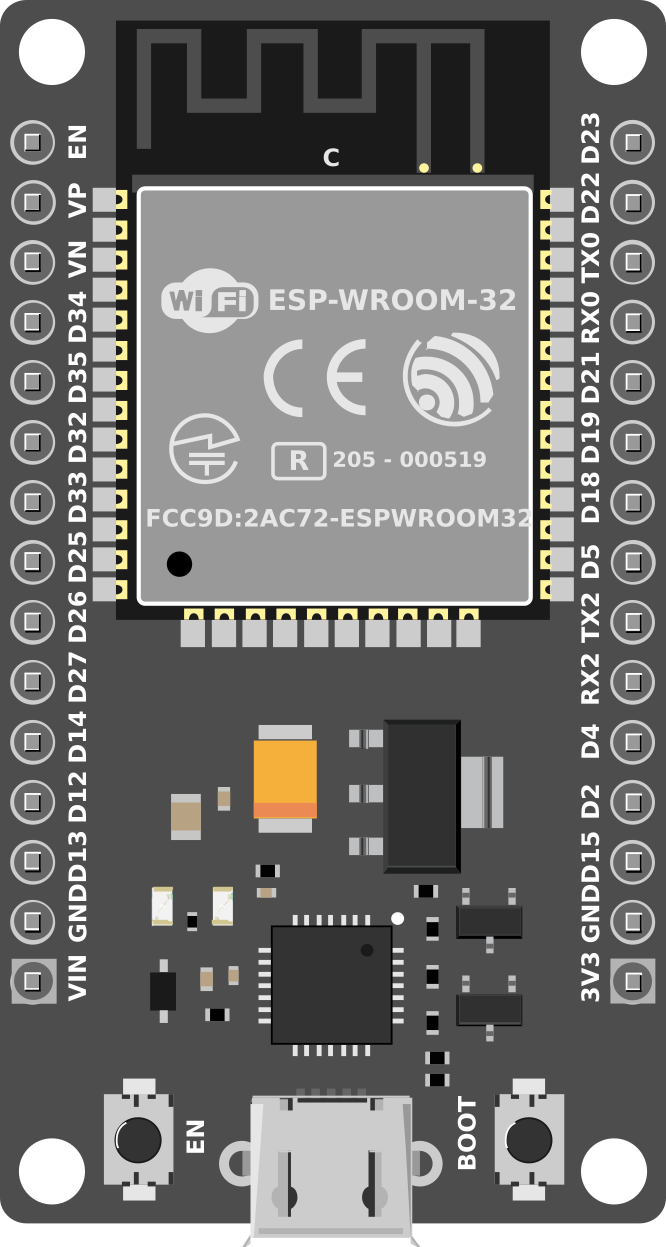

Image of ESP32
Cirkit Designer LogoDesign with ESP32 in Cirkit Designer

Introduction

The ESP32 is a low-cost, low-power system on a chip (SoC) developed by Espressif Systems. It features integrated Wi-Fi and Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) applications, smart devices, and embedded systems. With its dual-core processor, extensive GPIO options, and support for various communication protocols, the ESP32 is a versatile and powerful component for a wide range of projects.

Explore Projects Built with ESP32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
Image of MVP_design: A project utilizing ESP32 in a practical application
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based NTP Clock with DHT22 Temperature Sensor and WS2812 LED Matrix Display
Image of date time and temperature display : A project utilizing ESP32 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and an 8x8 WS2812 RGB LED matrix. The ESP32 reads temperature data from the DHT22 sensor and displays the current date, time, and temperature on the LED matrix, with date and time synchronized via NTP (Network Time Protocol). The ESP32 provides power to both the DHT22 and the LED matrix and communicates with the DHT22 via GPIO 4 and with the LED matrix via GPIO 5.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Water Flow Sensing
Image of Water: A project utilizing ESP32 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
Image of flowchart 3D: A project utilizing ESP32 in a practical application
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of MVP_design: A project utilizing ESP32 in a practical application
ESP32-Based Sensor Monitoring System with OLED Display and E-Stop
This circuit features an ESP32 microcontroller that interfaces with a variety of sensors and output devices. It is powered by a Lipo battery through a buck converter, ensuring a stable voltage supply. The ESP32 collects data from a DHT11 temperature and humidity sensor and a vibration sensor, controls a buzzer, and displays information on an OLED screen. An emergency stop (E Stop) is connected for safety purposes, allowing the system to be quickly deactivated.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of date time and temperature display : A project utilizing ESP32 in a practical application
ESP32-Based NTP Clock with DHT22 Temperature Sensor and WS2812 LED Matrix Display
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and an 8x8 WS2812 RGB LED matrix. The ESP32 reads temperature data from the DHT22 sensor and displays the current date, time, and temperature on the LED matrix, with date and time synchronized via NTP (Network Time Protocol). The ESP32 provides power to both the DHT22 and the LED matrix and communicates with the DHT22 via GPIO 4 and with the LED matrix via GPIO 5.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Water: A project utilizing ESP32 in a practical application
ESP32-Based Environmental Monitoring System with Water Flow Sensing
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of flowchart 3D: A project utilizing ESP32 in a practical application
ESP32-Based Smart Weather Station with Wi-Fi Connectivity
This circuit features an ESP32 microcontroller interfacing with various sensors and modules, including a DHT22 temperature and humidity sensor, an ESP32 CAM for image capture, an I2C LCD screen for display, a load cell with an HX711 interface for weight measurement, and a buzzer for audio alerts. The ESP32 handles data acquisition, processing, and communication with these peripherals to create a multi-functional monitoring and alert system.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable electronics
  • Robotics and drones
  • Industrial automation
  • Prototyping and educational projects

Technical Specifications

The ESP32 is packed with features that make it suitable for both simple and complex applications. Below are its key technical specifications:

Key Technical Details

  • Processor: Dual-core Xtensa® 32-bit LX6 microprocessor
  • Clock Speed: Up to 240 MHz
  • RAM: 520 KB SRAM
  • Flash Memory: Typically 4 MB (varies by module)
  • Wi-Fi: 802.11 b/g/n (2.4 GHz)
  • Bluetooth: v4.2 BR/EDR and BLE
  • Operating Voltage: 3.0V to 3.6V
  • GPIO Pins: 34 (multipurpose, including ADC, DAC, PWM, I2C, SPI, UART)
  • ADC Channels: 18 (12-bit resolution)
  • DAC Channels: 2 (8-bit resolution)
  • Power Consumption: Ultra-low power in deep sleep mode (~10 µA)
  • Operating Temperature: -40°C to 125°C

Pin Configuration and Descriptions

The ESP32 has a variety of pins for different functionalities. Below is a table summarizing the most commonly used pins:

Pin Name Function Description
GPIO0 Input/Output, Boot Mode Select Used for boot mode selection during startup.
GPIO2 Input/Output, ADC, PWM General-purpose pin, supports ADC and PWM.
GPIO12 Input/Output, ADC, Touch Can be used as a touch sensor or ADC input.
GPIO13 Input/Output, ADC, Touch Can be used as a touch sensor or ADC input.
GPIO15 Input/Output, ADC, PWM General-purpose pin, supports ADC and PWM.
GPIO16 Input/Output General-purpose pin.
GPIO17 Input/Output General-purpose pin.
EN Enable Active-high pin to enable the chip.
3V3 Power Supply Provides 3.3V output.
GND Ground Ground connection.

Note: The exact pinout may vary depending on the ESP32 module or development board (e.g., ESP32-WROOM-32, ESP32-WROVER).

Usage Instructions

The ESP32 can be used in a variety of circuits and applications. Below are the steps and best practices for using the ESP32 in your projects.

How to Use the ESP32 in a Circuit

  1. Powering the ESP32:
    • Provide a stable 3.3V power supply to the 3V3 pin.
    • Ensure the current supply is sufficient (at least 500 mA) for Wi-Fi and Bluetooth operations.
  2. Connecting to a Microcontroller or PC:
    • Use a USB-to-serial adapter or a development board with a built-in USB interface.
    • Install the necessary drivers (e.g., CP2102 or CH340) for your operating system.
  3. Programming the ESP32:
    • Use the Arduino IDE, ESP-IDF, or other supported environments.
    • Select the correct board and port in the IDE before uploading code.
  4. GPIO Usage:
    • Configure GPIO pins as input or output in your code.
    • Avoid using GPIO6-GPIO11 as they are connected to the internal flash memory.

Important Considerations and Best Practices

  • Voltage Levels: The ESP32 operates at 3.3V logic levels. Avoid applying 5V to its GPIO pins.
  • Deep Sleep Mode: Use deep sleep mode to conserve power in battery-powered applications.
  • Pull-Up/Pull-Down Resistors: Some GPIO pins require external pull-up or pull-down resistors for proper operation.
  • Antenna Placement: Ensure the onboard antenna has sufficient clearance from metal objects to avoid interference.

Example Code for Arduino UNO Integration

Below is an example of how to use the ESP32 with the Arduino IDE to blink an LED connected to GPIO2:

// Define the GPIO pin for the LED
#define LED_PIN 2

void setup() {
  // Initialize the LED pin as an output
  pinMode(LED_PIN, OUTPUT);
}

void loop() {
  // Turn the LED on
  digitalWrite(LED_PIN, HIGH);
  delay(1000); // Wait for 1 second

  // Turn the LED off
  digitalWrite(LED_PIN, LOW);
  delay(1000); // Wait for 1 second
}

Tip: Ensure the ESP32 board is selected in the Arduino IDE under Tools > Board.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Detected by PC:
    • Ensure the correct drivers (e.g., CP2102 or CH340) are installed.
    • Check the USB cable for data transfer capability (some cables are power-only).
  2. Upload Fails in Arduino IDE:
    • Verify the correct board and port are selected in the IDE.
    • Press and hold the BOOT button on the ESP32 while uploading the code.
  3. Wi-Fi Connection Issues:
    • Double-check the SSID and password in your code.
    • Ensure the router is within range and supports 2.4 GHz Wi-Fi.
  4. GPIO Pin Not Working:
    • Confirm the pin is not reserved for internal functions (e.g., GPIO6-GPIO11).
    • Check for proper pull-up or pull-down resistor configuration.

FAQs

  • Q: Can the ESP32 operate on 5V?
    A: No, the ESP32 operates at 3.3V. Applying 5V to its GPIO pins can damage the chip.

  • Q: How do I reset the ESP32?
    A: Press the EN (Enable) button on the development board to reset the ESP32.

  • Q: Can I use the ESP32 for Bluetooth audio streaming?
    A: Yes, the ESP32 supports Bluetooth audio streaming using the A2DP profile.

  • Q: What is the maximum Wi-Fi range of the ESP32?
    A: The range depends on the environment but is typically around 50-100 meters indoors.

By following this documentation, you can effectively use the ESP32 in your projects and troubleshoot common issues.
