Introduction

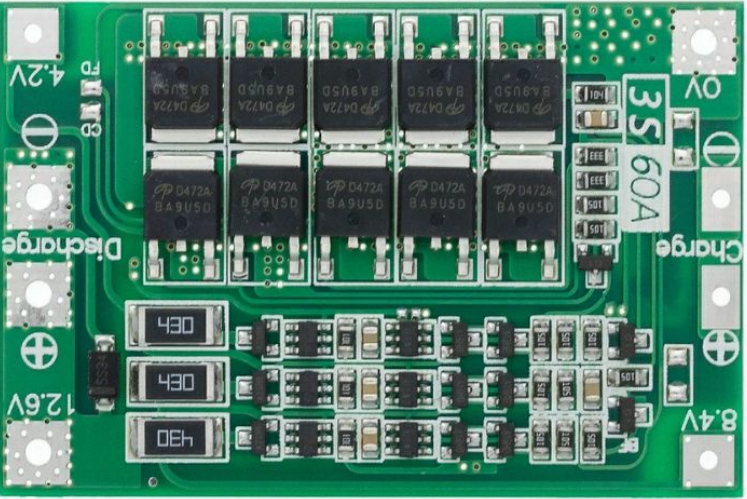

The BMS 3S is a Battery Management System designed specifically for managing and protecting 3-cell lithium-ion battery packs (commonly referred to as 3S configurations). It ensures the safe operation of the battery pack by monitoring critical parameters such as voltage, current, and temperature. Additionally, it balances the charge across the cells to maximize battery life and performance.

Explore Projects Built with BMS 3s

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
18650 Li-ion Battery Pack with BMS for 5V Power Supply
Image of battary: A project utilizing BMS 3s in a practical application
This circuit consists of a battery management system (BMS) connected to a series of 18650 Li-ion batteries arranged in a 4S configuration to provide a regulated output voltage. The BMS ensures safe charging and discharging of the batteries, while a connector provides a 5V output for external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
18650 Li-ion Battery-Powered BMS with Boost Converter and 5V Adapter
Image of dog: A project utilizing BMS 3s in a practical application
This circuit consists of three 18650 Li-ion batteries connected in parallel to a Battery Management System (BMS), which ensures safe charging and discharging of the batteries. The BMS output is connected to a 5V adapter and an XL6009E1 Boost Converter, indicating that the circuit is designed to provide a regulated power supply, likely stepping up the voltage to a required level for downstream electronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
Image of mini ups: A project utilizing BMS 3s in a practical application
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
Image of Breadboard: A project utilizing BMS 3s in a practical application
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with BMS 3s

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of battary: A project utilizing BMS 3s in a practical application
18650 Li-ion Battery Pack with BMS for 5V Power Supply
This circuit consists of a battery management system (BMS) connected to a series of 18650 Li-ion batteries arranged in a 4S configuration to provide a regulated output voltage. The BMS ensures safe charging and discharging of the batteries, while a connector provides a 5V output for external devices.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of dog: A project utilizing BMS 3s in a practical application
18650 Li-ion Battery-Powered BMS with Boost Converter and 5V Adapter
This circuit consists of three 18650 Li-ion batteries connected in parallel to a Battery Management System (BMS), which ensures safe charging and discharging of the batteries. The BMS output is connected to a 5V adapter and an XL6009E1 Boost Converter, indicating that the circuit is designed to provide a regulated power supply, likely stepping up the voltage to a required level for downstream electronics.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of mini ups: A project utilizing BMS 3s in a practical application
Battery-Powered Adjustable Voltage Regulator with Li-ion 18650 Batteries and BMS
This circuit is a power management system that uses four Li-ion 18650 batteries connected to a 2S 30A BMS for battery management and protection. The system includes step-up and step-down voltage regulators to provide adjustable output voltages, controlled by a rocker switch, and multiple DC jacks for power input and output.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Breadboard: A project utilizing BMS 3s in a practical application
Battery-Powered 18650 Li-ion Charger with USB Output and Adjustable Voltage Regulator
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Power management in portable electronics
  • Electric bicycles and scooters
  • Solar energy storage systems
  • Uninterruptible Power Supplies (UPS)
  • Robotics and IoT devices

Technical Specifications

The BMS 3S is engineered to provide robust protection and efficient management for 3-cell lithium-ion battery packs. Below are its key technical specifications:

Parameter Value
Input Voltage Range 9V to 12.6V (3 cells in series)
Overcharge Protection 4.25V ± 0.05V per cell
Over-discharge Protection 2.7V ± 0.1V per cell
Maximum Continuous Current 20A (varies by model)
Balancing Current 50mA to 100mA
Operating Temperature -20°C to 60°C
Dimensions 50mm x 20mm x 3mm

Pin Configuration and Descriptions

The BMS 3S typically has the following pin configuration:

Pin Name Description
B- Battery negative terminal (connect to the negative terminal of the battery pack)
B1 Connection point for the positive terminal of the first cell
B2 Connection point for the positive terminal of the second cell
B+ Battery positive terminal (connect to the positive terminal of the battery pack)
P- Power output negative terminal (connect to the load or charger negative)
P+ Power output positive terminal (connect to the load or charger positive)

Usage Instructions

How to Use the BMS 3S in a Circuit

  1. Connect the Battery Pack:

    • Connect the negative terminal of the battery pack to the B- pin.
    • Connect the positive terminal of the first cell to the B1 pin.
    • Connect the positive terminal of the second cell to the B2 pin.
    • Connect the positive terminal of the battery pack to the B+ pin.
  2. Connect the Load and Charger:

    • Connect the negative terminal of the load or charger to the P- pin.
    • Connect the positive terminal of the load or charger to the P+ pin.
  3. Verify Connections:

    • Double-check all connections to ensure they are secure and correctly aligned with the pin configuration.
  4. Power On:

    • Once all connections are verified, the BMS will automatically begin monitoring and protecting the battery pack.

Important Considerations and Best Practices

  • Cell Matching: Ensure all cells in the battery pack have similar capacities and internal resistances to avoid imbalance.
  • Heat Management: Avoid placing the BMS in environments with excessive heat. Use proper ventilation if necessary.
  • Avoid Overloading: Do not exceed the maximum continuous current rating of the BMS.
  • Wiring: Use appropriate gauge wires to handle the current without overheating or voltage drops.
  • Testing: Before connecting the BMS to a load, test the voltage of each cell to ensure they are within the acceptable range.

Example: Using the BMS 3S with an Arduino UNO

The BMS 3S can be used with an Arduino UNO to monitor battery voltage. Below is an example code snippet to read the voltage of the battery pack using an analog pin:

// Define the analog pin connected to the battery voltage divider
const int batteryPin = A0;

// Voltage divider resistor values (in ohms)
const float R1 = 10000.0; // Resistor connected to battery positive
const float R2 = 1000.0;  // Resistor connected to ground

// Arduino reference voltage (5V for most boards)
const float referenceVoltage = 5.0;

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int rawValue = analogRead(batteryPin); // Read the analog value
  float voltage = (rawValue / 1023.0) * referenceVoltage; // Convert to voltage
  voltage = voltage * ((R1 + R2) / R2); // Adjust for voltage divider

  // Print the battery voltage to the Serial Monitor
  Serial.print("Battery Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

Note: Use a voltage divider to step down the battery voltage to a safe level for the Arduino's analog input pin. Adjust the resistor values (R1 and R2) as needed based on your battery voltage.

Troubleshooting and FAQs

Common Issues and Solutions

  1. BMS Not Powering On:

    • Cause: Incorrect wiring or loose connections.
    • Solution: Verify all connections and ensure the battery pack is properly connected.
  2. Overcharge or Over-discharge Protection Triggered:

    • Cause: Battery voltage exceeds or drops below the protection thresholds.
    • Solution: Check the individual cell voltages and recharge or replace cells as needed.
  3. Uneven Cell Balancing:

    • Cause: Cells in the battery pack have mismatched capacities or internal resistances.
    • Solution: Replace mismatched cells with ones of similar specifications.
  4. Excessive Heat:

    • Cause: Overloading the BMS or poor ventilation.
    • Solution: Reduce the load or improve heat dissipation.

FAQs

Q: Can the BMS 3S be used with other battery chemistries?
A: No, the BMS 3S is specifically designed for lithium-ion batteries. Using it with other chemistries may result in improper operation or damage.

Q: How do I know if the BMS is balancing the cells?
A: During balancing, the BMS will typically draw a small current from the higher-voltage cells. You can measure the cell voltages to confirm they are being equalized.

Q: Can I use the BMS 3S for a 2-cell or 4-cell battery pack?
A: No, the BMS 3S is designed for 3-cell configurations only. Using it with a different number of cells may cause improper operation or damage.

Q: What happens if I exceed the maximum current rating?
A: The BMS will trigger overcurrent protection and disconnect the load to prevent damage to the battery pack.
