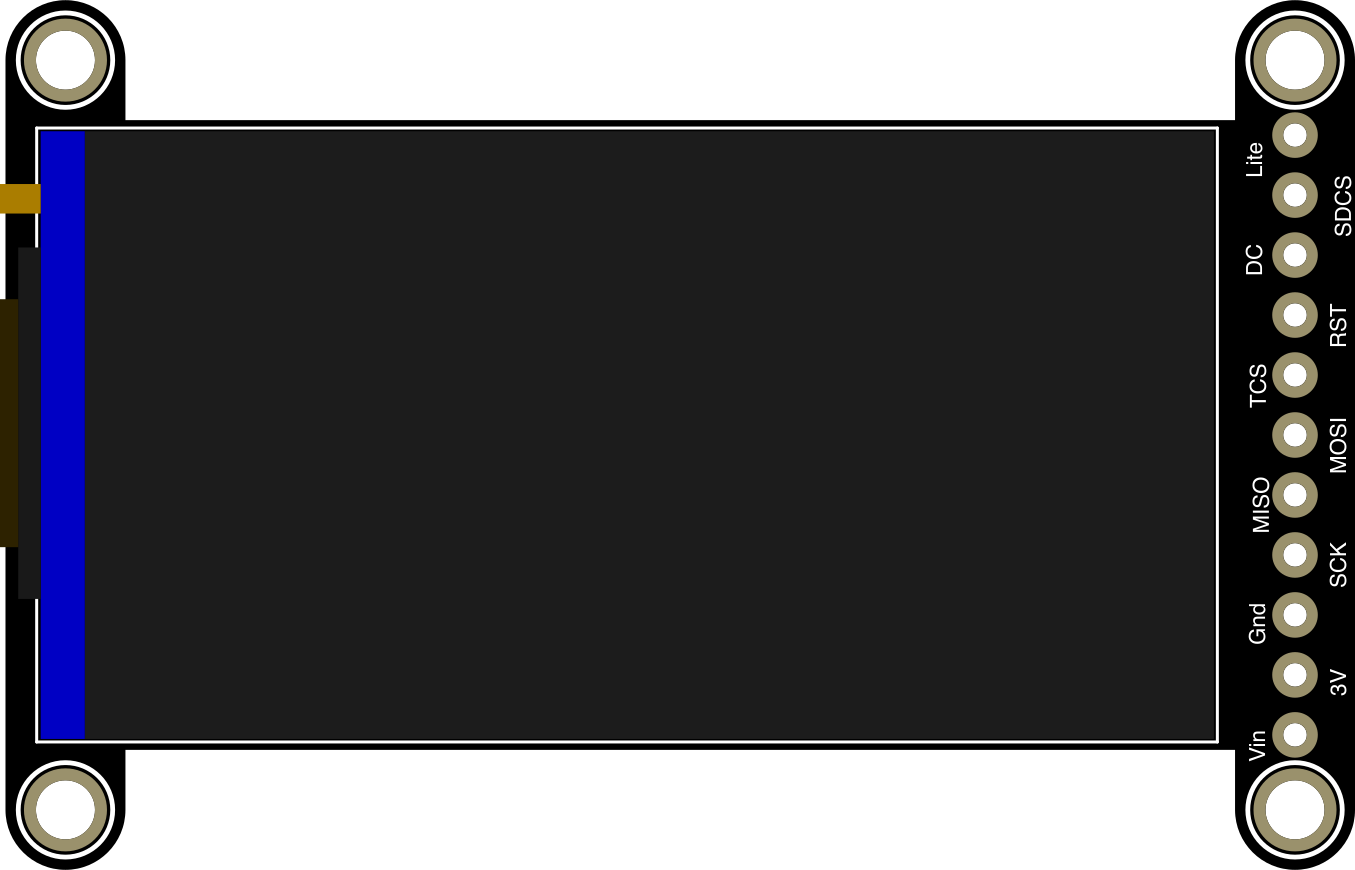

How to Use Adafruit 1.9in 320x170 TFT: Examples, Pinouts, and Specs

The Adafruit 1.9in 320x170 TFT (Manufacturer Part ID: 5394) is a compact, vibrant display module designed for embedded systems and DIY electronics projects. With a resolution of 320x170 pixels, this thin-film transistor (TFT) display offers crisp and colorful visuals, making it ideal for applications requiring graphical output in a small form factor. It is particularly well-suited for projects such as user interfaces, data visualization, and portable devices.

• Embedded systems requiring graphical displays
• Portable devices and handheld gadgets
• User interfaces for IoT devices
• Data visualization for sensors and microcontrollers
• Gaming or multimedia projects

The Adafruit 1.9in 320x170 TFT is built for versatility and ease of use. Below are its key technical details:

The display module features a straightforward pinout for easy integration with microcontrollers. Below is the pin configuration:

The Adafruit 1.9in 320x170 TFT is designed for seamless integration with microcontrollers such as the Arduino UNO. Below are the steps to use the display in your project:

1. Power Supply: Connect the VIN pin to a 3.3V or 5V power source and the GND pin to ground.
2. SPI Interface: Connect the SCK and MOSI pins to the corresponding SPI pins on your microcontroller.
3. Control Pins:
   • Connect the CS pin to a digital pin on your microcontroller.
   • Connect the DC pin to another digital pin for data/command selection.
   • Optionally, connect the RST pin to a digital pin for resetting the display.
4. Backlight: Connect the BL pin to a PWM-capable pin for brightness control, or tie it to VIN for full brightness.

Below is an example of how to use the Adafruit 1.9in 320x170 TFT with an Arduino UNO. This example uses the Adafruit GFX and Adafruit ST7735 libraries, which can be installed via the Arduino Library Manager.

#include <Adafruit_GFX.h>    // Core graphics library
#include <Adafruit_ST7735.h> // Hardware-specific library for ST7735

// Define pins for the TFT display
#define TFT_CS     10  // Chip Select pin
#define TFT_RST    9   // Reset pin
#define TFT_DC     8   // Data/Command pin

// Initialize the display object
Adafruit_ST7735 tft = Adafruit_ST7735(TFT_CS, TFT_DC, TFT_RST);

void setup() {
  // Initialize serial communication for debugging
  Serial.begin(9600);
  Serial.println("Initializing TFT...");

  // Initialize the display
  tft.initR(INITR_MINI160x80); // Use INITR_MINI160x80 for 320x170 displays
  tft.setRotation(1);         // Set display orientation (1 = landscape)

  // Clear the screen with a black background
  tft.fillScreen(ST77XX_BLACK);

  // Display a test message
  tft.setTextColor(ST77XX_WHITE);
  tft.setTextSize(1);
  tft.setCursor(10, 10);
  tft.println("Hello, TFT!");
}

void loop() {
  // Add your code here to update the display
}

• Voltage Levels: Ensure the logic level of your microcontroller matches the display's operating voltage (3.3V). Use a level shifter if necessary.
• Backlight Control: Use a PWM signal to adjust the backlight brightness for power efficiency.
• Library Compatibility: Always use the latest versions of the Adafruit GFX and ST7735 libraries for optimal performance.

1. No Display Output:

   • Verify all connections, especially the SPI pins (SCK, MOSI, CS, DC).
   • Ensure the VIN pin is receiving the correct voltage (3.3V or 5V).
   • Check that the RST pin is properly connected or tied high.

2. Flickering or Dim Display:

   • Ensure the backlight pin (BL) is connected to a stable voltage or PWM signal.
   • Check for loose connections or insufficient power supply.

3. Incorrect Colors or Orientation:

   • Verify the setRotation() parameter in your code.
   • Ensure the correct initialization command (INITR_MINI160x80) is used.

Q: Can I use this display with a 5V microcontroller?
A: Yes, the display supports 5V logic levels on the VIN pin, but the SPI pins operate at 3.3V. Use a level shifter for reliable communication.

Q: What is the maximum frame rate for this display?
A: The frame rate depends on the SPI clock speed. For optimal performance, use an SPI clock of up to 15 MHz.

Q: Can I use this display with platforms other than Arduino?
A: Yes, the display is compatible with other platforms like Raspberry Pi, ESP32, and STM32. Ensure you configure the SPI interface and use compatible libraries.

By following this documentation, you can effectively integrate the Adafruit 1.9in 320x170 TFT into your projects and troubleshoot common issues with ease.
