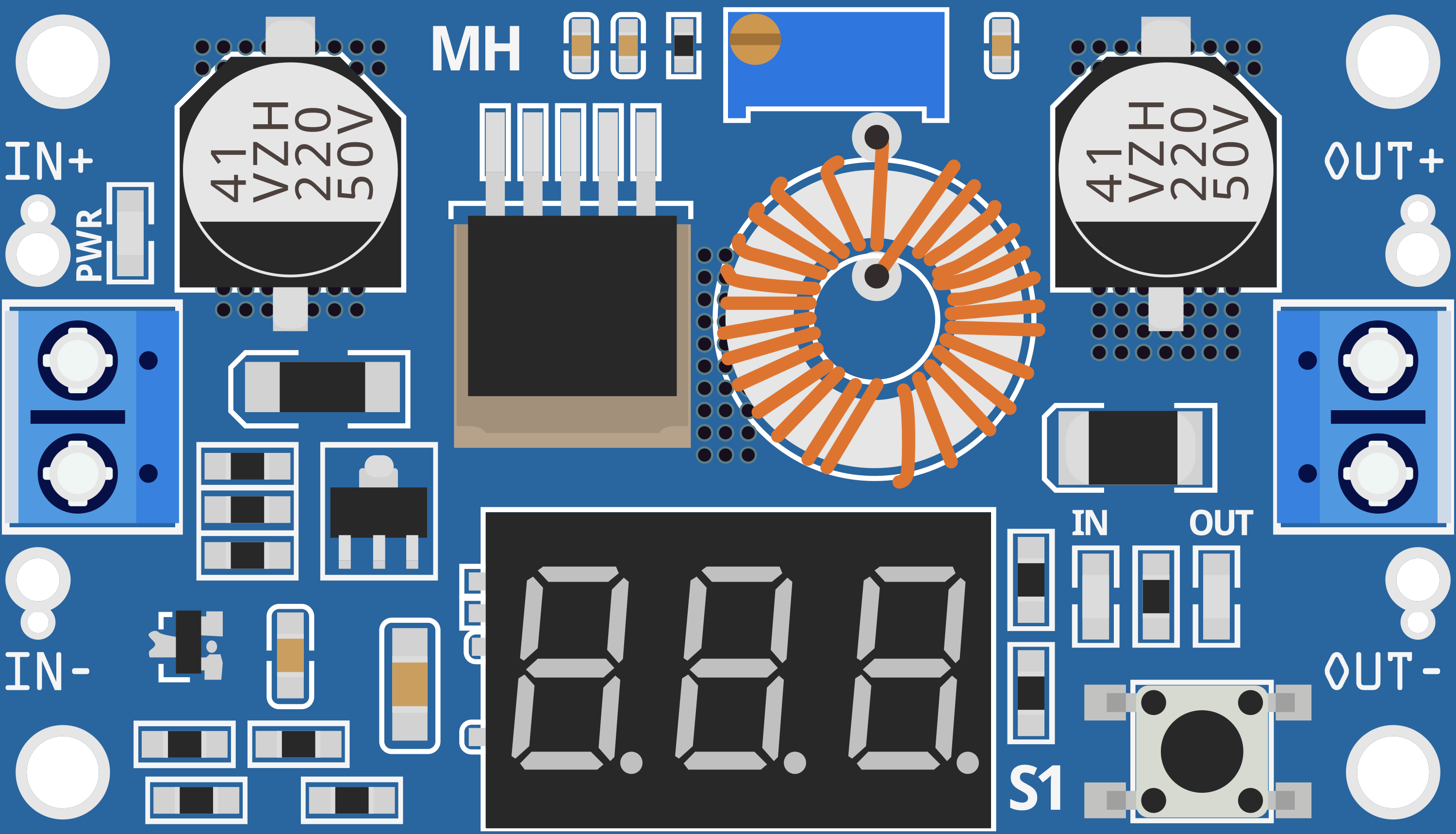

Image of XL4015 5A DC Buck Step-down
Cirkit Designer LogoDesign with XL4015 5A DC Buck Step-down in Cirkit Designer

Introduction

The XL4015 is a high-efficiency DC-DC buck converter designed to step down voltage from a higher input to a lower output. It supports a maximum output current of 5A and features adjustable output voltage, thermal protection, and a wide input voltage range. This makes it an ideal choice for applications requiring efficient power conversion, such as battery chargers, LED drivers, and regulated power supplies.
