How to Use XT60 Female Panel Mount: Examples, Pinouts, and Specs

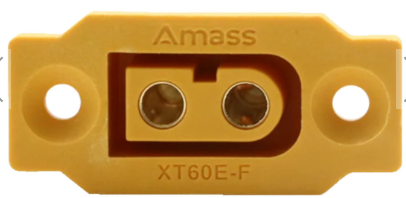

The XT60 Female Panel Mount (XT60 F-PNL), manufactured by Amass, is a robust and reliable connector designed for high-current applications. It features a secure locking mechanism and is compatible with XT60 male connectors. This component is widely used in RC vehicles, drones, battery packs, and other electronic systems requiring a durable and efficient power connection.

• Remote-controlled (RC) vehicles and drones
• Lithium Polymer (LiPo) battery connections
• Electric bikes and scooters
• Power distribution systems
• DIY electronics projects requiring high-current connectors

The XT60 Female Panel Mount is engineered to handle high currents while maintaining a secure and stable connection. Below are its key technical details:

The XT60 Female Panel Mount has two primary terminals for power connections:

The XT60 Female Panel Mount is straightforward to use and install. Follow the steps below to integrate it into your project:

1. Panel Mounting:

   • Drill a hole in the panel or enclosure where the connector will be mounted. Ensure the hole matches the dimensions of the XT60 F-PNL.
   • Insert the connector into the hole and secure it using screws or the provided mounting hardware.

2. Wiring:

   • Solder the positive and negative wires to the respective terminals on the back of the connector.
   • Use heat shrink tubing to insulate the soldered connections for safety and durability.

3. Connection:

   • Plug the XT60 male connector into the female panel mount. Ensure the locking mechanism clicks into place for a secure connection.

• Current Handling: Ensure the connected wires and components can handle the rated current (60A) to avoid overheating or damage.
• Polarity: Double-check the polarity of the connections to prevent short circuits or damage to connected devices.
• Mounting: Use appropriate screws and tools to securely fasten the connector to the panel, preventing movement or loosening during operation.

While the XT60 Female Panel Mount is not directly connected to an Arduino UNO, it can be used in projects where the Arduino controls high-current devices powered through the XT60 connector. Below is an example of using the XT60 F-PNL in a motor control circuit:

/*
  Example: Controlling a motor powered by an XT60-connected battery
  using an Arduino UNO and a motor driver.
*/

// Define motor control pins
const int motorPin1 = 9; // Motor driver input 1
const int motorPin2 = 10; // Motor driver input 2

void setup() {
  // Set motor pins as outputs
  pinMode(motorPin1, OUTPUT);
  pinMode(motorPin2, OUTPUT);
}

void loop() {
  // Rotate motor in one direction
  digitalWrite(motorPin1, HIGH);
  digitalWrite(motorPin2, LOW);
  delay(2000); // Run for 2 seconds

  // Stop the motor
  digitalWrite(motorPin1, LOW);
  digitalWrite(motorPin2, LOW);
  delay(1000); // Pause for 1 second

  // Rotate motor in the opposite direction
  digitalWrite(motorPin1, LOW);
  digitalWrite(motorPin2, HIGH);
  delay(2000); // Run for 2 seconds

  // Stop the motor
  digitalWrite(motorPin1, LOW);
  digitalWrite(motorPin2, LOW);
  delay(1000); // Pause for 1 second
}

1. Loose Connection:

   • Cause: Improper mounting or incomplete insertion of the male connector.
   • Solution: Ensure the connector is securely mounted and the male connector is fully inserted until the locking mechanism clicks.

2. Overheating:

   • Cause: Exceeding the rated current or using undersized wires.
   • Solution: Verify that the current does not exceed 60A and use appropriately rated wires.

3. Polarity Reversal:

   • Cause: Incorrect wiring of the positive and negative terminals.
   • Solution: Double-check the polarity before powering the circuit.

4. Connector Damage:

   • Cause: Excessive force during connection or disconnection.
   • Solution: Handle the connector gently and avoid applying excessive force.

Q1: Can the XT60 Female Panel Mount handle AC voltage?
A1: The XT60 F-PNL is designed for DC voltage applications. Using it with AC voltage is not recommended.

Q2: Is the connector waterproof?
A2: No, the XT60 F-PNL is not waterproof. Use it in dry environments or enclosures to protect it from moisture.

Q3: Can I use this connector for currents higher than 60A?
A3: No, exceeding the rated current of 60A can cause overheating and damage. Use a connector with a higher current rating for such applications.

Q4: What tools are required for installation?
A4: You will need a soldering iron, heat shrink tubing, a drill (for panel mounting), and screws or mounting hardware.

By following this documentation, you can effectively integrate the XT60 Female Panel Mount into your high-current electronic projects.
