How to Use Lithium-ion battery 7.4V 2000mAh: Examples, Pinouts, and Specs

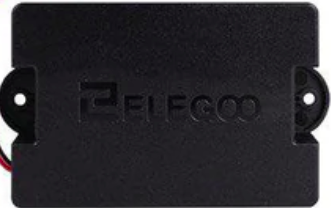

The Lithium-ion Battery 7.4V 2000mAh by Elegoo is a rechargeable power source designed for applications requiring a compact, lightweight, and high-capacity energy solution. With a nominal voltage of 7.4V and a capacity of 2000mAh, this battery is ideal for powering portable electronics, robotics, electric vehicles, and other devices that demand reliable and efficient energy storage.

• Portable electronic devices (e.g., handheld gadgets, cameras)
• Robotics and DIY projects
• Electric vehicles and drones
• Backup power supplies
• Arduino-based projects requiring a 7.4V power source

Below are the key technical details of the Elegoo Lithium-ion Battery 7.4V 2000mAh:

The battery typically comes with a two-pin connector (e.g., JST or XT60). Below is the pin configuration:

1. Connection: Connect the battery's positive terminal (+) to the positive input of your circuit and the negative terminal (-) to the ground. Ensure the connector type matches your device or use an adapter if necessary.
2. Charging: Use a compatible Lithium-ion battery charger with a maximum charging voltage of 8.4V and a recommended charging current of 1A. Avoid overcharging or using an incompatible charger.
3. Discharge: Ensure the connected load does not exceed the maximum discharge rate of 4A to prevent overheating or damage.
4. Protection Circuit: For safety, use a Battery Management System (BMS) or a protection circuit to prevent overcharging, over-discharging, and short circuits.

• Avoid Deep Discharge: Do not allow the battery voltage to drop below 6.0V, as this can permanently damage the cells.
• Temperature Monitoring: Avoid using or charging the battery in extreme temperatures. Prolonged exposure to high heat can degrade the battery's lifespan.
• Storage: Store the battery at ~50% charge in a cool, dry place if not in use for extended periods.
• Polarity Check: Always verify the polarity before connecting the battery to a circuit to avoid damage to the battery or device.

To power an Arduino UNO with this battery, you can connect it to the Arduino's VIN and GND pins. Below is an example circuit and code to read the battery voltage using an analog pin:

• Connect the battery's positive terminal to the Arduino's VIN pin.
• Connect the battery's negative terminal to the Arduino's GND pin.
• Use a voltage divider circuit (e.g., 10kΩ and 10kΩ resistors) to step down the battery voltage for safe measurement on an analog pin.

// Arduino code to read battery voltage using a voltage divider
const int batteryPin = A0; // Analog pin connected to the voltage divider
const float resistorRatio = 2.0; // Ratio of the voltage divider (10kΩ:10kΩ)
const float referenceVoltage = 5.0; // Arduino's reference voltage (5V)

void setup() {
  Serial.begin(9600); // Initialize serial communication
}

void loop() {
  int rawValue = analogRead(batteryPin); // Read analog value
  float voltage = (rawValue / 1023.0) * referenceVoltage * resistorRatio;
  Serial.print("Battery Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");
  delay(1000); // Wait 1 second before the next reading
}

1. Battery Not Charging

   • Cause: Incompatible or faulty charger.
   • Solution: Use a charger designed for 7.4V Lithium-ion batteries with a maximum charging voltage of 8.4V.

2. Battery Drains Quickly

   • Cause: Excessive load or degraded battery cells.
   • Solution: Ensure the load does not exceed the maximum discharge rate. Replace the battery if it has reached the end of its lifespan.

3. Overheating During Use

   • Cause: High discharge current or poor ventilation.
   • Solution: Reduce the load or improve airflow around the battery.

4. Arduino Not Powering On

   • Cause: Incorrect connection or low battery voltage.
   • Solution: Verify the polarity and ensure the battery voltage is above 6.0V.

Q: Can I use this battery to power a 5V device?
A: Yes, but you will need a voltage regulator or DC-DC step-down converter to safely step down the 7.4V to 5V.

Q: How long will the battery last on a single charge?
A: The runtime depends on the load. For example, a 1A load will last approximately 2 hours (2000mAh ÷ 1000mA).

Q: Is it safe to leave the battery connected to the charger?
A: No, it is not recommended to leave the battery connected to the charger after it is fully charged, as this may reduce its lifespan.

Q: Can I connect multiple batteries in series or parallel?
A: Yes, but ensure you use a proper BMS to balance the cells and prevent overcharging or over-discharging.
