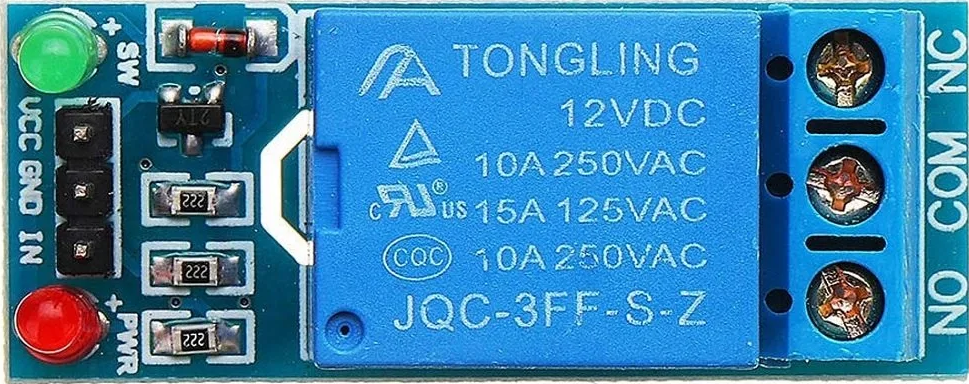

How to Use 12V SINGLE CHANNEL RELAY: Examples, Pinouts, and Specs

The 12V Single Channel Relay is an electromechanical switch that operates at 12 volts. It allows a low-power control signal to control a higher power circuit, making it ideal for applications where electrical isolation and high-power switching are required. The relay consists of an electromagnet, a set of contacts, and a spring mechanism. When the control signal is applied, the electromagnet activates, closing or opening the contacts to control the connected circuit.

• Home automation systems (e.g., controlling lights, fans, or appliances)
• Industrial control systems
• Motor control circuits
• IoT projects for switching high-power devices
• Automotive electronics

• Operating Voltage (Coil): 12V DC
• Trigger Voltage: Typically 3.3V or 5V (depending on the control circuit)
• Switching Voltage (Load): Up to 250V AC or 30V DC
• Switching Current (Load): Up to 10A
• Relay Type: SPDT (Single Pole Double Throw)
• Isolation: Electrical isolation between control and load circuits
• Dimensions: Varies by manufacturer, typically compact for PCB mounting

The 12V Single Channel Relay module typically has the following pins:

1. Power the Relay Module:

   • Connect the VCC pin to a 12V DC power supply.
   • Connect the GND pin to the ground of the power supply.

2. Control Signal:

   • Connect the IN pin to a microcontroller (e.g., Arduino UNO) or any other control circuit.
   • Ensure the control signal voltage matches the relay module's input requirements (3.3V or 5V).

3. Load Connection:

   • Connect the load's live wire to the COM terminal.
   • Connect the load's other wire to either the NO or NC terminal, depending on the desired behavior:
     • Use the NO terminal if the load should be off by default and turn on when the relay is activated.
     • Use the NC terminal if the load should be on by default and turn off when the relay is activated.

4. Circuit Isolation:

   • Ensure proper electrical isolation between the control and load sides to prevent damage to the control circuit.

• Always check the relay's voltage and current ratings before connecting a load.
• Use a flyback diode across the relay coil to protect the control circuit from voltage spikes.
• Avoid switching loads that exceed the relay's maximum ratings to prevent damage.
• Ensure proper insulation and spacing when working with high-voltage loads.

Below is an example of how to control a 12V Single Channel Relay using an Arduino UNO:

// Example code to control a 12V Single Channel Relay with Arduino UNO

const int relayPin = 7; // Pin connected to the relay module's IN pin

void setup() {
  pinMode(relayPin, OUTPUT); // Set the relay pin as an output
  digitalWrite(relayPin, LOW); // Ensure the relay is off initially
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn the relay on
  delay(5000); // Keep the relay on for 5 seconds
  digitalWrite(relayPin, LOW); // Turn the relay off
  delay(5000); // Keep the relay off for 5 seconds
}

Note: Ensure the Arduino's ground (GND) is connected to the relay module's ground (GND).

1. Relay Not Activating:

   • Cause: Insufficient control signal voltage.
   • Solution: Verify that the control signal voltage matches the relay's input requirements (3.3V or 5V).

2. Load Not Switching:

   • Cause: Incorrect wiring of the load terminals.
   • Solution: Double-check the connections to the COM, NO, and NC terminals.

3. Relay Clicking but No Load Response:

   • Cause: Load exceeds the relay's maximum current or voltage rating.
   • Solution: Ensure the load is within the relay's rated specifications.

4. Voltage Spikes Damaging the Circuit:

   • Cause: Inductive kickback from the relay coil.
   • Solution: Add a flyback diode (e.g., 1N4007) across the relay coil terminals.

Q1: Can I use the relay with a 5V power supply?
A1: No, the relay coil requires a 12V DC power supply to operate. However, the control signal can be 3.3V or 5V, depending on the module.

Q2: Is the relay suitable for switching AC loads?
A2: Yes, the relay can switch AC loads up to 250V, provided the current does not exceed 10A.

Q3: Can I control the relay directly with a sensor?
A3: No, most sensors cannot provide sufficient current to drive the relay. Use a microcontroller or a transistor as an intermediary.

Q4: How do I know if the relay is working?
A4: Most relay modules have an onboard LED that lights up when the relay is activated. Additionally, you may hear a clicking sound when the relay switches.
