The SEN0232 is a capacitive soil moisture sensor designed to measure the volumetric water content in soil. Unlike resistive soil moisture sensors, the SEN0232 is corrosion-resistant, ensuring a longer lifespan and more reliable performance. It outputs an analog voltage that corresponds to the soil's moisture level, making it easy to interface with microcontrollers and other analog input devices.
Explore Projects Built with SEN0232
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is an emergency alert system that uses a NUCLEO-F072RB microcontroller to send SMS alerts and make calls via a SIM800L GSM module, while obtaining location data from a GPS NEO 6M module. The system is powered by a Li-ion battery and includes a TP4056 module for battery charging and protection, with a rocker switch to control power to the microcontroller.
This is a solar-powered monitoring and control system with automatic power source selection, environmental sensing, and communication capabilities. It uses an ESP32 microcontroller to process inputs from gas, flame, and temperature sensors, and to manage outputs like an LCD display, LEDs, and a buzzer. The system can communicate via a SIM900A module and switch between solar and AC power sources using an ATS.
This circuit is a power monitoring system that uses an ESP32C3 microcontroller to collect power usage data from slave devices via WiFi and SMS. The collected data is displayed on a 0.96" OLED screen, and the system is powered by an AC-DC converter module. Additionally, the circuit includes a SIM800L GSM module for SMS communication and LEDs for status indication.
This is a smart environmental monitoring and control system featuring an ESP32 microcontroller interfaced with a PZEM004T for power monitoring, relay modules for actuating bulbs and a fan, and an LCD for user interface. It includes flame, gas, and vibration sensors for safety monitoring purposes.
The SEN0232 is a robust and efficient sensor with the following key specifications:
Parameter
Value
Operating Voltage
3.3V to 5.5V
Output Voltage Range
0V to 3V (analog output)
Current Consumption
< 20mA
Interface Type
Analog
Dimensions
98mm x 23mm x 3mm
Operating Temperature
-40°C to 85°C
Moisture Measurement Range
0% to 100% (relative moisture)
Pin Configuration and Descriptions

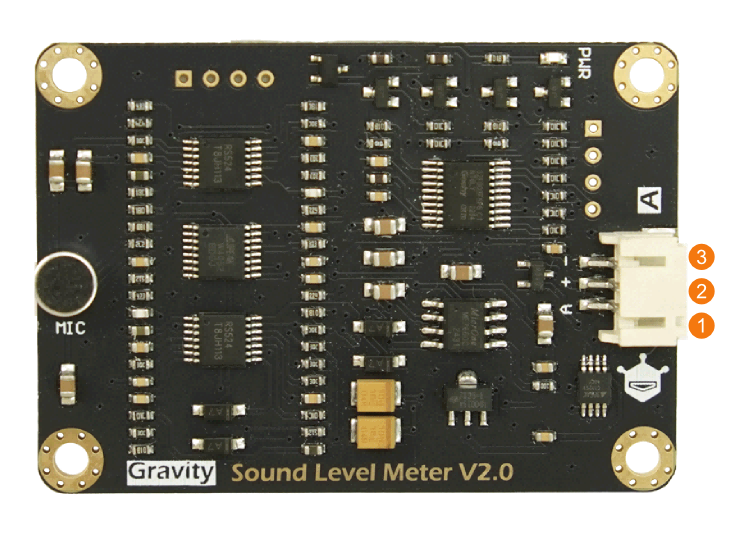

The SEN0232 has a simple 3-pin interface:
Pin
Name
Description
1
VCC
Power supply input (3.3V to 5.5V)
2
GND
Ground connection
3
AOUT
Analog output voltage proportional to soil moisture
Usage Instructions
How to Use the SEN0232 in a Circuit
Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to the ground of your circuit.
Read the Analog Output: Connect the AOUT pin to an analog input pin of a microcontroller (e.g., Arduino UNO). The output voltage will vary between 0V (dry soil) and 3V (wet soil).
Calibrate the Sensor: To ensure accurate readings, calibrate the sensor by measuring the output voltage in dry and fully saturated soil. Use these values to map the analog readings to a percentage moisture level.
Important Considerations and Best Practices
Avoid Submerging the Sensor: The SEN0232 is designed for soil moisture measurement and should not be submerged in water.
Placement in Soil: Insert the sensor into the soil vertically, ensuring the sensing area is fully covered by soil for accurate readings.
Power Supply: Use a stable power source to avoid fluctuations in the analog output.
Signal Noise: If the output signal is noisy, consider adding a capacitor (e.g., 0.1µF) between the AOUT pin and GND to stabilize the signal.
Example Code for Arduino UNO
The following code demonstrates how to read the SEN0232's analog output using an Arduino UNO and display the soil moisture level as a percentage on the serial monitor:
// Define the analog pin connected to the SEN0232 sensor
const int sensorPin = A0;
void setup() {
Serial.begin(9600); // Initialize serial communication at 9600 baud
}
void loop() {
int sensorValue = analogRead(sensorPin); // Read the analog value from the sensor
float voltage = sensorValue * (5.0 / 1023.0); // Convert the reading to voltage
// Map the voltage to a percentage (calibration may be required for accuracy)
int moisturePercent = map(sensorValue, 0, 1023, 0, 100);
// Print the results to the serial monitor
Serial.print("Soil Moisture: ");
Serial.print(moisturePercent);
Serial.println("%");
delay(1000); // Wait for 1 second before taking the next reading
}
Note: The map() function assumes a linear relationship between the sensor's output and soil moisture. For more precise measurements, calibrate the sensor and adjust the mapping accordingly.
Troubleshooting and FAQs
Common Issues and Solutions
No Output or Incorrect Readings:
Ensure the sensor is properly powered (3.3V to 5.5V).
Check all connections for loose wires or incorrect pin assignments.
Verify that the sensor is inserted into the soil correctly.
Fluctuating or Noisy Readings:
Add a decoupling capacitor (e.g., 0.1µF) between the AOUT pin and GND.
Ensure the power supply is stable and free from noise.
Sensor Not Responding:
Confirm that the sensor is not damaged or corroded.
Test the sensor in a different soil sample to rule out environmental factors.
FAQs
Q: Can the SEN0232 be used with a 3.3V microcontroller?
A: Yes, the SEN0232 operates within a voltage range of 3.3V to 5.5V, making it compatible with 3.3V microcontrollers like the ESP32.
Q: How do I calibrate the sensor for accurate readings?
A: Measure the sensor's output voltage in completely dry soil and fully saturated soil. Use these values to map the analog readings to a percentage moisture level.
Q: Is the SEN0232 waterproof?
A: The SEN0232 is not fully waterproof. It is designed for soil moisture measurement and should not be submerged in water.
Q: Can the sensor be used outdoors?
A: Yes, the SEN0232 can be used outdoors, but it is recommended to protect the connections and ensure the sensor is not exposed to prolonged waterlogging.
By following this documentation, you can effectively integrate the SEN0232 into your projects and achieve reliable soil moisture measurements.
