How to Use Motor 3600 1800kv: Examples, Pinouts, and Specs

The Motor 3600 1800kv is a high-performance brushless motor designed for applications requiring high speed, efficiency, and reliability. With a maximum RPM of 3600 and a KV rating of 1800 (indicating 1800 RPM per volt), this motor is ideal for use in drones, RC vehicles, robotics, and other high-speed applications. Its brushless design ensures minimal wear and tear, making it a durable and efficient choice for demanding projects.

• Drones and UAVs: Provides high thrust and efficiency for flight.
• RC Vehicles: Delivers high-speed performance for cars, boats, and planes.
• Robotics: Suitable for high-speed robotic arms or mobile platforms.
• Industrial Equipment: Used in applications requiring precise and efficient motor control.

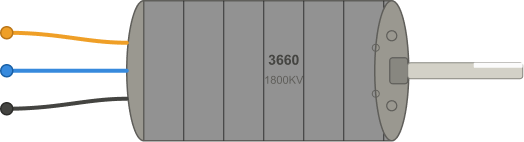

The Motor 3600 1800kv has three wires for connection, as is standard for brushless motors. These wires are typically color-coded for easy identification.

Note: The motor does not have a built-in controller. It must be connected to an Electronic Speed Controller (ESC) for operation.

1. Connect to an ESC:

   • The motor must be connected to a compatible ESC. Match the three motor wires (Red, Yellow, Black) to the ESC output wires (A, B, C). The order of connection determines the motor's rotation direction.
   • If the motor spins in the wrong direction, swap any two wires to reverse the rotation.

2. Power Supply:

   • Use a LiPo battery within the operating voltage range (7.4V to 14.8V). Ensure the battery can supply sufficient current (at least 30A).

3. Control Signal:

   • The ESC requires a PWM signal to control the motor speed. This signal can be generated using a microcontroller like an Arduino.

4. Mounting:

   • Secure the motor using the mounting holes (16 mm x 19 mm pattern). Ensure proper alignment to avoid vibrations.

5. Cooling:

   • Ensure adequate airflow around the motor to prevent overheating during operation.

Below is an example of how to control the Motor 3600 1800kv using an Arduino UNO and a compatible ESC.

#include <Servo.h> // Include the Servo library to control the ESC

Servo esc; // Create a Servo object to control the ESC

void setup() {
  esc.attach(9); // Connect the ESC signal wire to Arduino pin 9
  esc.writeMicroseconds(1000); // Send minimum throttle signal to arm the ESC
  delay(2000); // Wait for 2 seconds to ensure the ESC is armed
}

void loop() {
  esc.writeMicroseconds(1500); // Set throttle to 50% (1500 µs)
  delay(5000); // Run the motor at 50% throttle for 5 seconds

  esc.writeMicroseconds(1000); // Set throttle to 0% (1000 µs)
  delay(5000); // Stop the motor for 5 seconds
}

Important Notes:

• Always ensure the motor is securely mounted before powering it on.
• Disconnect the power supply when making wiring changes.
• Use a current-limiting power supply or fuse to protect the motor and ESC.

1. Can I use this motor with a 6V power supply?

   • No, the minimum operating voltage is 7.4V. Using a lower voltage may result in poor performance or failure to operate.

2. What ESC should I use with this motor?

   • Use an ESC rated for at least 30A and compatible with 2S-4S LiPo batteries.

3. How do I reverse the motor's rotation?

   • Swap any two of the three motor wires connected to the ESC.

4. Can I run this motor continuously at maximum RPM?

   • Yes, but ensure proper cooling to prevent overheating.

5. Is this motor waterproof?

   • No, the Motor 3600 1800kv is not waterproof. Avoid exposing it to water or moisture.

This concludes the documentation for the Motor 3600 1800kv. For further assistance, refer to the manufacturer's support resources or contact technical support.
