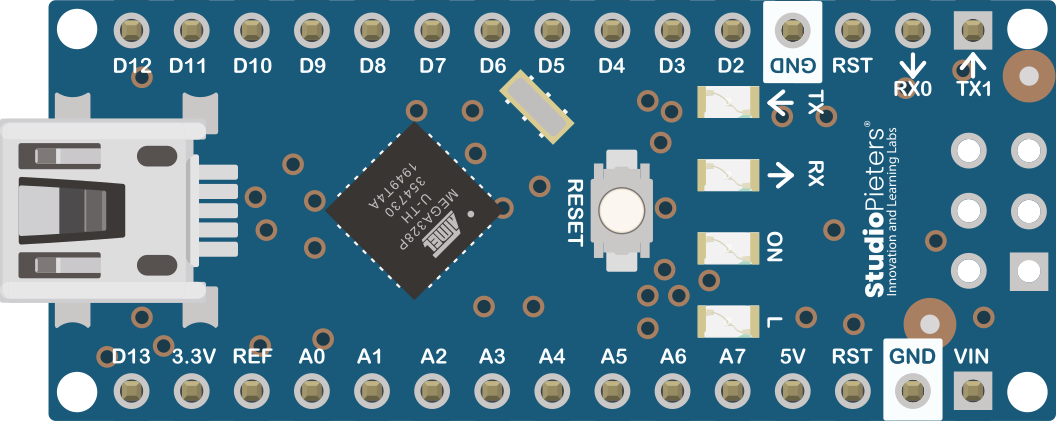

Image of NANO
Cirkit Designer LogoDesign with NANO in Cirkit Designer

Introduction

The NANO is a compact microcontroller board based on the ATmega328P microcontroller. It is designed for small projects and prototyping, offering a balance of functionality and size. The NANO is highly versatile and compatible with a wide range of sensors, modules, and other electronic components. Its small form factor makes it ideal for embedded systems and portable applications.

Explore Projects Built with NANO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Wireless Input Controller with Joysticks and Sensors
Image of TRANSMITTER: A project utilizing NANO in a practical application
This is a multifunctional interactive device featuring dual-axis control via PS2 joysticks, visual feedback through an OLED display, and wireless communication using an NRF24L01 module. It includes a piezo buzzer for sound, tactile buttons for additional user input, rotary potentiometers for analog control, and an MPU-6050 for motion sensing. The Arduino Nano serves as the central processing unit, coordinating input and output functions, with capacitors for power stability.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Controlled Obstacle Avoidance Robot with IR and Ultrasonic Sensors
Image of LFOA Circuit Diagram: A project utilizing NANO in a practical application
This is a robotic control system featuring an Arduino Nano that interfaces with two IR sensors, an ultrasonic sensor, and a servomotor for various sensing and actuation tasks. It controls two DC gear motors through an L298N motor driver, all powered by a 12V battery. The system's functionality is determined by the embedded code running on the Arduino Nano, which manages sensor inputs and actuator outputs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based Smart Sensor System with RS485 Communication and RGB LED Control
Image of NanoSlave: A project utilizing NANO in a practical application
This circuit features an Arduino Nano that interfaces with various sensors and modules, including an RS485 communication module, a WS2812 RGB LED strip, an HC-SR04 ultrasonic sensor, and an SW-420 vibration sensor. The Arduino Nano processes sensor data and controls the LED strip, while also managing communication via RS485 and logging events with a real-time clock (RTC) module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
Image of RTC for Keyboard: A project utilizing NANO in a practical application
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with NANO

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of TRANSMITTER: A project utilizing NANO in a practical application
Arduino Nano-Based Wireless Input Controller with Joysticks and Sensors
This is a multifunctional interactive device featuring dual-axis control via PS2 joysticks, visual feedback through an OLED display, and wireless communication using an NRF24L01 module. It includes a piezo buzzer for sound, tactile buttons for additional user input, rotary potentiometers for analog control, and an MPU-6050 for motion sensing. The Arduino Nano serves as the central processing unit, coordinating input and output functions, with capacitors for power stability.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of LFOA Circuit Diagram: A project utilizing NANO in a practical application
Arduino Nano-Controlled Obstacle Avoidance Robot with IR and Ultrasonic Sensors
This is a robotic control system featuring an Arduino Nano that interfaces with two IR sensors, an ultrasonic sensor, and a servomotor for various sensing and actuation tasks. It controls two DC gear motors through an L298N motor driver, all powered by a 12V battery. The system's functionality is determined by the embedded code running on the Arduino Nano, which manages sensor inputs and actuator outputs.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of NanoSlave: A project utilizing NANO in a practical application
Arduino Nano-Based Smart Sensor System with RS485 Communication and RGB LED Control
This circuit features an Arduino Nano that interfaces with various sensors and modules, including an RS485 communication module, a WS2812 RGB LED strip, an HC-SR04 ultrasonic sensor, and an SW-420 vibration sensor. The Arduino Nano processes sensor data and controls the LED strip, while also managing communication via RS485 and logging events with a real-time clock (RTC) module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of RTC for Keyboard: A project utilizing NANO in a practical application
Arduino Nano-Based OLED Clock with RTC and LiPo Battery Charging
This circuit features an Arduino Nano connected to an OLED display and a DS3231 real-time clock (RTC) module for displaying the current time. The Arduino Nano is powered through a toggle switch connected to its VIN pin, with power supplied by a TP4056 charging module that charges and manages two 3.7V LiPo batteries connected in parallel. The OLED and RTC module communicate with the Arduino via I2C, with shared SDA and SCL lines connected to the A4 and A5 pins of the Arduino, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • DIY electronics and prototyping
  • Robotics and automation projects
  • IoT (Internet of Things) devices
  • Wearable technology
  • Educational tools for learning microcontroller programming

Technical Specifications

The NANO is equipped with the ATmega328P microcontroller and features the following specifications:

Specification Details
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (recommended) 7-12V
Input Voltage (limits) 6-20V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
Dimensions 18 x 45 mm
Weight ~7 g

Pin Configuration and Descriptions

The NANO has a total of 30 pins, including power, analog, and digital pins. Below is the pin configuration:

Power Pins

Pin Description
VIN Input voltage to the board when using an external power source (7-12V).
5V Regulated 5V output from the onboard voltage regulator.
3.3V Regulated 3.3V output (maximum current: 50 mA).
GND Ground pins.
RESET Resets the microcontroller when pulled LOW.

Digital Pins

Pin Description
D0-D13 Digital I/O pins. Pins D3, D5, D6, D9, D10, and D11 support PWM.

Analog Pins

Pin Description
A0-A7 Analog input pins. Can also be used as digital I/O.

Communication Pins

Pin Description
TX (D1) Transmit pin for serial communication.
RX (D0) Receive pin for serial communication.
A4 SDA pin for I2C communication.
A5 SCL pin for I2C communication.

Usage Instructions

How to Use the NANO in a Circuit

  1. Powering the Board:

    • Use the USB Mini-B connector to power the board and upload code.
    • Alternatively, supply 7-12V to the VIN pin or use a regulated 5V supply to the 5V pin.
  2. Connecting Components:

    • Connect sensors, actuators, or other peripherals to the digital and analog pins.
    • Use the GND pin for the ground connection of all components.
  3. Programming the NANO:

    • Install the Arduino IDE on your computer.
    • Select "Arduino Nano" as the board type and choose the correct processor (ATmega328P).
    • Connect the NANO to your computer via a USB cable and upload your code.

Important Considerations and Best Practices

  • Avoid exceeding the maximum current rating (40 mA) for each I/O pin to prevent damage.
  • Use pull-up or pull-down resistors for stable input readings on digital pins.
  • Ensure proper decoupling capacitors are used when connecting external components to reduce noise.
  • When using the NANO with an external power source, ensure the voltage is within the recommended range (7-12V).

Example Code for Arduino UNO-Compatible Projects

The following example demonstrates how to blink an LED connected to pin D13:

// Blink an LED connected to pin D13
// This example toggles the LED ON and OFF every second.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED ON
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED OFF
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The NANO is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Install the correct USB-to-serial driver (e.g., CH340 or FTDI driver).
  2. Code upload fails with an error:

    • Verify that the correct board and processor are selected in the Arduino IDE.
    • Check the COM port assigned to the NANO in the IDE.
    • Press the RESET button on the NANO before uploading the code.
  3. Components connected to the NANO are not working:

    • Double-check the wiring and connections.
    • Ensure the components are compatible with the NANO's voltage levels.
  4. The NANO overheats or behaves erratically:

    • Verify that the input voltage does not exceed the recommended range.
    • Check for short circuits or excessive current draw from connected components.

FAQs

Q: Can the NANO be powered directly from a battery?
A: Yes, you can power the NANO using a battery. Connect the battery's positive terminal to the VIN pin and the negative terminal to GND. Ensure the battery voltage is within the range of 7-12V.

Q: Is the NANO compatible with Arduino UNO shields?
A: No, the NANO does not have the same form factor as the Arduino UNO, so it is not directly compatible with UNO shields. However, you can use jumper wires to connect the shield to the NANO.

Q: Can I use the NANO for I2C communication?
A: Yes, the NANO supports I2C communication. Use pins A4 (SDA) and A5 (SCL) for connecting I2C devices.

Q: How do I reset the NANO?
A: You can reset the NANO by pressing the onboard RESET button or by connecting the RESET pin to GND momentarily.
