How to Use Solar Panel: Examples, Pinouts, and Specs

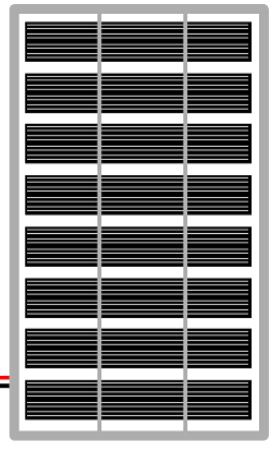

A solar panel is a device that converts sunlight into electrical energy using photovoltaic (PV) cells. These cells are made of semiconductor materials that generate electricity when exposed to sunlight. Solar panels are widely used in renewable energy systems to provide clean and sustainable power.

• Residential and commercial solar power systems
• Off-grid power solutions for remote areas
• Solar-powered devices (e.g., calculators, lights, and chargers)
• Integration with battery storage systems
• Solar water pumping systems
• Portable solar chargers for outdoor activities

Below are the general technical specifications for a typical solar panel. Note that actual values may vary depending on the specific model and manufacturer.

Solar panels typically have two output terminals for electrical connections:

1. Positioning the Solar Panel: Place the solar panel in a location with maximum sunlight exposure. Ensure it is angled correctly based on your geographic location to optimize energy generation.
2. Connecting to a Load or Battery:
   • Use a charge controller to regulate the voltage and current from the solar panel before connecting it to a battery or load.
   • Connect the positive (+) terminal of the solar panel to the positive input of the charge controller.
   • Connect the negative (-) terminal of the solar panel to the negative input of the charge controller.
   • From the charge controller, connect the output terminals to the battery or load.
3. Wiring Considerations:
   • Use appropriate gauge wires to handle the current output of the solar panel.
   • Ensure all connections are secure and weatherproof if used outdoors.

• Avoid Shading: Even partial shading on the solar panel can significantly reduce its efficiency.
• Use a Diode: Install a blocking diode to prevent reverse current flow from the battery to the solar panel at night.
• Monitor Voltage and Current: Use a multimeter or monitoring system to ensure the solar panel is operating within its specified range.
• Clean Regularly: Dust and debris can reduce the panel's efficiency. Clean the surface periodically with water and a soft cloth.
• Temperature Effects: High temperatures can reduce efficiency. Ensure proper ventilation around the panel.

You can use a solar panel to power an Arduino UNO through a battery and a charge controller. Below is an example code to read the voltage from the solar panel using an analog pin.

// Example code to read solar panel voltage using Arduino UNO
const int solarPin = A0;  // Analog pin connected to the solar panel output
float voltage = 0.0;      // Variable to store the calculated voltage

void setup() {
  Serial.begin(9600);  // Initialize serial communication
}

void loop() {
  int sensorValue = analogRead(solarPin);  // Read the analog value
  voltage = sensorValue * (5.0 / 1023.0);  // Convert to voltage (assuming 5V ADC)

  // Print the voltage to the Serial Monitor
  Serial.print("Solar Panel Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000);  // Wait for 1 second before the next reading
}

Note: Use a voltage divider circuit if the solar panel's output voltage exceeds 5V to protect the Arduino's analog input pin.

1. Low Power Output:

   • Cause: Insufficient sunlight or shading.
   • Solution: Ensure the panel is in direct sunlight and free from obstructions.

2. No Output Voltage:

   • Cause: Loose or incorrect wiring.
   • Solution: Check all connections and ensure proper polarity.

3. Overheating:

   • Cause: Poor ventilation or high ambient temperature.
   • Solution: Install the panel in a well-ventilated area and avoid placing it on heat-absorbing surfaces.

4. Battery Not Charging:

   • Cause: Faulty charge controller or incorrect connections.
   • Solution: Verify the charge controller's functionality and check the wiring.

• Q: Can I connect a solar panel directly to a battery?
  A: It is not recommended. Use a charge controller to prevent overcharging or damaging the battery.

• Q: How do I calculate the number of panels needed for my system?
  A: Determine your daily energy consumption (in watt-hours) and divide it by the panel's daily energy output (considering sunlight hours and efficiency).

• Q: Can solar panels work on cloudy days?
  A: Yes, but the output will be significantly reduced compared to sunny conditions.

• Q: How long do solar panels last?
  A: Most solar panels have a lifespan of 25-30 years with proper maintenance.
