How to Use 1 Channel Relay 5V: Examples, Pinouts, and Specs

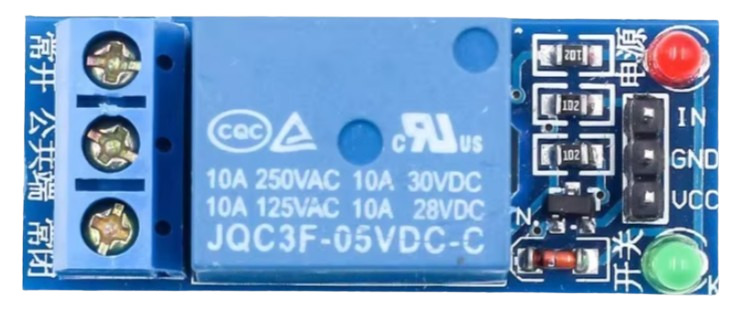

The 1 Channel Relay 5V is an electromechanical switch that allows a low voltage control signal (e.g., from a microcontroller) to control a higher voltage circuit. This module is widely used in automation, home appliances, and industrial control systems. It is ideal for switching devices such as lights, fans, motors, or other high-power loads while isolating the control circuit from the high-power circuit.

• Home automation systems (e.g., controlling lights or appliances)
• Industrial control systems
• Robotics and motor control
• IoT (Internet of Things) projects
• Safety systems requiring electrical isolation

• Operating Voltage: 5V DC
• Trigger Voltage: 3.3V to 5V (compatible with most microcontrollers)
• Relay Type: SPDT (Single Pole Double Throw)
• Maximum Load:
  • AC: 250V at 10A
  • DC: 30V at 10A
• Isolation: Optocoupler for electrical isolation
• Indicator: LED to show relay status
• Dimensions: ~50mm x 26mm x 18mm

1. Power the Relay Module: Connect the VCC pin to a 5V power supply and the GND pin to ground.
2. Connect the Control Signal: Connect the IN pin to a digital output pin of your microcontroller (e.g., Arduino).
3. Connect the Load:
   • For a device that should be OFF by default, connect it between the COM and NO terminals.
   • For a device that should be ON by default, connect it between the COM and NC terminals.
4. Control the Relay:
   • Send a HIGH signal (e.g., 5V) to the IN pin to activate the relay and switch the load.
   • Send a LOW signal (e.g., 0V) to deactivate the relay and return it to its default state.

• Electrical Isolation: The relay module uses an optocoupler to isolate the control circuit from the high-power circuit. This ensures safety and prevents damage to the microcontroller.
• Power Supply: Ensure the relay module is powered with a stable 5V DC supply.
• Load Ratings: Do not exceed the maximum load ratings (250V AC at 10A or 30V DC at 10A) to avoid damage or hazards.
• Flyback Diode: If controlling an inductive load (e.g., a motor), use a flyback diode across the load to suppress voltage spikes.

Below is an example of how to control the relay module using an Arduino UNO:

// Define the pin connected to the relay module
const int relayPin = 7;

void setup() {
  // Set the relay pin as an output
  pinMode(relayPin, OUTPUT);

  // Ensure the relay is OFF at startup
  digitalWrite(relayPin, LOW);
}

void loop() {
  // Turn the relay ON (activates the connected load)
  digitalWrite(relayPin, HIGH);
  delay(5000); // Keep the relay ON for 5 seconds

  // Turn the relay OFF (deactivates the connected load)
  digitalWrite(relayPin, LOW);
  delay(5000); // Keep the relay OFF for 5 seconds
}

• Replace relayPin with the actual pin number connected to the IN pin of the relay module.
• Ensure the Arduino is powered properly and shares a common ground with the relay module.

1. Relay Not Activating:

   • Cause: Insufficient voltage or current to the relay module.
   • Solution: Ensure the VCC pin is connected to a stable 5V power supply and the IN pin receives a proper HIGH signal.

2. Load Not Switching:

   • Cause: Incorrect wiring of the load circuit.
   • Solution: Verify the connections between the COM, NO, and NC terminals. Ensure the load is within the relay's rated capacity.

3. Microcontroller Resetting When Relay Activates:

   • Cause: Voltage spikes or insufficient power supply.
   • Solution: Use a separate power supply for the relay module or add a capacitor to stabilize the power supply.

4. LED Indicator Not Lighting Up:

   • Cause: Faulty relay module or incorrect wiring.
   • Solution: Check the wiring and ensure the module is receiving power. Replace the module if necessary.

Q1: Can I use the relay module with a 3.3V microcontroller?
A1: Yes, the relay module can be triggered with a 3.3V control signal, but ensure the VCC pin is still powered with 5V.

Q2: Is the relay module safe for high-power loads?
A2: Yes, as long as the load does not exceed the rated capacity (250V AC at 10A or 30V DC at 10A). Always follow safety precautions when working with high voltages.

Q3: Can I control multiple relays with one microcontroller?
A3: Yes, you can control multiple relay modules by connecting each IN pin to a separate digital output pin on the microcontroller.

Q4: Why is the relay clicking but not switching the load?
A4: This could be due to incorrect wiring on the load side. Double-check the connections to the COM, NO, and NC terminals.

By following this documentation, you can effectively use the 1 Channel Relay 5V module in your projects for safe and reliable control of high-power devices.
