How to Use MQ-5: Examples, Pinouts, and Specs

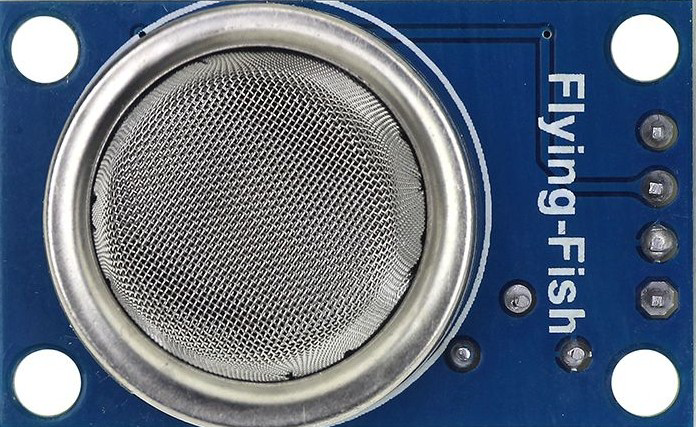

The MQ-5 gas sensor, manufactured by Flying Fish (Part ID: MQ-5), is a versatile and reliable component designed to detect the presence of various gases, including natural gas, LPG (liquefied petroleum gas), methane, and hydrogen. It operates on the principle of resistive change in the presence of gas, providing an analog output proportional to the gas concentration. This sensor is widely used in gas leak detection systems, industrial safety applications, and home automation projects.

• Gas leak detection in homes and industries
• Safety monitoring in kitchens and gas storage facilities
• Air quality monitoring systems
• IoT-based environmental sensing projects
• Integration with microcontrollers like Arduino for real-time gas monitoring

The MQ-5 sensor is designed for ease of use and integration into various systems. Below are its key technical details:

The MQ-5 sensor module typically comes with a 4-pin interface. Below is the pinout description:

The MQ-5 sensor is straightforward to use and can be integrated into a variety of circuits. Below are the steps and best practices for using the sensor effectively:

1. Power Supply: Connect the VCC pin to a 5V DC power source and the GND pin to ground.
2. Analog Output: Connect the AOUT pin to an analog input pin of a microcontroller (e.g., Arduino) to read the gas concentration as a voltage.
3. Digital Output: Optionally, connect the DOUT pin to a digital input pin of a microcontroller. The digital output is triggered when the gas concentration exceeds a preset threshold, which can be adjusted using the onboard potentiometer.

• Preheating: Allow the sensor to preheat for at least 24 hours before taking accurate readings. This ensures the internal heater stabilizes.
• Calibration: For precise measurements, calibrate the sensor in a known gas concentration environment.
• Ventilation: Ensure proper ventilation around the sensor to avoid saturation and ensure accurate readings.
• Avoid Contaminants: Keep the sensor away from water, oil, and corrosive gases, as these can damage the sensing element.

Below is an example of how to use the MQ-5 sensor with an Arduino UNO to read analog values:

// MQ-5 Gas Sensor Example Code for Arduino UNO
// This code reads the analog output of the MQ-5 sensor and prints the value
// to the Serial Monitor. Ensure the sensor is connected to the correct pins.

const int analogPin = A0; // Connect AOUT pin of MQ-5 to A0 on Arduino

void setup() {
  Serial.begin(9600); // Initialize serial communication at 9600 baud
  Serial.println("MQ-5 Gas Sensor Test");
}

void loop() {
  int sensorValue = analogRead(analogPin); // Read analog value from MQ-5
  float voltage = sensorValue * (5.0 / 1023.0); // Convert to voltage (0-5V)

  // Print the raw sensor value and voltage to the Serial Monitor
  Serial.print("Sensor Value: ");
  Serial.print(sensorValue);
  Serial.print(" | Voltage: ");
  Serial.print(voltage);
  Serial.println(" V");

  delay(1000); // Wait for 1 second before the next reading
}

• The analog value (sensorValue) ranges from 0 to 1023, corresponding to 0-5V.
• The voltage output can be used to estimate gas concentration based on the sensor's datasheet.

1. No Output Signal:

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check the connections and ensure a stable 5V power source.

2. Inconsistent Readings:

   • Cause: Insufficient preheating time or environmental interference.
   • Solution: Allow the sensor to preheat for at least 24 hours and ensure proper ventilation.

3. Digital Output Not Triggering:

   • Cause: Threshold not set correctly.
   • Solution: Adjust the potentiometer on the module to set the desired threshold.

4. Sensor Damage:

   • Cause: Exposure to water, oil, or corrosive gases.
   • Solution: Replace the sensor and ensure it is used in a clean, dry environment.

Q1: Can the MQ-5 detect gases other than LPG and methane?
Yes, the MQ-5 can also detect hydrogen and other combustible gases, but its sensitivity is optimized for LPG, methane, and natural gas.

Q2: How do I calibrate the MQ-5 sensor?
To calibrate, expose the sensor to a known concentration of gas and adjust the load resistance (RL) or use software calibration to map the analog output to the gas concentration.

Q3: Can I use the MQ-5 with a 3.3V microcontroller?
The MQ-5 requires a 5V power supply for the heater. However, you can use a voltage divider or level shifter to interface the analog output with a 3.3V microcontroller.

Q4: How long does the MQ-5 sensor last?
The sensor typically lasts for several years under normal operating conditions. However, its sensitivity may degrade over time, especially in harsh environments.

By following this documentation, users can effectively integrate the MQ-5 gas sensor into their projects for reliable gas detection and monitoring.
