Introduction

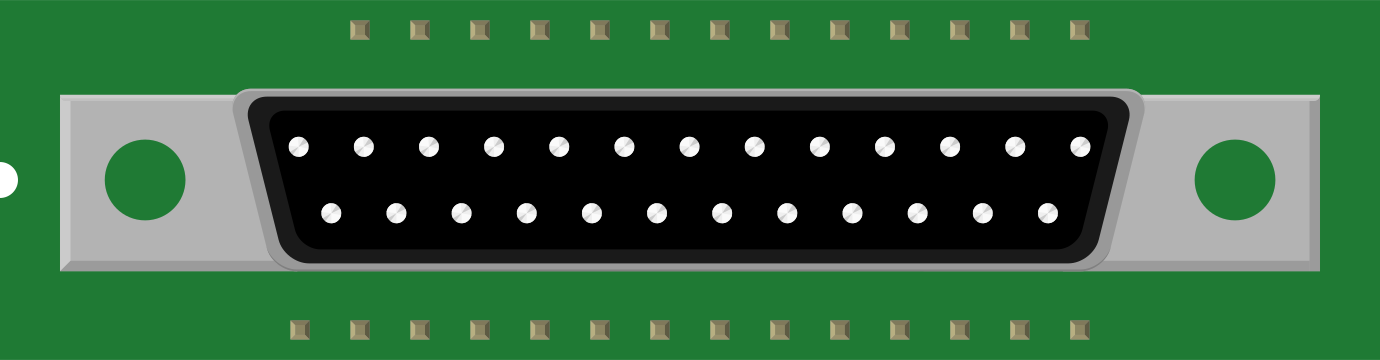

The DB25 is a 25-pin D-subminiature connector widely used for parallel and serial communication. It is part of the D-sub connector family, characterized by its D-shaped metal shield that provides mechanical support and electromagnetic interference (EMI) protection. The DB25 connector was historically popular in computer systems for connecting peripherals such as printers, modems, and other devices.
