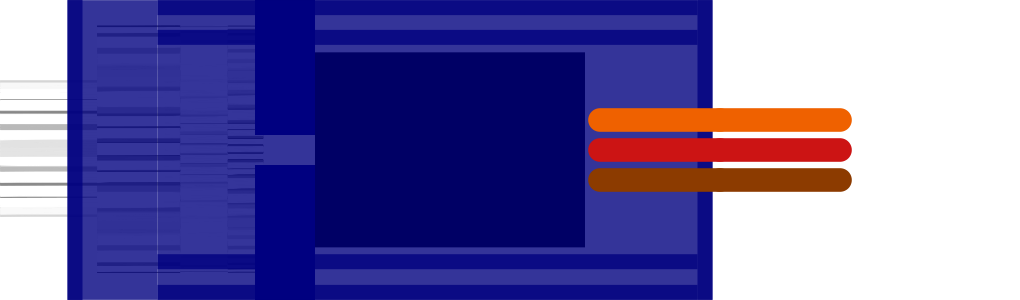

How to Use Dagu RS001B 9g Servo (End View): Examples, Pinouts, and Specs

The Dagu RS001B 9g Servo is a compact and lightweight servo motor designed for applications requiring precise control of angular position. Its small size and low weight make it ideal for robotics, RC vehicles, and other hobby projects. This servo is particularly popular among makers and hobbyists due to its affordability and ease of use with microcontrollers like the Arduino UNO.

• Robotics (e.g., robotic arms, grippers)
• RC vehicles (e.g., cars, planes, boats)
• Automated mechanisms (e.g., door openers, pan-tilt camera mounts)
• Educational and DIY electronics projects

Below are the key technical details of the Dagu RS001B 9g Servo:

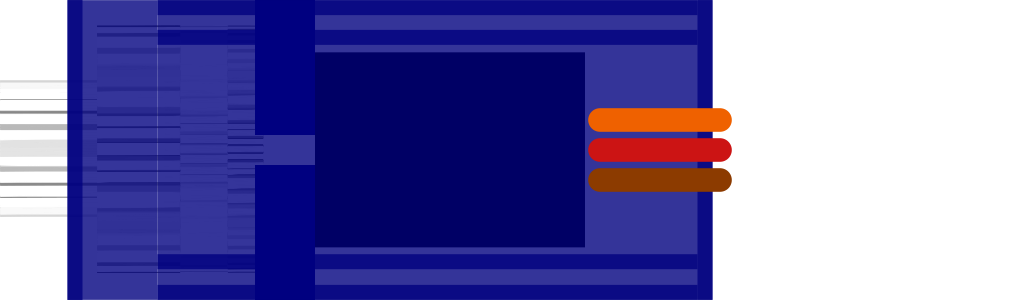

The Dagu RS001B 9g Servo has a 3-pin connector with the following pinout:

1. Power Supply: Connect the red wire to a 5V power source (e.g., Arduino 5V pin or an external power supply). Ensure the power source can supply sufficient current (at least 500mA per servo).
2. Ground Connection: Connect the brown wire to the ground (GND) of your circuit.
3. Signal Input: Connect the orange wire to a PWM-capable pin on your microcontroller (e.g., pin 9 on an Arduino UNO).
4. PWM Signal: Use a PWM signal to control the servo's position. A pulse width of 500µs corresponds to 0°, 1500µs corresponds to 90°, and 2500µs corresponds to 180°.

• Avoid Overloading: Do not exceed the torque rating of the servo to prevent damage.
• External Power Supply: For multiple servos, use an external power supply to avoid overloading the microcontroller's voltage regulator.
• PWM Frequency: Ensure the PWM signal frequency is approximately 50Hz (20ms period).
• Calibration: Test the servo's range of motion to ensure it does not exceed its physical limits.

Below is an example of how to control the Dagu RS001B 9g Servo using an Arduino UNO:

#include <Servo.h> // Include the Servo library

Servo myServo; // Create a Servo object to control the servo

void setup() {
  myServo.attach(9); // Attach the servo to pin 9 on the Arduino
}

void loop() {
  myServo.write(0); // Move the servo to 0 degrees
  delay(1000); // Wait for 1 second

  myServo.write(90); // Move the servo to 90 degrees
  delay(1000); // Wait for 1 second

  myServo.write(180); // Move the servo to 180 degrees
  delay(1000); // Wait for 1 second
}

• Replace 9 in myServo.attach(9) with the PWM-capable pin you are using.
• Adjust the delay values as needed for your application.

1. Servo Not Moving:

   • Cause: Incorrect wiring or insufficient power supply.
   • Solution: Double-check the connections and ensure the power supply provides at least 500mA.

2. Servo Jittering:

   • Cause: Electrical noise or unstable power supply.
   • Solution: Use a capacitor (e.g., 100µF) across the power and ground lines to stabilize the voltage.

3. Limited Range of Motion:

   • Cause: PWM signal out of range or physical obstruction.
   • Solution: Verify the PWM pulse width is within the 500µs to 2500µs range and check for obstructions.

4. Overheating:

   • Cause: Prolonged stalling or excessive load.
   • Solution: Reduce the load on the servo and avoid stalling conditions.

• Q: Can I power the servo directly from the Arduino UNO?
  A: Yes, but only for a single servo. For multiple servos, use an external power supply to avoid overloading the Arduino.

• Q: What is the maximum rotation angle of the servo?
  A: The servo can rotate up to 180°.

• Q: Can I use this servo with a Raspberry Pi?
  A: Yes, but you will need a PWM driver or library to generate the correct PWM signal.

• Q: How do I know if the servo is receiving a signal?
  A: The servo will make a slight buzzing sound when powered and receiving a PWM signal.

By following this documentation, you can effectively integrate the Dagu RS001B 9g Servo into your projects and troubleshoot common issues.
