How to Use Module GSM SIM800L: Examples, Pinouts, and Specs

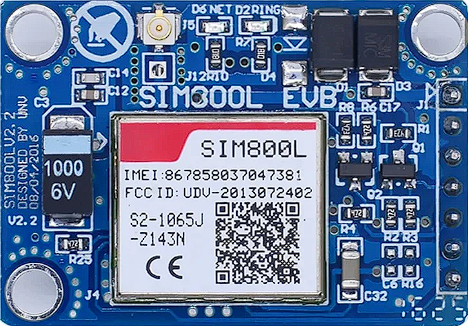

The GSM SIM800L is a compact GSM/GPRS module designed for wireless communication over cellular networks. It supports quad-band GSM frequencies (850/900/1800/1900 MHz) and provides functionalities such as sending and receiving SMS, making voice calls, and connecting to the internet via GPRS. Its small size and low power consumption make it an ideal choice for IoT applications, remote monitoring systems, and embedded projects requiring cellular connectivity.

• Internet of Things (IoT) devices
• Remote monitoring and control systems
• SMS-based alert systems
• GPS tracking devices (when paired with a GPS module)
• Home automation and security systems
• Voice communication in embedded systems

The SIM800L module is packed with features that make it versatile and easy to integrate into various projects. Below are its key technical specifications:

The SIM800L module typically has 12 pins. Below is the pinout and description:

1. Power Supply: The SIM800L requires a stable power supply of 3.7V to 4.2V. A LiPo battery or a DC-DC buck converter is recommended. Ensure the power source can handle peak currents of up to 2A.
2. Antenna: Connect an external antenna to the ANT pin for proper GSM signal reception.
3. Microcontroller Interface: Use the RXD and TXD pins to communicate with a microcontroller via UART. Ensure the logic levels are compatible (use a level shifter if necessary for 5V systems).
4. SIM Card: Insert a micro SIM card into the SIM card slot. Ensure the card is activated and has sufficient balance for SMS, calls, or data usage.
5. Reset: Connect the RST pin to the microcontroller or a push button for manual reset functionality.

• Voltage Regulation: Avoid powering the module directly from a 5V source. Use a voltage regulator or a dedicated power supply.
• Decoupling Capacitors: Place capacitors (e.g., 100µF and 10µF) near the VCC and GND pins to stabilize the power supply.
• Antenna Placement: Position the antenna away from other components to minimize interference.
• UART Communication: Configure the UART baud rate to 9600 bps (default) or adjust as needed using AT commands.
• Sleep Mode: Use the DTR pin to enable sleep mode for power-saving applications.

Below is an example of how to send an SMS using the SIM800L module with an Arduino UNO:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial sim800l(10, 11); // RX = 10, TX = 11

void setup() {
  // Initialize serial communication
  Serial.begin(9600); // For debugging
  sim800l.begin(9600); // For SIM800L communication

  // Wait for the module to initialize
  delay(1000);
  Serial.println("Initializing SIM800L...");

  // Send AT command to check communication
  sim800l.println("AT");
  delay(1000);
  if (sim800l.available()) {
    Serial.println("SIM800L is ready!");
  } else {
    Serial.println("No response from SIM800L.");
  }

  // Send SMS
  sendSMS("+1234567890", "Hello from SIM800L!");
}

void loop() {
  // Nothing to do here
}

void sendSMS(String phoneNumber, String message) {
  sim800l.println("AT+CMGF=1"); // Set SMS mode to text
  delay(1000);

  sim800l.print("AT+CMGS=\"");
  sim800l.print(phoneNumber); // Set recipient phone number
  sim800l.println("\"");
  delay(1000);

  sim800l.print(message); // Write the SMS content
  delay(1000);

  sim800l.write(26); // Send Ctrl+Z to send the SMS
  delay(5000);

  Serial.println("SMS sent!");
}

1. Module Not Responding to AT Commands

   • Ensure the power supply is stable and capable of providing sufficient current (up to 2A).
   • Check the connections for RXD and TXD pins. Ensure they are correctly connected to the microcontroller's TX and RX pins, respectively.
   • Verify the baud rate (default is 9600 bps).

2. No GSM Signal

   • Ensure the antenna is properly connected and positioned in an open area with good signal strength.
   • Check the SIM card for activation and sufficient balance.
   • Use the AT+CSQ command to check signal quality (values above 10 are acceptable).

3. Module Keeps Restarting

   • This is often caused by an insufficient power supply. Use a power source capable of handling peak currents of 2A.
   • Add decoupling capacitors near the VCC and GND pins.

4. SMS Not Sending

   • Ensure the SIM card is inserted correctly and supports SMS services.
   • Verify the phone number format (e.g., include the country code).
   • Check the AT+CMGF=1 command to ensure the module is in text mode.

• Q: Can the SIM800L work with a 5V microcontroller?

  • A: Yes, but you must use a level shifter to convert the 5V logic levels to 3.3V for the SIM800L.

• Q: How do I check the module's firmware version?

  • A: Use the AT+GMR command to retrieve the firmware version.

• Q: Can the SIM800L connect to the internet?

  • A: Yes, the module supports GPRS for internet connectivity. Use AT commands like AT+SAPBR and AT+HTTP for HTTP requests.

• Q: What is the maximum SMS length supported?

  • A: The SIM800L supports SMS messages up to 160 characters in text mode.

By following this documentation, you can effectively integrate the SIM800L module into your projects and troubleshoot common issues.
