How to Use street light dc 12 v: Examples, Pinouts, and Specs

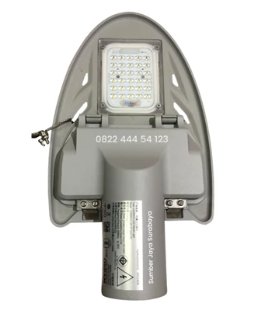

The Street Light DC 12V (Manufacturer: Lamp, Part ID: DC 12) is a high-efficiency outdoor lighting solution designed to operate on a 12V DC power supply. It is commonly used for street lighting, pathways, parking lots, and other outdoor areas requiring reliable and energy-efficient illumination. This component is ideal for solar-powered systems and low-voltage lighting setups, offering durability and consistent performance in various environmental conditions.

• Street and pathway lighting
• Solar-powered lighting systems
• Outdoor parking lot illumination
• Garden and landscape lighting
• Emergency lighting systems

Below are the key technical details for the Street Light DC 12V:

The Street Light DC 12V typically has a simple two-wire connection for power input:

1. Power Supply: Ensure you have a stable 12V DC power source capable of supplying at least 15W of power. This can be a DC adapter, a battery, or a solar power system.
2. Wiring:
   • Connect the red wire of the street light to the positive terminal of the 12V DC power supply.
   • Connect the black wire to the ground (GND) terminal of the power supply.
3. Mounting: Secure the street light to a pole or wall using the provided mounting brackets. Ensure the light is angled appropriately for optimal illumination.
4. Testing: Once connected, turn on the power supply to verify the light operates correctly.

• Voltage Compatibility: Do not exceed the 12V DC input voltage, as this may damage the light.
• Heat Dissipation: Ensure proper ventilation around the light to prevent overheating.
• Waterproofing: The IP65 rating ensures protection against water jets and dust, but avoid submerging the light in water.
• Polarity: Double-check the polarity of the connections to avoid damage to the light.
• Maintenance: Periodically clean the light's surface to maintain optimal brightness and check for any loose connections.

The Street Light DC 12V can be controlled using an Arduino UNO and a relay module. Below is an example circuit and code to turn the light on and off using a digital pin.

1. Connect the red wire of the street light to the NO (Normally Open) terminal of the relay module.
2. Connect the black wire of the street light to the GND terminal of the power supply.
3. Connect the COM (Common) terminal of the relay module to the positive terminal of the 12V DC power supply.
4. Connect the relay module's control pin to Pin 7 of the Arduino UNO.

// Street Light DC 12V Control with Arduino UNO
// This code turns the street light on for 5 seconds, then off for 5 seconds.

const int relayPin = 7; // Relay module connected to digital pin 7

void setup() {
  pinMode(relayPin, OUTPUT); // Set relay pin as output
  digitalWrite(relayPin, LOW); // Ensure relay is off at startup
}

void loop() {
  digitalWrite(relayPin, HIGH); // Turn on the street light
  delay(5000); // Keep the light on for 5 seconds
  digitalWrite(relayPin, LOW); // Turn off the street light
  delay(5000); // Keep the light off for 5 seconds
}

1. The light does not turn on:

   • Verify the power supply is providing 12V DC and sufficient current.
   • Check the wiring for loose or incorrect connections.
   • Ensure the polarity is correct (red wire to positive, black wire to ground).

2. The light flickers:

   • Check for a stable power supply. Flickering may occur if the voltage is unstable.
   • Inspect the connections for any loose wires or corrosion.

3. The light overheats:

   • Ensure the light is installed in a well-ventilated area.
   • Avoid operating the light in temperatures exceeding 50°C.

4. The light is dim:

   • Clean the light's surface to remove dirt or debris.
   • Verify the power supply is delivering the required voltage and current.

Q: Can this light be used with a solar power system?
A: Yes, the Street Light DC 12V is ideal for solar-powered systems. Ensure the solar panel and battery can provide a stable 12V DC output.

Q: Is the light dimmable?
A: No, this model is not designed for dimming. It operates at a fixed brightness.

Q: Can I use this light indoors?
A: While it is designed for outdoor use, it can be used indoors if a 12V DC power supply is available.

Q: What is the warranty period?
A: Warranty details depend on the manufacturer or distributor. Please refer to the purchase documentation for specific terms.
