How to Use esp 32: Examples, Pinouts, and Specs

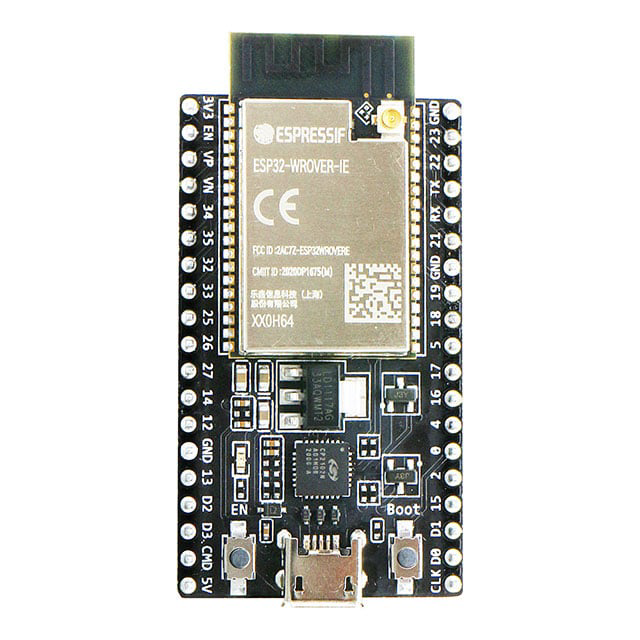

Image of esp 32
Cirkit Designer LogoDesign with esp 32 in Cirkit Designer

Introduction

The ESP32, manufactured by Espressif Systems (Part ID: ESP32), is a low-cost, low-power system on a chip (SoC) designed for a wide range of applications. It features integrated Wi-Fi and dual-mode Bluetooth capabilities, making it an ideal choice for Internet of Things (IoT) devices, smart home systems, wearable electronics, and embedded systems. Its versatility, robust performance, and extensive community support have made it a popular choice among hobbyists and professionals alike.

Explore Projects Built with esp 32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based RF Communication System with 433 MHz Modules
Image of 433 mhz: A project utilizing esp 32 in a practical application
This circuit comprises an ESP32 microcontroller connected to a 433 MHz RF transmitter and receiver pair. The ESP32 is programmed to receive and decode RF signals through the receiver module, as well as send RF signals via the transmitter module. Additionally, the ESP32 can communicate with a Bluetooth device to exchange commands and data, and it uses an LED for status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and W5500 Ethernet Module Based Smart Energy Monitor
Image of ESP32 30Pin 8 Ch Micro and USBC: A project utilizing esp 32 in a practical application
This circuit features an ESP32 microcontroller interfaced with a W5500 Ethernet module for network connectivity and a ZMPT101B module for AC voltage sensing. Additionally, a DHT22 sensor is connected to the ESP32 for measuring temperature and humidity. The ESP32 manages data acquisition from the sensors and communication over Ethernet.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Environmental Monitoring System with Motion Detection
Image of pro: A project utilizing esp 32 in a practical application
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based Smart Ethernet Weather Station with DHT22 Sensor and Relay Control
Image of ESP32 Single and Double AC with Temp 30Pin Micro and USBC: A project utilizing esp 32 in a practical application
This circuit features an ESP32 microcontroller interfaced with a W5500 Ethernet module, a DHT22 temperature and humidity sensor, and a 2-channel relay module. The ESP32 is configured to communicate with the W5500 module via SPI for network connectivity, read sensor data from the DHT22, and control devices through the relay module. The purpose of this circuit is likely for environmental monitoring and control over a network.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with esp 32

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of 433 mhz: A project utilizing esp 32 in a practical application
ESP32-Based RF Communication System with 433 MHz Modules
This circuit comprises an ESP32 microcontroller connected to a 433 MHz RF transmitter and receiver pair. The ESP32 is programmed to receive and decode RF signals through the receiver module, as well as send RF signals via the transmitter module. Additionally, the ESP32 can communicate with a Bluetooth device to exchange commands and data, and it uses an LED for status indication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32 30Pin 8 Ch Micro and USBC: A project utilizing esp 32 in a practical application
ESP32 and W5500 Ethernet Module Based Smart Energy Monitor
This circuit features an ESP32 microcontroller interfaced with a W5500 Ethernet module for network connectivity and a ZMPT101B module for AC voltage sensing. Additionally, a DHT22 sensor is connected to the ESP32 for measuring temperature and humidity. The ESP32 manages data acquisition from the sensors and communication over Ethernet.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of pro: A project utilizing esp 32 in a practical application
ESP32-Based Environmental Monitoring System with Motion Detection
This circuit features an ESP32 microcontroller on a baseboard that interfaces with a PIR sensor for motion detection, a DHT22 sensor for measuring temperature and humidity, and a BH1750 sensor for detecting ambient light levels. The ESP32 is configured to communicate with the BH1750 using I2C protocol, with GPIO22 and GPIO21 serving as the SCL and SDA lines, respectively. Power is supplied to the sensors from the ESP32's voltage output pins, and sensor outputs are connected to designated GPIO pins for data acquisition.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ESP32 Single and Double AC with Temp 30Pin Micro and USBC: A project utilizing esp 32 in a practical application
ESP32-Based Smart Ethernet Weather Station with DHT22 Sensor and Relay Control
This circuit features an ESP32 microcontroller interfaced with a W5500 Ethernet module, a DHT22 temperature and humidity sensor, and a 2-channel relay module. The ESP32 is configured to communicate with the W5500 module via SPI for network connectivity, read sensor data from the DHT22, and control devices through the relay module. The purpose of this circuit is likely for environmental monitoring and control over a network.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • IoT devices and smart home automation
  • Wireless sensor networks
  • Wearable electronics
  • Industrial automation
  • Robotics and drones
  • Prototyping and educational projects

Technical Specifications

The ESP32 is a highly capable SoC with the following key technical specifications:

Parameter Value
Manufacturer Espressif Systems
Part ID ESP32
Processor Dual-core Xtensa® 32-bit LX6 microprocessor
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by module)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth 4.2 (Classic and BLE)
Operating Voltage 3.0V to 3.6V
GPIO Pins Up to 34 GPIOs (varies by module)
ADC Channels 18 (12-bit resolution)
DAC Channels 2 (8-bit resolution)
Communication Interfaces UART, SPI, I2C, I2S, CAN, PWM
Power Consumption Ultra-low power consumption with multiple power modes
Operating Temperature -40°C to +85°C

Pin Configuration and Descriptions

The ESP32 has a flexible pinout, but the exact configuration depends on the specific module. Below is a general description of the key pins:

Pin Name Type Description
GPIO Digital/Analog General-purpose input/output pins. Can be configured for various functions.
EN Input Chip enable pin. Pull high to enable the chip.
3V3 Power 3.3V power supply input.
GND Power Ground connection.
ADC Analog Input Analog-to-digital converter pins.
DAC Analog Output Digital-to-analog converter pins.
TX/RX UART Serial communication pins for UART (transmit/receive).
SPI Communication Serial Peripheral Interface pins (MOSI, MISO, SCK, CS).
I2C Communication Inter-Integrated Circuit pins (SDA, SCL).
PWM Output Pulse-width modulation pins for motor control, LED dimming, etc.

Usage Instructions

How to Use the ESP32 in a Circuit

  1. Powering the ESP32: Connect the 3.3V pin to a stable 3.3V power source and GND to ground. Avoid exceeding the voltage range to prevent damage.
  2. Programming the ESP32: Use a USB-to-serial adapter or a development board with a built-in USB interface. The ESP32 can be programmed using the Arduino IDE, Espressif's ESP-IDF, or other compatible tools.
  3. Connecting Peripherals: Use the GPIO pins to connect sensors, actuators, or other peripherals. Configure the pins in your code as needed.
  4. Wi-Fi and Bluetooth Setup: Use the built-in libraries to configure and connect to Wi-Fi networks or Bluetooth devices.

Important Considerations and Best Practices

  • Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels. Use level shifters if interfacing with 5V devices.
  • Power Supply: Use a stable power source capable of supplying sufficient current (at least 500 mA) to avoid instability.
  • Pin Multiplexing: Many pins have multiple functions. Check the datasheet or pinout diagram to avoid conflicts.
  • Antenna Placement: For optimal wireless performance, ensure the onboard antenna is not obstructed by metal or other materials.

Example Code for Arduino IDE

Below is an example of how to connect the ESP32 to a Wi-Fi network using the Arduino IDE:

#include <WiFi.h> // Include the Wi-Fi library for ESP32

const char* ssid = "Your_SSID";       // Replace with your Wi-Fi network name
const char* password = "Your_Password"; // Replace with your Wi-Fi password

void setup() {
  Serial.begin(115200); // Initialize serial communication at 115200 baud
  delay(1000);          // Wait for a moment to stabilize

  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password); // Start connecting to the Wi-Fi network

  while (WiFi.status() != WL_CONNECTED) {
    delay(500); // Wait for connection
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP()); // Print the assigned IP address
}

void loop() {
  // Add your main code here
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Connecting to Wi-Fi

    • Solution: Double-check the SSID and password. Ensure the Wi-Fi network is operational and within range.
    • Tip: Use WiFi.status() to debug connection issues.
  2. Power Instability

    • Solution: Use a stable power source capable of supplying at least 500 mA. Avoid using long or thin wires for power connections.
  3. GPIO Pin Conflicts

    • Solution: Verify the pin functions in the datasheet. Avoid using reserved pins (e.g., GPIO6-GPIO11 are typically used for flash memory).
  4. Code Upload Fails

    • Solution: Ensure the correct board and port are selected in the Arduino IDE. Press and hold the "BOOT" button on the ESP32 module during upload if necessary.

FAQs

  • Q: Can the ESP32 operate on 5V?

    • A: No, the ESP32 operates at 3.3V. Use a voltage regulator or level shifter for 5V systems.
  • Q: How do I reset the ESP32?

    • A: Press the "EN" (enable) button on the module to reset the chip.
  • Q: Can I use the ESP32 with batteries?

    • A: Yes, the ESP32 can be powered by batteries, but ensure the voltage is regulated to 3.3V.
  • Q: Is the ESP32 compatible with Arduino libraries?

    • A: Yes, many Arduino libraries are compatible with the ESP32, but some may require modifications.

This documentation provides a comprehensive overview of the ESP32, helping users get started with this versatile and powerful SoC.
