How to Use ESP32 CH340: Examples, Pinouts, and Specs

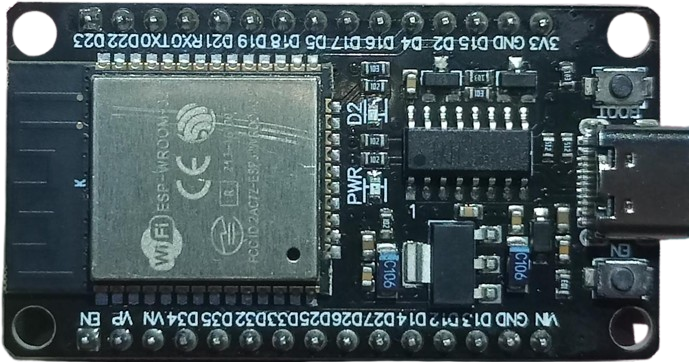

Image of ESP32 CH340
Cirkit Designer LogoDesign with ESP32 CH340 in Cirkit Designer

Introduction

The ESP32 CH340, manufactured by Espressif Systems, is a powerful microcontroller that integrates Wi-Fi and Bluetooth capabilities, making it ideal for Internet of Things (IoT) applications. It features the CH340 USB-to-serial converter, which simplifies programming and communication with computers. This component is widely used in smart home devices, wearable electronics, and industrial automation due to its versatility and robust wireless connectivity.

Explore Projects Built with ESP32 CH340

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based Environmental Monitoring System with Water Flow Sensing
Image of Water: A project utilizing ESP32 CH340 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based USB and Battery-Powered Circuit
Image of woot: A project utilizing ESP32 CH340 in a practical application
This circuit features an ESP32 microcontroller powered by a 3.3V regulator, which in turn is powered by a 18650 lithium-ion battery through a charger module. The charger module is designed to charge the battery via a USB connection and also provides power to the regulator. Ground connections are shared among the ESP32, regulator, charger, and USB interfaces, establishing a common reference point for all components.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 CH340 in a practical application
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32 Bluetooth-Controlled LED with Potentiometer and Pushbutton

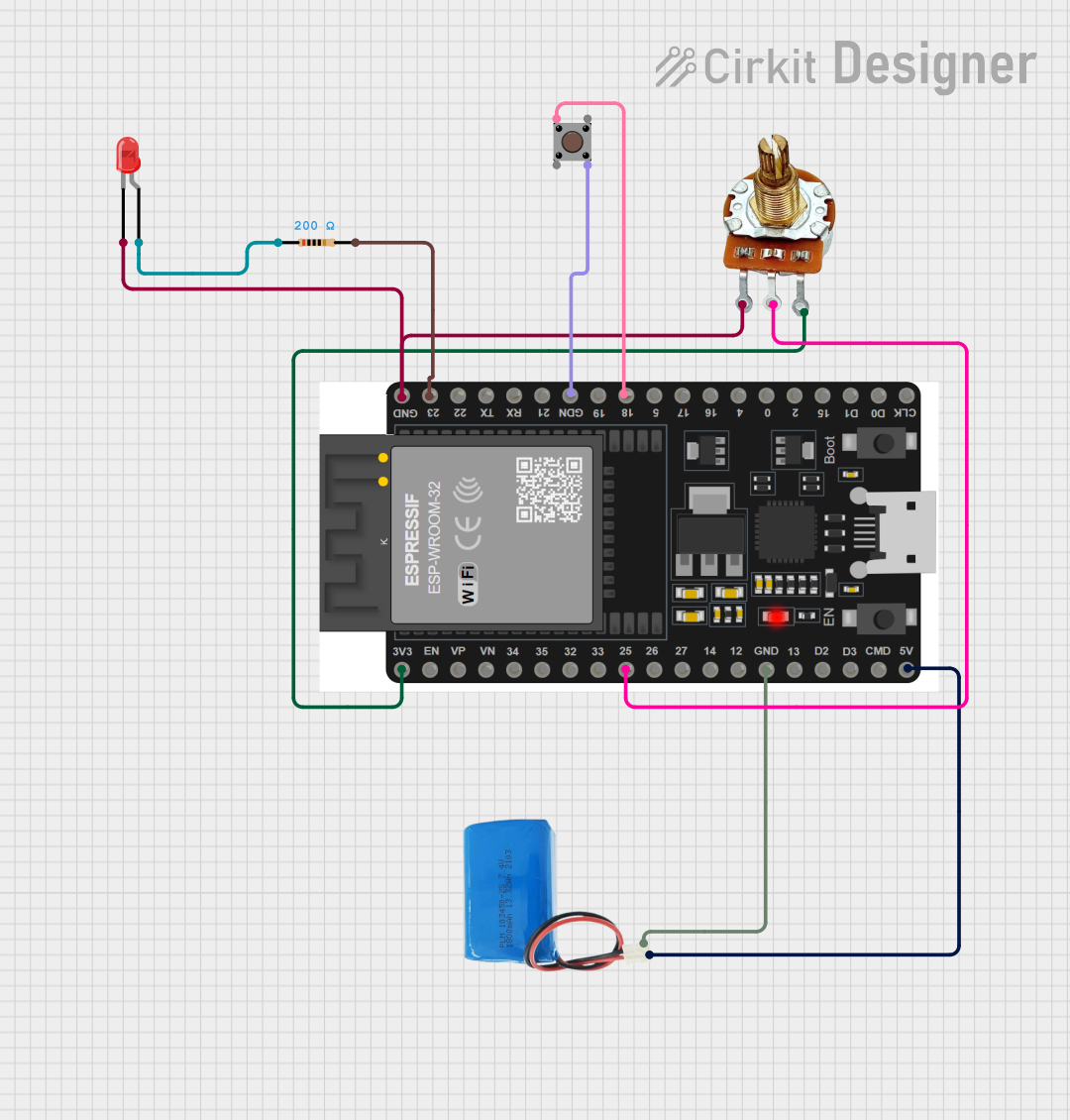

Image of bluetooth remote: A project utilizing ESP32 CH340 in a practical application
This circuit features an ESP32 microcontroller that controls an LED via Bluetooth commands from an Android phone. It includes a rotary potentiometer for analog input and a pushbutton for digital input, both interfaced with the ESP32. The circuit is powered by a 5V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with ESP32 CH340

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Water: A project utilizing ESP32 CH340 in a practical application
ESP32-Based Environmental Monitoring System with Water Flow Sensing
This circuit features an ESP32 Devkit V1 microcontroller connected to a DHT22 temperature and humidity sensor and a water flow sensor. The ESP32 reads environmental data from the DHT22 via a digital input pin (D33) and monitors water flow through the water flow sensor connected to another digital input pin (D23). The ESP32 is powered through its VIN pin, and both sensors are powered by the ESP32's 3V3 output, with common ground connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of woot: A project utilizing ESP32 CH340 in a practical application
ESP32-Based USB and Battery-Powered Circuit
This circuit features an ESP32 microcontroller powered by a 3.3V regulator, which in turn is powered by a 18650 lithium-ion battery through a charger module. The charger module is designed to charge the battery via a USB connection and also provides power to the regulator. Ground connections are shared among the ESP32, regulator, charger, and USB interfaces, establishing a common reference point for all components.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Toshiba AC ESP32 devkit v1: A project utilizing ESP32 CH340 in a practical application
ESP32 and Logic Level Converter-Based Wi-Fi Controlled Interface
This circuit features an ESP32 Devkit V1 microcontroller connected to a Bi-Directional Logic Level Converter, which facilitates voltage level shifting between the ESP32 and external components. The ESP32 is powered through its VIN pin via an alligator clip cable, and the logic level converter is connected to various pins on the ESP32 to manage different voltage levels for communication.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of bluetooth remote: A project utilizing ESP32 CH340 in a practical application
ESP32 Bluetooth-Controlled LED with Potentiometer and Pushbutton
This circuit features an ESP32 microcontroller that controls an LED via Bluetooth commands from an Android phone. It includes a rotary potentiometer for analog input and a pushbutton for digital input, both interfaced with the ESP32. The circuit is powered by a 5V battery.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • IoT devices and smart home systems
  • Wireless sensor networks
  • Wearable technology
  • Robotics and automation
  • Prototyping and development of connected devices

Technical Specifications

Key Technical Details

Parameter Value
Manufacturer Espressif Systems
Part ID ESP32 CH340
Microcontroller Core Dual-core Xtensa® 32-bit LX6
Clock Speed Up to 240 MHz
Flash Memory 4 MB (varies by model)
SRAM 520 KB
Wireless Connectivity Wi-Fi 802.11 b/g/n, Bluetooth v4.2 BR/EDR
USB-to-Serial Converter CH340
Operating Voltage 3.3V
Input Voltage (VIN) 5V (via USB)
GPIO Pins 34
ADC Channels 18 (12-bit resolution)
PWM Channels 16
Communication Interfaces UART, SPI, I2C, I2S, CAN, Ethernet
Power Consumption Ultra-low power modes available
Dimensions Varies by board (e.g., 25.4mm x 50.8mm)

Pin Configuration and Descriptions

The ESP32 CH340 typically comes in a development board format. Below is a general pinout description:

Pin Name Function Description
VIN Power Input Accepts 5V input from USB or external source.
3V3 Power Output Provides 3.3V output for external components.
GND Ground Common ground for the circuit.
GPIO0-39 General Purpose I/O Configurable as digital I/O, ADC, PWM, etc.
TXD0/RXD0 UART0 (Serial Communication) Default UART for programming and debugging.
EN Enable Resets the chip when pulled low.
BOOT Boot Mode Selection Used to enter bootloader mode for programming.
ADC1/ADC2 Analog-to-Digital Converter Pins 12-bit ADC channels for analog input.
SPI Pins SPI Communication Includes MOSI, MISO, SCK, and CS.
I2C Pins I2C Communication Includes SDA and SCL pins.

Note: Pin configurations may vary slightly depending on the specific ESP32 CH340 development board.

Usage Instructions

How to Use the ESP32 CH340 in a Circuit

  1. Powering the Board:

    • Connect the ESP32 CH340 to your computer via a USB cable. The CH340 USB-to-serial converter will handle communication and power the board.
    • Alternatively, supply 5V to the VIN pin or 3.3V to the 3V3 pin.
  2. Programming the ESP32:

    • Install the CH340 driver on your computer (if not already installed). Drivers are available for Windows, macOS, and Linux.
    • Use the Arduino IDE or Espressif's ESP-IDF to write and upload code. Select the appropriate board (e.g., "ESP32 Dev Module") in the IDE.
  3. Connecting Peripherals:

    • Use GPIO pins to connect sensors, actuators, or other peripherals. Configure the pins in your code as needed (e.g., input, output, ADC, etc.).
    • For I2C devices, connect them to the SDA and SCL pins. For SPI devices, use the MOSI, MISO, SCK, and CS pins.
  4. Wireless Communication:

    • Use the built-in Wi-Fi and Bluetooth modules to connect to networks or other devices. Libraries such as WiFi.h and BluetoothSerial.h can simplify this process.

Important Considerations and Best Practices

  • Voltage Levels: Ensure that all connected peripherals operate at 3.3V logic levels to avoid damaging the ESP32.
  • Boot Mode: To enter bootloader mode, hold the BOOT button while pressing the EN (reset) button.
  • Power Supply: Use a stable power source to avoid unexpected resets or malfunctions.
  • Heat Management: The ESP32 may heat up during operation. Ensure proper ventilation or use a heatsink if necessary.

Example Code for Arduino IDE

The following example demonstrates how to connect the ESP32 CH340 to a Wi-Fi network and blink an LED:

#include <WiFi.h> // Include the Wi-Fi library

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

const int ledPin = 2; // GPIO2 is typically connected to an onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
  Serial.begin(115200);    // Start serial communication
  delay(1000);

  // Connect to Wi-Fi
  Serial.println("Connecting to Wi-Fi...");
  WiFi.begin(ssid, password);

  while (WiFi.status() != WL_CONNECTED) {
    delay(500);
    Serial.print(".");
  }

  Serial.println("\nWi-Fi connected!");
  Serial.print("IP Address: ");
  Serial.println(WiFi.localIP());
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);                // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);                // Wait for 1 second
}

Note: Replace Your_SSID and Your_PASSWORD with your Wi-Fi network credentials.

Troubleshooting and FAQs

Common Issues and Solutions

  1. ESP32 Not Detected by Computer:

    • Ensure the CH340 driver is installed correctly.
    • Try a different USB cable or port.
  2. Upload Fails in Arduino IDE:

    • Check that the correct board and COM port are selected in the IDE.
    • Hold the BOOT button while uploading the code.
  3. Wi-Fi Connection Fails:

    • Verify the SSID and password in your code.
    • Ensure the Wi-Fi network is within range.
  4. Random Resets or Instability:

    • Use a stable power source with sufficient current (at least 500mA).
    • Check for loose connections or short circuits.

FAQs

  • Q: Can I use 5V peripherals with the ESP32?
    A: No, the ESP32 operates at 3.3V logic levels. Use a level shifter for 5V peripherals.

  • Q: How do I reset the ESP32?
    A: Press the EN (reset) button on the board.

  • Q: Can I use the ESP32 CH340 with other IDEs?
    A: Yes, you can use Espressif's ESP-IDF or other compatible IDEs like PlatformIO.

  • Q: What is the maximum Wi-Fi range?
    A: The range depends on environmental factors but is typically up to 100 meters in open space.

This documentation provides a comprehensive guide to using the ESP32 CH340. For further assistance, refer to Espressif's official resources or community forums.
