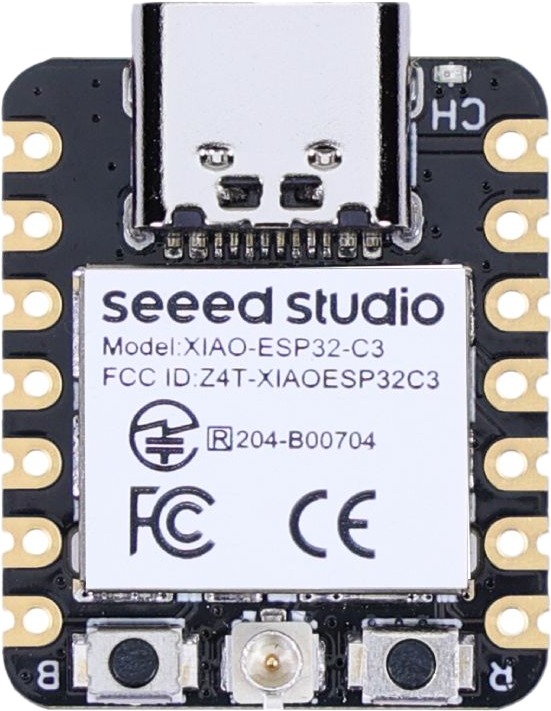

The XIAO ESP32C3 by Seeed Studio is a compact microcontroller board powered by the ESP32-C3 chip. It features built-in Wi-Fi and Bluetooth Low Energy (BLE) capabilities, making it an excellent choice for IoT applications, smart devices, and rapid prototyping. Its small form factor and low power consumption make it ideal for wearable devices, home automation, and other space-constrained projects.
Explore Projects Built with XIAO ESP32C3
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit connects a Xiao ESP32 C3 microcontroller to an Adafruit RFM9x LoRa Radio module. The ESP32 C3 provides power to the LoRa module and interfaces with it using SPI communication (SCK, MISO, MOSI, CS) and control lines (RST, DIO0). This setup is likely intended for wireless communication using LoRa technology, with the ESP32 handling data processing and network protocol tasks.
This circuit features a Xiao ESP32 C3 microcontroller connected to a DHT11 Humidity and Temperature Sensor. The ESP32 C3 provides power to the DHT11 sensor through its VUSB pin and receives data from the sensor's DATA pin via the ESP32's D2 pin. The circuit is designed to measure environmental temperature and humidity, with the microcontroller processing and potentially communicating the sensor data.
This circuit features an ESP32C3 Supermini microcontroller connected to a LORA_RA02 module and a DHT11 temperature and humidity sensor. The ESP32C3 handles communication with the LORA module via SPI (using GPIO05, GPIO06, GPIO10, and GPIO04 for MISO, MOSI, NSS, and SCK respectively) and GPIO01 and GPIO02 for additional control signals. The DHT11 sensor is interfaced through GPIO03 for data reading, and all components share a common power supply through the 3.3V and GND pins.
This circuit features an XIAO ESP32C3 microcontroller interfaced with multiple PNP transistors and resistors to control various outputs. The microcontroller's GPIO pins are connected to the bases of the transistors through resistors, allowing it to switch the transistors on and off, while capacitors are used for filtering and stabilization.
General-purpose I/O, SPI Master Out Slave In, Pulse Width Modulation
10
GPIO10, SPI MISO, PWM
General-purpose I/O, SPI Master In Slave Out, Pulse Width Modulation
Usage Instructions
How to Use the XIAO ESP32C3 in a Circuit
Powering the Board:
Use a USB-C cable to connect the XIAO ESP32C3 to your computer or a 5V power source.
The board operates at 3.3V internally, so ensure external components are compatible with this voltage.
Programming the Board:
Install the Arduino IDE and add the ESP32 board package via the Board Manager.
Select "Seeed XIAO ESP32C3" as the board type.
Connect the board via USB-C and upload your code.
Connecting Peripherals:
Use the GPIO pins for interfacing with sensors, actuators, or other devices.
Ensure proper pin mapping and voltage levels when connecting external components.
Example: Blinking an LED
The following example demonstrates how to blink an LED connected to GPIO2:
// Define the GPIO pin for the LED
#define LED_PIN 2
void setup() {
// Set the LED pin as an output
pinMode(LED_PIN, OUTPUT);
}
void loop() {
// Turn the LED on
digitalWrite(LED_PIN, HIGH);
delay(1000); // Wait for 1 second
// Turn the LED off
digitalWrite(LED_PIN, LOW);
delay(1000); // Wait for 1 second
}
Important Considerations
Voltage Levels: The GPIO pins operate at 3.3V. Avoid applying 5V directly to the pins to prevent damage.
Deep Sleep Mode: Use deep sleep mode for ultra-low power applications. Refer to the ESP32-C3 datasheet for sleep mode configurations.
Wi-Fi and Bluetooth: Ensure proper antenna placement and minimal interference for optimal wireless performance.
Troubleshooting and FAQs
Common Issues
The board is not detected by the computer:
Ensure the USB-C cable supports data transfer (not just charging).
Check if the correct drivers are installed for the ESP32-C3.
Code upload fails:
Verify that the correct board and port are selected in the Arduino IDE.
Press the reset button on the board before uploading the code.
Wi-Fi connection issues:
Ensure the correct SSID and password are used in your code.
Check for interference or weak signal strength.
FAQs
Q: Can I power the XIAO ESP32C3 with a battery?
A: Yes, you can power the board using a 3.7V LiPo battery connected to the 3.3V and GND pins. Ensure proper voltage regulation.
Q: Does the board support OTA (Over-the-Air) updates?
A: Yes, the ESP32-C3 chip supports OTA updates. You can implement this feature in your code.
Q: How do I reset the board?
A: Press the reset button located on the board to restart it.
Q: Can I use the XIAO ESP32C3 with MicroPython?
A: Yes, the board supports MicroPython. You can flash the MicroPython firmware and use it for development.
By following this documentation, you can effectively utilize the XIAO ESP32C3 for your IoT and prototyping projects.
