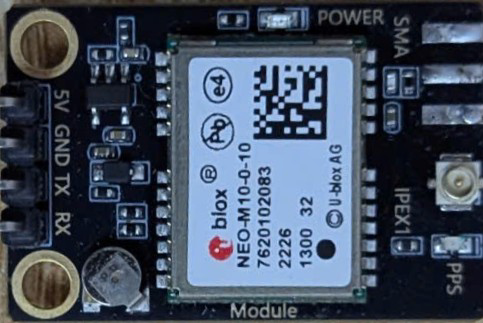

Image of GPS NEO 10M
Cirkit Designer LogoDesign with GPS NEO 10M in Cirkit Designer

Introduction

The GPS NEO 10M, manufactured by u-blox, is a high-performance GPS module designed to provide accurate positioning data. It features a built-in antenna, making it compact and easy to integrate into various projects. This module is widely used in applications such as navigation, vehicle tracking, drones, and IoT devices requiring precise location information.

The NEO 10M is known for its low power consumption, fast acquisition times, and reliable performance, even in challenging environments. Its compatibility with microcontrollers like Arduino makes it a popular choice for hobbyists and professionals alike.

Explore Projects Built with GPS NEO 10M

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
Image of Yoon: A project utilizing GPS NEO 10M in a practical application
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Based GPS Tracker with OLED Display and Firebase Integration
Image of ecs: A project utilizing GPS NEO 10M in a practical application
This circuit is a GPS tracking system that uses an ESP32 microcontroller to read location data from a NEO-6M GPS module and display information on a 0.96" OLED screen. The system is powered by a 2000mAh battery with a lithium-ion charger, and it uploads the GPS data to Firebase via WiFi. Additional components include an MPU6050 accelerometer/gyroscope for motion sensing and a buzzer for alerts.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano GPS Tracker with GSM and OLED Display
Image of Smart GPS Tracker: A project utilizing GPS NEO 10M in a practical application
This circuit is a GPS tracking system that uses an Arduino Nano to interface with a SIM800L GSM module, a GPS NEO 6M module, and a 1.3-inch OLED display. The Arduino collects GPS data, displays it on the OLED screen, and sends the coordinates via SMS using the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO GPS Tracker with OLED Display
Image of Speedometer using ardunio uno: A project utilizing GPS NEO 10M in a practical application
This circuit integrates an Arduino UNO with an OLED display and a GPS NEO 6M module. The Arduino UNO controls the OLED display via I2C communication and receives GPS data through serial communication, enabling the display of real-time location information.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with GPS NEO 10M

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Yoon: A project utilizing GPS NEO 10M in a practical application
ESP32-Based GPS Tracker with OLED Display and Telegram Integration
This circuit is a GPS-based tracking system that uses an ESP32 microcontroller to receive GPS data from a NEO 6M module and display the coordinates on a 1.3" OLED screen. It also features WiFi connectivity to send location updates to a remote server, potentially for applications such as asset tracking or navigation assistance.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of ecs: A project utilizing GPS NEO 10M in a practical application
ESP32-Based GPS Tracker with OLED Display and Firebase Integration
This circuit is a GPS tracking system that uses an ESP32 microcontroller to read location data from a NEO-6M GPS module and display information on a 0.96" OLED screen. The system is powered by a 2000mAh battery with a lithium-ion charger, and it uploads the GPS data to Firebase via WiFi. Additional components include an MPU6050 accelerometer/gyroscope for motion sensing and a buzzer for alerts.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart GPS Tracker: A project utilizing GPS NEO 10M in a practical application
Arduino Nano GPS Tracker with GSM and OLED Display
This circuit is a GPS tracking system that uses an Arduino Nano to interface with a SIM800L GSM module, a GPS NEO 6M module, and a 1.3-inch OLED display. The Arduino collects GPS data, displays it on the OLED screen, and sends the coordinates via SMS using the GSM module.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Speedometer using ardunio uno: A project utilizing GPS NEO 10M in a practical application
Arduino UNO GPS Tracker with OLED Display
This circuit integrates an Arduino UNO with an OLED display and a GPS NEO 6M module. The Arduino UNO controls the OLED display via I2C communication and receives GPS data through serial communication, enabling the display of real-time location information.
Cirkit Designer LogoOpen Project in Cirkit Designer

Technical Specifications

Below are the key technical details of the GPS NEO 10M module:

Parameter Specification
Manufacturer u-blox
Model NEO 10M
Supply Voltage 2.7V to 3.6V
Operating Current ~30 mA (typical)
Positioning Accuracy 2.5 meters CEP (Circular Error Probable)
Acquisition Time (Cold Start) < 27 seconds
Acquisition Time (Hot Start) < 1 second
Communication Interface UART (default baud rate: 9600 bps)
Protocol Support NMEA, UBX
Operating Temperature -40°C to +85°C
Dimensions 16 mm x 12.2 mm x 2.4 mm

Pin Configuration and Descriptions

The GPS NEO 10M module has the following pinout:

Pin Name Description
1 VCC Power supply input (2.7V to 3.6V)
2 GND Ground connection
3 TXD UART Transmit (data output from GPS module)
4 RXD UART Receive (data input to GPS module)
5 PPS Pulse Per Second output for precise timing
6 EN Enable pin (active high, used to enable the module)

Usage Instructions

How to Use the GPS NEO 10M in a Circuit

  1. Power Supply: Connect the VCC pin to a regulated 3.3V power source and the GND pin to ground.
  2. UART Communication: Connect the TXD pin of the GPS module to the RX pin of your microcontroller (e.g., Arduino), and the RXD pin of the GPS module to the TX pin of the microcontroller.
  3. Enable the Module: Ensure the EN pin is pulled high to activate the module.
  4. Antenna Placement: For optimal performance, ensure the built-in antenna has a clear view of the sky to receive satellite signals effectively.

Important Considerations and Best Practices

  • Power Supply: Use a stable and noise-free power source to avoid interference with GPS signals.
  • Antenna Orientation: Place the module in an open area, away from obstructions like buildings or metal objects.
  • UART Configuration: Ensure the microcontroller's UART settings match the GPS module's default baud rate (9600 bps).
  • Data Parsing: Use libraries or custom code to parse NMEA sentences for extracting useful data like latitude, longitude, and time.

Example Code for Arduino UNO

Below is an example of how to interface the GPS NEO 10M with an Arduino UNO to read and display GPS data:

#include <SoftwareSerial.h>

// Define RX and TX pins for SoftwareSerial
SoftwareSerial gpsSerial(4, 3); // RX = Pin 4, TX = Pin 3

void setup() {
  Serial.begin(9600); // Initialize Serial Monitor at 9600 bps
  gpsSerial.begin(9600); // Initialize GPS module at 9600 bps
  Serial.println("GPS NEO 10M Module Initialized");
}

void loop() {
  // Check if data is available from the GPS module
  while (gpsSerial.available()) {
    char gpsData = gpsSerial.read(); // Read one character at a time
    Serial.print(gpsData); // Print GPS data to Serial Monitor
  }
}

Note: The above code reads raw NMEA sentences from the GPS module. To extract specific data like latitude and longitude, use a GPS parsing library such as TinyGPS++.

Troubleshooting and FAQs

Common Issues and Solutions

  1. No GPS Data Received:

    • Ensure the module is powered correctly and the EN pin is high.
    • Verify the UART connections and baud rate settings.
    • Place the module in an open area with a clear view of the sky.
  2. Inaccurate Positioning:

    • Check for obstructions that may block satellite signals.
    • Allow the module sufficient time for a cold start (up to 27 seconds).
  3. Intermittent Signal Loss:

    • Ensure the power supply is stable and free from noise.
    • Avoid placing the module near high-frequency devices or metal surfaces.

FAQs

Q1: Can the GPS NEO 10M work indoors?
A1: The module may work indoors near windows, but performance is significantly reduced due to signal attenuation.

Q2: How many satellites does the module need for accurate positioning?
A2: The module requires signals from at least four satellites for a 3D fix (latitude, longitude, and altitude).

Q3: Can I change the default baud rate?
A3: Yes, the baud rate can be configured using u-blox's UBX protocol commands or configuration software.

Q4: Does the module support external antennas?
A4: No, the NEO 10M has a built-in antenna and does not support external antennas.

By following this documentation, users can effectively integrate and troubleshoot the GPS NEO 10M module in their projects.
