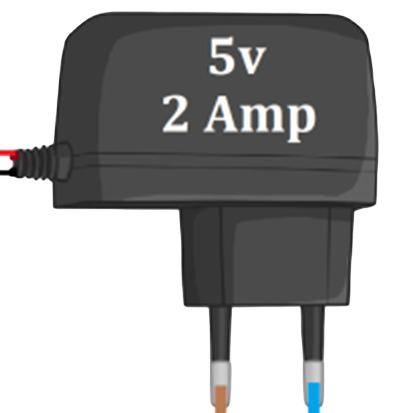

How to Use ADAPTO 5 VOLT: Examples, Pinouts, and Specs

The ADAPTO 5 VOLT is a compact and reliable power adapter designed to convert standard AC voltage (100-240V) into a stable 5V DC output. This component is widely used to power low-voltage electronic devices, such as microcontrollers, sensors, and small appliances. Its consistent 5V output ensures safe and efficient operation of sensitive electronics, making it an essential tool for hobbyists, engineers, and professionals alike.

• Powering microcontroller boards (e.g., Arduino, Raspberry Pi)
• Supplying power to USB-powered devices
• Charging small gadgets and IoT devices
• Providing a stable power source for sensors and modules in DIY projects

The following table outlines the key technical details of the ADAPTO 5 VOLT:

For models with a barrel jack connector, the pin configuration is as follows:

For USB Type-A models, the pin configuration is standard:

1. Verify Compatibility: Ensure the device you are powering operates at 5V DC and does not exceed the maximum current rating of 2A.
2. Connect the Output:
   • For barrel jack models, connect the center pin to the positive terminal of your circuit and the outer pin to the ground.
   • For USB models, plug the adapter into the device's USB power input.
3. Plug into AC Power: Connect the adapter to a standard AC outlet (100-240V).
4. Power On: Turn on the connected device and verify proper operation.

• Avoid Overloading: Do not connect devices that draw more than 2A, as this may damage the adapter or connected devices.
• Check Polarity: For barrel jack models, ensure correct polarity to prevent damage to your circuit.
• Ventilation: Use the adapter in a well-ventilated area to prevent overheating.
• Use with Arduino UNO: The ADAPTO 5 VOLT can be used to power an Arduino UNO via the barrel jack or USB port. Below is an example of powering an Arduino UNO and running a simple LED blink program.

// Example: Blink an LED using Arduino UNO powered by ADAPTO 5 VOLT

// Pin 13 is connected to the onboard LED
const int ledPin = 13;

void setup() {
  pinMode(ledPin, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

1. No Output Voltage:

   • Cause: The adapter may not be properly connected to the AC outlet.
   • Solution: Ensure the adapter is securely plugged into a working outlet.

2. Device Not Powering On:

   • Cause: The connected device may require more than 2A or may not operate at 5V.
   • Solution: Verify the device's voltage and current requirements.

3. Overheating:

   • Cause: The adapter may be overloaded or used in a poorly ventilated area.
   • Solution: Reduce the load or move the adapter to a cooler, well-ventilated location.

4. Intermittent Power:

   • Cause: Loose connections or damaged cables.
   • Solution: Check all connections and replace damaged cables if necessary.

Q: Can I use the ADAPTO 5 VOLT to charge my smartphone?
A: Yes, if your smartphone supports 5V charging and the adapter's connector is compatible.

Q: Is the adapter safe to use with sensitive electronics?
A: Yes, the ADAPTO 5 VOLT includes overcurrent, overvoltage, and short-circuit protection to ensure safe operation.

Q: Can I use this adapter outdoors?
A: The ADAPTO 5 VOLT is not weatherproof. Use it indoors or in a protected environment.

Q: What happens if I connect a device that requires more than 2A?
A: The adapter's overcurrent protection will activate, and it will stop supplying power to prevent damage.
