How to Use HW373 Boost Converter: Examples, Pinouts, and Specs

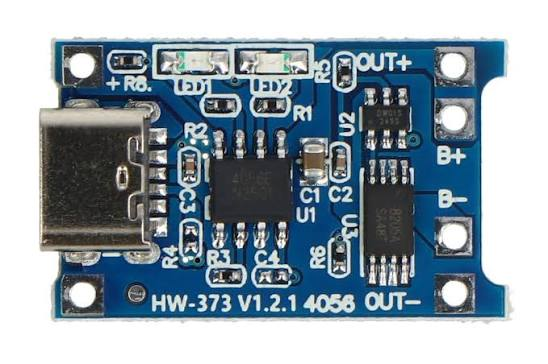

Image of HW373 Boost Converter
Cirkit Designer LogoDesign with HW373 Boost Converter in Cirkit Designer

Introduction

The HW373 Boost Converter is a DC-DC step-up voltage regulator designed to increase a lower input voltage to a higher output voltage. This compact and efficient module is widely used in battery-powered devices, portable electronics, and renewable energy systems where a higher voltage is required for optimal performance. Its small size and high efficiency make it an ideal choice for applications requiring reliable voltage boosting.

Explore Projects Built with HW373 Boost Converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered DC Motor Control with USB Charging and LED Indicator
Image of lumantas: A project utilizing HW373 Boost Converter in a practical application
This circuit is designed to charge a Li-ion battery and power a DC motor and a 12V LED. The TP4056 module manages the battery charging process, while the PowerBoost 1000 and MT3608 boost converters step up the voltage to drive the motor and LED, respectively. Two rocker switches control the power flow to the LED and the charging circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
ESP32-Powered Obstacle Avoidance Robot with IR and Ultrasonic Sensors
Image of projcememek: A project utilizing HW373 Boost Converter in a practical application
This circuit features a 18650 Li-Ion battery connected to a TP4056 charging module, which in turn is connected to an MT3608 boost converter to step up the voltage. The output of the MT3608 powers an ESP32 microcontroller, a TCRT 5000 IR sensor, an HC-SR04 ultrasonic sensor, and an MG996R servo motor. The ESP32 is configured to control the servo motor via GPIO 27 and to receive input signals from the IR sensor and ultrasonic sensor through GPIO 14 and GPIO 13, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Multi-Stage Voltage Regulation and Indicator LED Circuit
Image of Subramanyak_Power_Circuit: A project utilizing HW373 Boost Converter in a practical application
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Solar-Powered Battery Charging Circuit with LED Indicator
Image of hybrid torch: A project utilizing HW373 Boost Converter in a practical application
This circuit appears to be a solar-powered charging and power supply system with a battery backup. A TP4056 module is used for charging the 3.7V battery from the solar panel via a bridge rectifier, ensuring proper battery management. The system can power an LED and a motor, with a rocker switch to control the LED, and diodes are used to provide correct polarity and prevent backflow of current.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with HW373 Boost Converter

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of lumantas: A project utilizing HW373 Boost Converter in a practical application
Battery-Powered DC Motor Control with USB Charging and LED Indicator
This circuit is designed to charge a Li-ion battery and power a DC motor and a 12V LED. The TP4056 module manages the battery charging process, while the PowerBoost 1000 and MT3608 boost converters step up the voltage to drive the motor and LED, respectively. Two rocker switches control the power flow to the LED and the charging circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of projcememek: A project utilizing HW373 Boost Converter in a practical application
ESP32-Powered Obstacle Avoidance Robot with IR and Ultrasonic Sensors
This circuit features a 18650 Li-Ion battery connected to a TP4056 charging module, which in turn is connected to an MT3608 boost converter to step up the voltage. The output of the MT3608 powers an ESP32 microcontroller, a TCRT 5000 IR sensor, an HC-SR04 ultrasonic sensor, and an MG996R servo motor. The ESP32 is configured to control the servo motor via GPIO 27 and to receive input signals from the IR sensor and ultrasonic sensor through GPIO 14 and GPIO 13, respectively.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Subramanyak_Power_Circuit: A project utilizing HW373 Boost Converter in a practical application
Multi-Stage Voltage Regulation and Indicator LED Circuit
This circuit is designed for power management, featuring buck and boost converters for voltage adjustment, and linear regulators for stable voltage output. It includes LEDs for status indication, and terminal blocks for external connections.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of hybrid torch: A project utilizing HW373 Boost Converter in a practical application
Solar-Powered Battery Charging Circuit with LED Indicator
This circuit appears to be a solar-powered charging and power supply system with a battery backup. A TP4056 module is used for charging the 3.7V battery from the solar panel via a bridge rectifier, ensuring proper battery management. The system can power an LED and a motor, with a rocker switch to control the LED, and diodes are used to provide correct polarity and prevent backflow of current.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications

  • Powering microcontrollers and sensors from a single-cell battery
  • LED drivers for high-power LEDs
  • Portable power banks and USB chargers
  • Renewable energy systems (e.g., solar-powered devices)
  • Robotics and IoT devices

Technical Specifications

The HW373 Boost Converter is designed to deliver stable and efficient voltage conversion. Below are its key technical details:

Parameter Value
Input Voltage Range 2.5V to 6V
Output Voltage Range 3.3V to 12V (adjustable)
Maximum Output Current 1A (depending on input voltage)
Efficiency Up to 92%
Switching Frequency 1.2 MHz
Dimensions 22mm x 17mm x 4mm

Pin Configuration and Descriptions

The HW373 Boost Converter typically has the following pin layout:

Pin Name Description
VIN Input voltage pin. Connect to the positive terminal of the power source.
GND Ground pin. Connect to the negative terminal of the power source.
VOUT Output voltage pin. Provides the boosted voltage to the load.
EN (optional) Enable pin. Used to turn the module on/off. Pull high to enable, low to disable.

Usage Instructions

How to Use the HW373 Boost Converter in a Circuit

  1. Connect the Input Voltage:

    • Connect the VIN pin to the positive terminal of your power source (e.g., a battery).
    • Connect the GND pin to the negative terminal of your power source.
  2. Connect the Output Voltage:

    • Connect the VOUT pin to the positive terminal of your load (e.g., an LED or microcontroller).
    • Ensure the load's voltage and current requirements are within the module's output range.
  3. Adjust the Output Voltage (if applicable):

    • Use the onboard potentiometer to adjust the output voltage.
    • Turn the potentiometer clockwise to increase the voltage and counterclockwise to decrease it.
    • Use a multimeter to measure the output voltage while adjusting.
  4. Enable the Module (if EN pin is available):

    • If the module has an EN pin, pull it high (connect to VIN) to enable the converter.
    • Pull it low (connect to GND) to disable the converter.

Important Considerations and Best Practices

  • Input Voltage Range: Ensure the input voltage is within the specified range (2.5V to 6V). Exceeding this range may damage the module.
  • Output Voltage Adjustment: Always measure the output voltage with a multimeter before connecting your load to avoid overvoltage damage.
  • Heat Dissipation: For high current loads, ensure proper ventilation or heat sinking to prevent overheating.
  • Capacitor Selection: Use appropriate input and output capacitors to stabilize the voltage and reduce noise.
  • Load Requirements: Do not exceed the maximum output current (1A). Overloading may cause the module to shut down or fail.

Example: Using HW373 with Arduino UNO

The HW373 Boost Converter can be used to power an Arduino UNO from a 3.7V Li-ion battery. Below is an example setup:

  1. Connect the VIN pin of the HW373 to the positive terminal of the battery.
  2. Connect the GND pin of the HW373 to the negative terminal of the battery.
  3. Adjust the output voltage to 5V using the potentiometer.
  4. Connect the VOUT pin of the HW373 to the 5V pin of the Arduino UNO.
  5. Connect the GND pin of the HW373 to the GND pin of the Arduino UNO.

Here is a simple Arduino code to blink an LED, powered by the HW373:

// Simple LED Blink Example
// This code assumes the Arduino UNO is powered by the HW373 Boost Converter.

const int ledPin = 13; // Pin connected to the onboard LED

void setup() {
  pinMode(ledPin, OUTPUT); // Set the LED pin as an output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Input voltage is too low or not connected properly.
    • Solution: Verify the input voltage is within the 2.5V to 6V range and check all connections.
  2. Output Voltage is Unstable:

    • Cause: Insufficient input/output capacitors or high load current.
    • Solution: Add capacitors (e.g., 10µF or higher) to the input and output terminals.
  3. Module Overheats:

    • Cause: Excessive load current or poor ventilation.
    • Solution: Reduce the load current or improve heat dissipation with a heatsink.
  4. Cannot Adjust Output Voltage:

    • Cause: Faulty potentiometer or incorrect adjustment.
    • Solution: Check the potentiometer for damage and adjust slowly while monitoring with a multimeter.

FAQs

Q: Can the HW373 Boost Converter be used with a solar panel?
A: Yes, as long as the solar panel's output voltage is within the 2.5V to 6V range. Ensure the panel provides sufficient current for your load.

Q: What happens if the input voltage exceeds 6V?
A: Exceeding the input voltage range may damage the module. Always use a regulated power source within the specified range.

Q: Can I use the HW373 to power a Raspberry Pi?
A: The HW373 can power a Raspberry Pi if the output voltage is set to 5V and the current requirement (typically 2.5A for a Raspberry Pi 4) is met. However, the HW373's maximum output current is 1A, so it is not suitable for high-power Raspberry Pi models.

Q: Is the HW373 Boost Converter protected against short circuits?
A: Some versions of the HW373 may include basic protection features, but it is recommended to avoid short circuits to prevent damage.

By following this documentation, you can effectively integrate the HW373 Boost Converter into your projects for reliable and efficient voltage boosting.
