How to Use 10A 24VDC MCB 1 Phase: Examples, Pinouts, and Specs

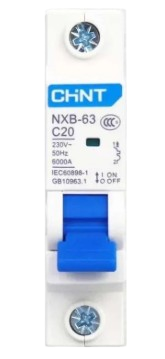

Design with 10A 24VDC MCB 1 Phase in Cirkit DesignerIntroduction
The 10A 24VDC Miniature Circuit Breaker (MCB) is a compact, reliable device designed to protect single-phase DC circuits from overcurrent conditions. It automatically disconnects the circuit when the current exceeds 10 amps, preventing damage to connected equipment and reducing the risk of fire or electrical hazards. This MCB is widely used in industrial control systems, renewable energy setups, and low-voltage DC applications.
Explore Projects Built with 10A 24VDC MCB 1 Phase
Industrial Power Distribution and Safety Control System
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Open Project in Cirkit DesignerPLC-Controlled Power Window System with Infrared Sensing and Relay Module
This circuit is designed to control a motorized window system using a PLC (Programmable Logic Controller) and an array of sensors and switches. It includes power supplies for 12V and 24V DC, an MCB (Miniature Circuit Breaker) for protection, and a relay module interfaced with an Arduino for additional control logic. The PLC manages inputs from pushbuttons, a 3-position switch, infrared proximity sensors, and an emergency stop, and it controls outputs such as the motor speed controller, lamps, and solenoid valves.
Open Project in Cirkit DesignerModular Power Distribution System with Multiple SMPS Units and 120V Outlet
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Open Project in Cirkit DesignerFlush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Open Project in Cirkit DesignerExplore Projects Built with 10A 24VDC MCB 1 Phase
Industrial Power Distribution and Safety Control System
This circuit is designed for power distribution and safety control in an industrial setting. It features a main isolator and circuit breaker for power management, multiple PSUs for 5V, 12V, and 24V outputs, and a safety relay system that interfaces with E-stop buttons and a start switch to control a main contactor, ensuring safe operation and emergency power cut-off capabilities.
Open Project in Cirkit DesignerPLC-Controlled Power Window System with Infrared Sensing and Relay Module
This circuit is designed to control a motorized window system using a PLC (Programmable Logic Controller) and an array of sensors and switches. It includes power supplies for 12V and 24V DC, an MCB (Miniature Circuit Breaker) for protection, and a relay module interfaced with an Arduino for additional control logic. The PLC manages inputs from pushbuttons, a 3-position switch, infrared proximity sensors, and an emergency stop, and it controls outputs such as the motor speed controller, lamps, and solenoid valves.
Open Project in Cirkit DesignerModular Power Distribution System with Multiple SMPS Units and 120V Outlet
This circuit is designed to convert 240V AC power to both 12V and 24V DC outputs using multiple SMPS units. Terminal blocks are used to organize and distribute the power, while a 120V outlet provides additional AC power access. The circuit is likely used for powering various electronic devices that require different voltage levels.
Open Project in Cirkit DesignerFlush Switch Controlled Lamp Circuit with AC Power Supply and MCB Protection
This circuit is designed to control a lamp using a flush switch and is protected by two MCBs (Miniature Circuit Breakers). The AC supply is connected to the input of the first MCB, whose output is connected to the flush switch. The flush switch then controls the power to the lamp, with the second MCB placed in the neutral line for additional safety.
Open Project in Cirkit DesignerCommon Applications and Use Cases
- Protection of DC circuits in industrial automation systems
- Overcurrent protection in solar power systems
- Battery-powered systems and energy storage solutions
- Electric vehicle charging stations
- Low-voltage DC distribution panels
Technical Specifications
The following table outlines the key technical details of the 10A 24VDC MCB:
| Parameter | Specification |
|---|---|
| Rated Current | 10A |
| Rated Voltage | 24V DC |
| Number of Poles | 1 (Single Phase) |
| Breaking Capacity | 6kA |
| Trip Curve | Type C |
| Operating Temperature | -5°C to +40°C |
| Mounting Type | DIN Rail (35mm) |
| Dimensions (LxWxH) | 81mm x 18mm x 60mm |
| Housing Material | Flame-retardant thermoplastic |
| Compliance Standards | IEC/EN 60898-1 |
Pin Configuration and Descriptions
The 10A 24VDC MCB does not have traditional pins but instead features screw terminals for input and output connections. The table below describes the terminal configuration:
| Terminal | Description |
|---|---|
| Line (Input) | Connects to the positive terminal of the DC power source. |
| Load (Output) | Connects to the positive terminal of the load circuit. |
| Neutral | Not applicable (single-phase DC circuit). |
Usage Instructions
How to Use the Component in a Circuit
- Mounting the MCB: Securely attach the MCB to a standard 35mm DIN rail in your distribution panel or enclosure.
- Wiring:
- Connect the positive terminal of the DC power source to the Line (Input) terminal of the MCB.
- Connect the positive terminal of the load circuit to the Load (Output) terminal of the MCB.
- Ensure all connections are tight and secure to prevent arcing or loose contacts.
- Testing:
- After wiring, switch the MCB to the "ON" position.
- Verify that the circuit operates correctly under normal conditions.
- Operation:
- The MCB will automatically trip (switch to the "OFF" position) if the current exceeds 10A.
- To reset, switch the MCB back to the "ON" position after resolving the overcurrent issue.
Important Considerations and Best Practices
- Voltage Compatibility: Ensure the MCB is used only in 24V DC circuits. Using it in higher voltage systems may result in failure or unsafe operation.
- Current Rating: Do not exceed the 10A current rating. For circuits with higher current requirements, select an appropriately rated MCB.
- Proper Grounding: While the MCB does not handle grounding directly, ensure the overall system is properly grounded for safety.
- Environmental Conditions: Avoid installing the MCB in environments with excessive moisture, dust, or extreme temperatures outside the specified range.
- Periodic Inspection: Regularly inspect the MCB for signs of wear, damage, or loose connections.
Troubleshooting and FAQs
Common Issues Users Might Face
MCB Trips Frequently:
- Cause: The connected load exceeds the 10A current rating.
- Solution: Check the load current and reduce it to within the MCB's rated capacity.
MCB Does Not Trip During Overcurrent:
- Cause: Faulty MCB or incorrect wiring.
- Solution: Verify the wiring and replace the MCB if it is defective.
MCB Does Not Reset After Tripping:
- Cause: Persistent overcurrent or short circuit in the load circuit.
- Solution: Inspect the load circuit for faults and resolve them before resetting the MCB.
Arcing or Sparks at Terminals:
- Cause: Loose connections or damaged terminals.
- Solution: Tighten all connections and replace damaged terminals if necessary.
FAQs
Q1: Can this MCB be used in AC circuits?
A1: No, this MCB is specifically designed for DC circuits with a rated voltage of 24V. Using it in AC circuits may result in improper operation or damage.
Q2: What is the significance of the Type C trip curve?
A2: The Type C trip curve means the MCB trips when the current is 5 to 10 times the rated current (50A to 100A in this case). This makes it suitable for circuits with moderate inrush currents, such as motors or transformers.
Q3: How do I know if the MCB is faulty?
A3: If the MCB does not trip during an overcurrent condition or fails to reset after tripping, it may be faulty. Test it with a known overcurrent condition or replace it if necessary.
Q4: Can I use this MCB in a solar power system?
A4: Yes, this MCB is suitable for low-voltage DC applications, including solar power systems. Ensure the current and voltage ratings match your system requirements.
