How to Use 5V PSU: Examples, Pinouts, and Specs

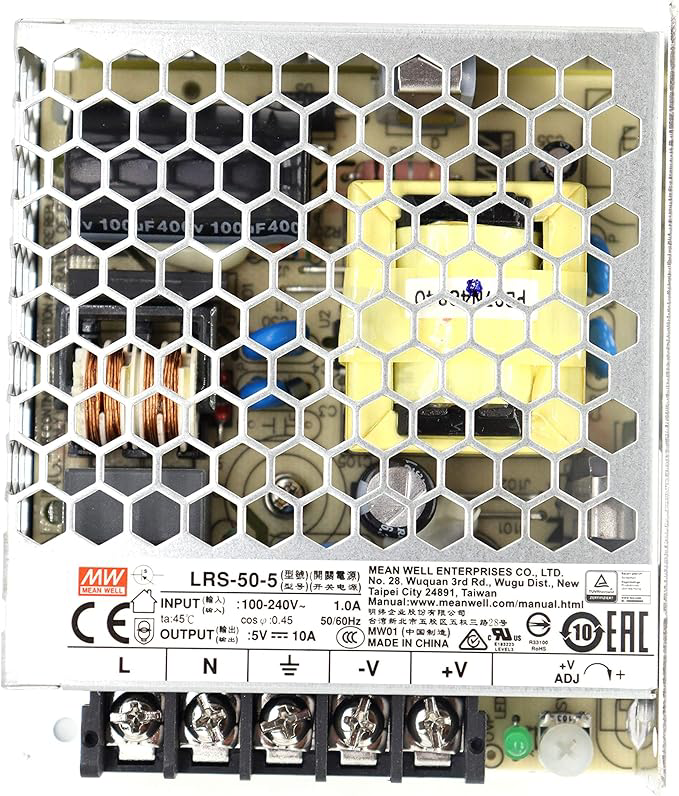

Image of 5V PSU
Cirkit Designer LogoDesign with 5V PSU in Cirkit Designer

Introduction

A 5V Power Supply Unit (PSU) provides a stable 5-volt output to power electronic circuits and devices, ensuring consistent voltage for reliable operation. It is a fundamental component in electronics, commonly used to power microcontrollers, sensors, LEDs, and other low-voltage devices. The 5V PSU is essential for projects requiring a reliable and regulated power source.

Explore Projects Built with 5V PSU

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
12V to 5V Power Supply with LED Indicator and Push Switch
Image of Power Supply LVCO: A project utilizing 5V PSU in a practical application
This circuit is a 12V to 5V regulated power supply with an LED indicator. It uses a 5408 diode for reverse polarity protection, an LM340T5 7805 voltage regulator to step down the voltage to 5V, and a push switch to control the LED indicator. The circuit also includes capacitors for filtering and a resistor to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered USB Charger with LED Indicator and DC Motor
Image of Copy of Hand Crank mobile charger : A project utilizing 5V PSU in a practical application
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
Image of rfdriver: A project utilizing 5V PSU in a practical application
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
USB-Powered DC Gear Motor with LED Indicator
Image of Hand Crank mobile charger : A project utilizing 5V PSU in a practical application
This circuit appears to be a power supply unit with a bridge rectifier connected to a DC gear motor, indicating it is designed to convert AC to DC power for the motor. An electrolytic capacitor is used for smoothing the DC output, and a 7805 voltage regulator is included to provide a stable 5V output. Additionally, there is an LED with a series resistor, likely serving as a power indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with 5V PSU

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Power Supply LVCO: A project utilizing 5V PSU in a practical application
12V to 5V Power Supply with LED Indicator and Push Switch
This circuit is a 12V to 5V regulated power supply with an LED indicator. It uses a 5408 diode for reverse polarity protection, an LM340T5 7805 voltage regulator to step down the voltage to 5V, and a push switch to control the LED indicator. The circuit also includes capacitors for filtering and a resistor to limit the current through the LED.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Copy of Hand Crank mobile charger : A project utilizing 5V PSU in a practical application
Battery-Powered USB Charger with LED Indicator and DC Motor
This circuit converts AC power to DC using a bridge rectifier and regulates the voltage to 5V with a 7805 voltage regulator. It powers a USB port and indicates power status with an LED, while also providing a charging interface through a multi-charging cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of rfdriver: A project utilizing 5V PSU in a practical application
Dual 5V Power Supply Distribution Circuit with Toggle Switch Control
This circuit consists of two 5V 5A power supplies connected to an AC wall plug point, providing DC output through a 12-way connector. The ground connections from both power supplies are interconnected and also connected to the ground pins of two toggle switches. The DC outputs from the power supplies are separately connected to different pins on the 12-way connector, with each power supply output being switchable via one of the toggle switches.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Hand Crank mobile charger : A project utilizing 5V PSU in a practical application
USB-Powered DC Gear Motor with LED Indicator
This circuit appears to be a power supply unit with a bridge rectifier connected to a DC gear motor, indicating it is designed to convert AC to DC power for the motor. An electrolytic capacitor is used for smoothing the DC output, and a 7805 voltage regulator is included to provide a stable 5V output. Additionally, there is an LED with a series resistor, likely serving as a power indicator light.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers such as Arduino, Raspberry Pi, and ESP32.
  • Supplying power to sensors, modules, and small motors.
  • Driving LED strips and displays.
  • Providing a stable voltage source for breadboard prototyping.
  • Charging USB-powered devices.

Technical Specifications

Below are the key technical details of a typical 5V PSU:

Parameter Specification
Input Voltage Range 100-240V AC (for AC-DC PSUs)
Output Voltage 5V DC
Output Current 500mA to 3A (varies by model)
Ripple and Noise <50mV
Efficiency ≥80%
Protection Features Overcurrent, Overvoltage, Short Circuit
Operating Temperature -10°C to 50°C
Connector Type Barrel jack, USB, or screw terminals

Pin Configuration and Descriptions

For a 5V PSU with screw terminal outputs:

Pin Label Description
1 V+ Positive 5V DC output
2 V- Ground (GND)

For a USB-based 5V PSU:

Pin Label Description
1 VBUS Positive 5V DC output
2 D- Data line (-), not used for power
3 D+ Data line (+), not used for power
4 GND Ground (GND)

Usage Instructions

How to Use the 5V PSU in a Circuit

  1. Connect the Input Power Source:
    • For AC-DC PSUs, plug the unit into a standard AC outlet.
    • For DC-DC converters, connect the input terminals to a DC voltage source within the specified range.
  2. Connect the Output Terminals:
    • Attach the V+ terminal to the positive rail of your circuit.
    • Attach the V- (GND) terminal to the ground rail of your circuit.
  3. Verify Connections:
    • Double-check all connections to ensure proper polarity and avoid short circuits.
  4. Power On:
    • Turn on the PSU (if it has a power switch) or apply input power to activate the unit.

Important Considerations and Best Practices

  • Check Current Requirements: Ensure the PSU can supply sufficient current for all connected devices.
  • Avoid Overloading: Do not exceed the PSU's maximum current rating to prevent damage.
  • Use Proper Heat Dissipation: If the PSU gets warm during operation, ensure adequate ventilation.
  • Protect Against Short Circuits: Use fuses or circuit breakers for added safety.
  • Stabilize Voltage: For sensitive circuits, consider adding capacitors to the output to further reduce ripple.

Example: Using a 5V PSU with an Arduino UNO

To power an Arduino UNO using a 5V PSU, follow these steps:

  1. Connect the V+ terminal of the PSU to the Arduino's 5V pin.
  2. Connect the V- terminal of the PSU to the Arduino's GND pin.
  3. Ensure the PSU is set to output 5V before powering the Arduino.

Here is an example Arduino sketch to blink an LED while powered by the 5V PSU:

// Blink an LED connected to pin 13
// Ensure the Arduino is powered by a stable 5V PSU

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. No Output Voltage:

    • Cause: Input power is not connected or insufficient.
    • Solution: Verify the input power source and connections.
  2. Voltage Drops Under Load:

    • Cause: PSU is overloaded or insufficient current capacity.
    • Solution: Use a PSU with a higher current rating.
  3. Excessive Heat:

    • Cause: PSU is operating near its maximum capacity or in a poorly ventilated area.
    • Solution: Reduce the load or improve ventilation.
  4. Ripple or Noise in Output:

    • Cause: Insufficient filtering or high-frequency interference.
    • Solution: Add capacitors (e.g., 100µF and 0.1µF) across the output terminals.

FAQs

Q: Can I use a 5V PSU to charge a USB device?
A: Yes, as long as the PSU provides sufficient current and has a USB connector or adapter.

Q: What happens if I reverse the polarity of the output connections?
A: Reversing polarity can damage connected devices. Always double-check connections before powering on.

Q: Can I use a 5V PSU to power a 3.3V device?
A: No, a 5V PSU will damage 3.3V devices. Use a voltage regulator or step-down converter to reduce the voltage.

Q: How do I know if my PSU is overloaded?
A: Symptoms of overloading include voltage drops, excessive heat, or the PSU shutting down. Reduce the load to resolve the issue.
