How to Use Step Down Buck Converter LM2596: Examples, Pinouts, and Specs

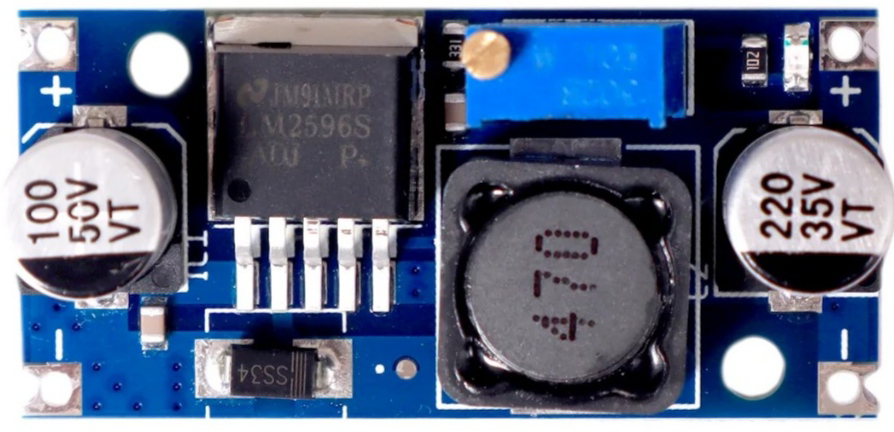

Image of Step Down Buck Converter LM2596
Cirkit Designer LogoDesign with Step Down Buck Converter LM2596 in Cirkit Designer

Introduction

The LM2596 is a DC-DC step-down (buck) voltage regulator designed to efficiently convert a higher input voltage to a lower, stable output voltage. It is widely used in power supply circuits due to its high efficiency, adjustable output voltage, and ability to deliver up to 3A of output current. This component is ideal for applications requiring regulated power for microcontrollers, sensors, and other electronic devices.

Explore Projects Built with Step Down Buck Converter LM2596

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
Image of solar system router ups: A project utilizing Step Down Buck Converter LM2596 in a practical application
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered UPS with Step-Down Buck Converter and BMS
Image of Mini ups: A project utilizing Step Down Buck Converter LM2596 in a practical application
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
Image of Autonomus Car: A project utilizing Step Down Buck Converter LM2596 in a practical application
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Battery-Powered DC Generator with XL4015 Buck Converter
Image of conveyor: A project utilizing Step Down Buck Converter LM2596 in a practical application
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Step Down Buck Converter LM2596

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of solar system router ups: A project utilizing Step Down Buck Converter LM2596 in a practical application
Voltage Regulation System with MT3608 Boost and LM2596 Buck Converters
This circuit consists of two MT3608 boost converters and an LM2596 step-down module, each connected to separate 12V power supplies. The MT3608 modules are configured to step up the voltage from their respective power supplies, while the LM2596 module steps down the voltage from a 12V battery. Diodes are used to ensure correct current flow direction, potentially for protection or isolation between different parts of the circuit.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Mini ups: A project utilizing Step Down Buck Converter LM2596 in a practical application
Battery-Powered UPS with Step-Down Buck Converter and BMS
This circuit is a power management system that steps down a 240V AC input to a lower DC voltage using a buck converter, which then powers a 40W UPS. The UPS is controlled by a rocker switch and is backed up by a battery management system (BMS) connected to three 3.7V batteries in series, ensuring continuous power supply.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Autonomus Car: A project utilizing Step Down Buck Converter LM2596 in a practical application
Battery-Powered ESP32 Devkit V1 with Buck Converter and Switch Control
This circuit is a power management system that uses two 18650 Li-ion batteries to supply power through a toggle switch and a rocker switch to an LM2956 Buck Converter. The buck converter steps down the voltage to a suitable level for a connected device via a Micro USB cable.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of conveyor: A project utilizing Step Down Buck Converter LM2596 in a practical application
Battery-Powered DC Generator with XL4015 Buck Converter
This circuit consists of a 12V battery connected to a rocker switch, which controls the input to an XL4015 DC Buck Step-down converter. The converter steps down the voltage to power a DC generator, with the generator's output connected back to the converter to form a feedback loop.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Powering microcontrollers (e.g., Arduino, Raspberry Pi) from higher voltage sources
  • Battery-powered systems requiring efficient voltage regulation
  • LED drivers and lighting systems
  • Industrial automation and control systems
  • DIY electronics projects

Technical Specifications

The LM2596 buck converter module is designed for ease of use and high performance. Below are its key technical specifications:

Parameter Value
Input Voltage Range 4.5V to 40V
Output Voltage Range 1.25V to 37V (adjustable via potentiometer)
Maximum Output Current 3A
Efficiency Up to 92%
Switching Frequency 150 kHz
Output Ripple ≤ 30 mV
Operating Temperature -40°C to +85°C
Dimensions Typically 43mm x 21mm x 14mm

Pin Configuration and Descriptions

The LM2596 module typically has the following pinout:

Pin Name Description
VIN Input voltage (connect to the higher voltage source)
GND Ground (common ground for input and output)
VOUT Regulated output voltage (connect to the load)

Usage Instructions

How to Use the LM2596 in a Circuit

  1. Connect the Input Voltage (VIN):

    • Attach the positive terminal of your power source to the VIN pin.
    • Connect the negative terminal of your power source to the GND pin.
  2. Adjust the Output Voltage:

    • Use the onboard potentiometer to set the desired output voltage.
    • Turn the potentiometer clockwise to increase the output voltage or counterclockwise to decrease it.
    • Use a multimeter to measure the output voltage at the VOUT pin while adjusting.
  3. Connect the Load:

    • Attach the positive terminal of your load to the VOUT pin.
    • Connect the negative terminal of your load to the GND pin.
  4. Power On:

    • Turn on the input power source. The module will regulate the input voltage to the desired output voltage.

Important Considerations and Best Practices

  • Ensure the input voltage is at least 1.5V higher than the desired output voltage for proper regulation.
  • Do not exceed the maximum input voltage of 40V or the maximum output current of 3A.
  • Use a heatsink or active cooling if operating at high currents for extended periods.
  • Place capacitors (e.g., 100µF electrolytic) at the input and output terminals to reduce voltage ripple and noise.
  • Avoid short-circuiting the output terminals, as this may damage the module.

Example: Using LM2596 with Arduino UNO

The LM2596 can be used to power an Arduino UNO from a 12V power source. Below is an example circuit and code:

Circuit Connections

  • Connect the 12V power source to the VIN and GND pins of the LM2596.
  • Adjust the output voltage to 5V using the potentiometer.
  • Connect the VOUT pin of the LM2596 to the 5V pin of the Arduino UNO.
  • Connect the GND pin of the LM2596 to the GND pin of the Arduino UNO.

Example Code

// Example code to blink an LED using Arduino UNO powered by LM2596
// Ensure the LM2596 output is set to 5V before connecting to Arduino

const int ledPin = 13; // Built-in LED pin on Arduino UNO

void setup() {
  pinMode(ledPin, OUTPUT); // Set LED pin as output
}

void loop() {
  digitalWrite(ledPin, HIGH); // Turn the LED on
  delay(1000);               // Wait for 1 second
  digitalWrite(ledPin, LOW);  // Turn the LED off
  delay(1000);               // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Output Voltage Not Stable:

    • Ensure the input voltage is within the specified range (4.5V to 40V).
    • Add input and output capacitors to reduce noise and ripple.
  2. Module Overheating:

    • Check if the output current exceeds 3A. Reduce the load if necessary.
    • Use a heatsink or active cooling to dissipate heat.
  3. No Output Voltage:

    • Verify all connections, especially the VIN and GND pins.
    • Check if the potentiometer is set correctly for the desired output voltage.
  4. High Output Ripple:

    • Add a larger capacitor (e.g., 470µF) at the output to smooth the voltage.

FAQs

Q: Can the LM2596 be used to charge batteries?
A: Yes, but ensure the output voltage is set to the appropriate charging voltage for the battery type. Use additional circuitry for current limiting if required.

Q: What happens if the input voltage drops below the output voltage?
A: The LM2596 will stop regulating, and the output voltage will drop below the desired level.

Q: Can I use the LM2596 for AC voltage input?
A: No, the LM2596 is designed for DC input only. Use a rectifier and filter circuit to convert AC to DC before using the module.

Q: Is the LM2596 suitable for audio applications?
A: While it can be used, the switching frequency (150 kHz) may introduce noise in sensitive audio circuits. Use additional filtering if necessary.
