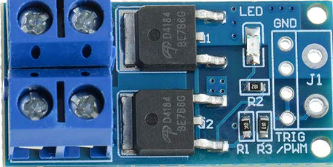

The MOSFET Trigger Switch is a versatile electronic component designed for efficient switching and control of electrical devices. It leverages a MOSFET (Metal-Oxide-Semiconductor Field-Effect Transistor) to enable high-speed switching and pulse-width modulation (PWM) control. This component operates within a voltage range of 5 to 30 volts and supports a continuous current of up to 15 amps, with a peak capacity of 30 amps. Its robust design makes it ideal for applications such as motor control, LED dimming, power management, and other high-current switching tasks.
Explore Projects Built with MOSFET Trigger Switch (PWM, 5-30V, 15A [30A Max])
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit includes a 12V 200Ah battery that powers a water pump and two DC motors, each controlled by a separate 12v~40v 10A PWM DC motor speed controller. A rocker switch (SPST) is used to control the power flow to the water pump and a pilot lamp indicates when the pump is powered. The DC motors' speed can be adjusted by the PWM controllers, and wire connectors are used to organize the connections between components.
This circuit features an ESP32-POE-ISO microcontroller connected to a 4-channel 30A 5V relay module. The ESP32 controls the relay channels via its GPIO pins, allowing for the switching of high-power devices through the relay module.
This circuit is designed to control the speed of a water pump using a PWM DC motor speed controller. The 12V5Ah battery provides power to the speed controller, which in turn regulates the power supplied to the water pump, allowing for adjustable flow rates. There is no microcontroller code provided, indicating that the speed control is likely adjusted manually via the PWM controller.
This circuit uses an Arduino UNO to control a MOSFET, which in turn regulates the current through a diode and a 15-ohm resistor. The Arduino outputs a signal to the gate of the MOSFET via a 10k-ohm resistor, allowing the MOSFET to switch the power supplied by an external power source to the diode and resistor.
DIY electronics projects requiring efficient power control
Technical Specifications
The following table outlines the key technical details of the MOSFET Trigger Switch:
Parameter
Value
Operating Voltage
5V to 30V
Continuous Current
15A
Peak Current
30A
Control Signal Voltage
3.3V to 12V (logic level)
PWM Frequency Range
Up to 20 kHz
Dimensions
Varies by manufacturer
Operating Temperature
-40°C to 85°C
Pin Configuration and Descriptions
The MOSFET Trigger Switch typically has the following pin configuration:
Pin Name
Description
VIN
Input voltage (5V to 30V) for powering the load.
VOUT
Output voltage to the load.
GND
Ground connection for the circuit.
PWM/CTRL
Control pin for PWM or logic-level signal (3.3V to 12V).
Usage Instructions
How to Use the Component in a Circuit
Power Supply Connection: Connect the VIN pin to the positive terminal of your power supply (5V to 30V) and the GND pin to the negative terminal.
Load Connection: Attach the load (e.g., motor, LED strip) between the VOUT pin and the ground of the power supply.
Control Signal: Connect the PWM/CTRL pin to a microcontroller (e.g., Arduino UNO) or a PWM signal generator. Ensure the control signal voltage is within the range of 3.3V to 12V.
PWM Control: Use a PWM signal to modulate the output voltage and control the load (e.g., adjust motor speed or LED brightness).
Important Considerations and Best Practices
Heat Dissipation: For continuous currents above 10A, ensure proper heat dissipation using a heatsink or active cooling.
Peak Current: Avoid exceeding the 30A peak current rating to prevent damage to the MOSFET.
PWM Frequency: Use a PWM frequency within the specified range (up to 20 kHz) for optimal performance.
Signal Isolation: If using a microcontroller, consider adding an optocoupler for signal isolation to protect the control circuit.
Example: Using with Arduino UNO
Below is an example of how to control the MOSFET Trigger Switch using an Arduino UNO to dim an LED strip.
// Define the PWM pin connected to the MOSFET Trigger Switch
const int pwmPin = 9; // Pin 9 supports PWM on Arduino UNO
void setup() {
pinMode(pwmPin, OUTPUT); // Set the PWM pin as an output
}
void loop() {
// Gradually increase brightness
for (int dutyCycle = 0; dutyCycle <= 255; dutyCycle++) {
analogWrite(pwmPin, dutyCycle); // Write PWM signal to the MOSFET
delay(10); // Delay for smooth transition
}
// Gradually decrease brightness
for (int dutyCycle = 255; dutyCycle >= 0; dutyCycle--) {
analogWrite(pwmPin, dutyCycle); // Write PWM signal to the MOSFET
delay(10); // Delay for smooth transition
}
}
Troubleshooting and FAQs
Common Issues and Solutions
The load is not turning on:
Ensure the VIN voltage is within the 5V to 30V range.
Verify that the control signal voltage (PWM/CTRL pin) is between 3.3V and 12V.
Check all connections for proper wiring.
Excessive heat generation:
Ensure the current through the MOSFET does not exceed 15A continuously.
Use a heatsink or active cooling for high-current applications.
PWM signal not working:
Confirm that the PWM frequency is within the supported range (up to 20 kHz).
Check the microcontroller's PWM pin configuration and ensure it is functioning correctly.
Load flickering or unstable operation:
Verify that the power supply can handle the load's current requirements.
Check for loose connections or insufficient grounding.
FAQs
Q: Can I use this component with a 3.3V microcontroller?
A: Yes, the control pin supports logic-level signals as low as 3.3V.
Q: What happens if I exceed the 30A peak current?
A: Exceeding the peak current may damage the MOSFET or cause the component to overheat. Always stay within the specified limits.
Q: Can I use this switch for AC loads?
A: No, this component is designed for DC loads only. For AC loads, consider using a solid-state relay (SSR).
Q: Is it necessary to use a heatsink?
A: A heatsink is recommended for continuous currents above 10A to prevent overheating and ensure reliable operation.
