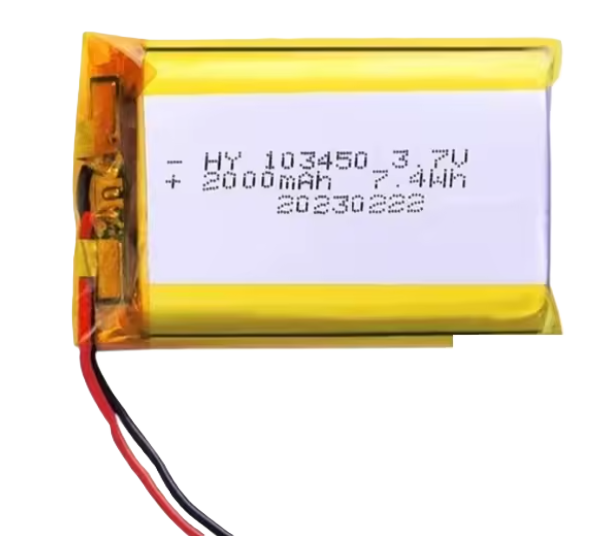

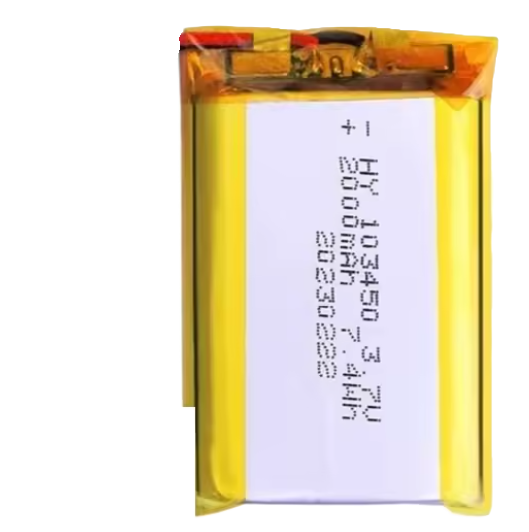

The 3.7V 2000mAh Rechargeable Battery (Manufacturer: YTBNA, Part ID: Lithium battery 103450) is a lithium-ion battery designed to provide reliable power for a wide range of portable electronic devices. With a nominal voltage of 3.7V and a capacity of 2000mAh, this battery is ideal for applications requiring compact, lightweight, and rechargeable power sources.
Explore Projects Built with 3.7V 2000mAh Rechargeable batt
Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
This circuit is a battery management and power supply system that uses three 3.7V batteries connected to a 3S 10A Li-ion 18650 Charger Protection Board Module for balanced charging and protection. The system includes a TP4056 Battery Charging Protection Module for additional charging safety, a Step Up Boost Power Converter to regulate and boost the voltage, and a USB regulator to provide a stable 5V output, controlled by a push switch.
This circuit is a power management system that integrates a 12V power supply, a solar charger power bank, and multiple Li-ion batteries to provide a stable power output. The Waveshare UPS 3S manages the input from the power sources and batteries, ensuring continuous power delivery. The MRB045 module is used to interface the solar charger with the rest of the system.
This circuit is a battery management and charging system for a 2S lithium-ion battery pack, which powers multiple MG996R servos. The TP5100 module charges the battery pack from a 12V power supply, while the 2S 30A BMS ensures safe operation and distribution of power to the servos.
This circuit consists of a Li-ion battery connected to a step-up power module through a rocker switch, which boosts the voltage to power a ring of copper gauge with an aluminum frame. The rocker switch allows the user to control the power flow from the battery to the step-up module, which then supplies the boosted voltage to the copper ring.
Below are the key technical details for the 3.7V 2000mAh Rechargeable Battery:
Parameter
Specification
Nominal Voltage
3.7V
Capacity
2000mAh
Chemistry
Lithium-ion (Li-ion)
Charging Voltage
4.2V ± 0.05V
Discharge Cut-off Voltage
2.75V ± 0.1V
Maximum Discharge Current
2C (4A)
Standard Charge Current
0.5C (1A)
Dimensions (L x W x H)
50mm x 34mm x 10mm
Weight
~35g
Operating Temperature
Charge: 0°C to 45°C, Discharge: -20°C to 60°C
Cycle Life
≥ 500 cycles (at 80% capacity retention)
Pin Configuration
The battery typically has two terminals for connection:
Pin
Description
Notes
Positive (+)
Positive terminal
Connect to the positive side of the circuit.
Negative (-)
Negative terminal
Connect to the ground or negative side of the circuit.
Note: Some batteries may include a built-in protection circuit module (PCM) to prevent overcharging, over-discharging, and short circuits.
Usage Instructions
How to Use the Battery in a Circuit
Connection:
Connect the positive terminal of the battery to the positive input of your circuit.
Connect the negative terminal to the ground or negative input of your circuit.
Charging:
Use a compatible lithium-ion battery charger with a constant current/constant voltage (CC/CV) charging profile.
Ensure the charging voltage does not exceed 4.2V.
Discharging:
Avoid discharging the battery below 2.75V to prevent damage.
Use a load that does not exceed the maximum discharge current (4A for this battery).
Protection:
If the battery does not include a built-in PCM, consider adding an external protection circuit to safeguard against overcharging, over-discharging, and short circuits.
Important Considerations and Best Practices
Safety: Do not puncture, crush, or expose the battery to fire or water.
Storage: Store the battery in a cool, dry place at a charge level of ~50% for long-term storage.
Temperature: Operate the battery within the specified temperature range to ensure optimal performance and safety.
Wiring: Use appropriate gauge wires to handle the current without overheating.
Arduino Integration: When using this battery with an Arduino UNO or similar microcontroller, ensure the voltage is regulated to 5V or 3.3V as required by the board.
Example: Using the Battery with an Arduino UNO
To power an Arduino UNO with this battery, you can use a DC-DC step-up converter to boost the 3.7V to 5V. Below is an example circuit and code:
Circuit Setup
Connect the battery's positive terminal to the input of the step-up converter.
Connect the battery's negative terminal to the ground of the step-up converter.
Connect the step-up converter's output to the Arduino UNO's VIN pin (5V input) and GND pin.
Sample Code
// Example code to blink an LED using Arduino UNO powered by a 3.7V battery
// Ensure the battery voltage is stepped up to 5V before connecting to Arduino
const int ledPin = 13; // Built-in LED pin on Arduino UNO
void setup() {
pinMode(ledPin, OUTPUT); // Set LED pin as output
}
void loop() {
digitalWrite(ledPin, HIGH); // Turn the LED on
delay(1000); // Wait for 1 second
digitalWrite(ledPin, LOW); // Turn the LED off
delay(1000); // Wait for 1 second
}
Note: Always monitor the battery voltage during operation to avoid over-discharging.
Troubleshooting and FAQs
Common Issues and Solutions
Issue
Possible Cause
Solution
Battery not charging
Charger not compatible or faulty
Use a charger designed for Li-ion batteries with CC/CV profile.
Battery drains quickly
Over-discharge or aging battery
Avoid deep discharges; replace if cycle life is exceeded.
Battery overheats during use
Excessive current draw
Ensure the load does not exceed the maximum discharge current (4A).
Arduino resets or malfunctions
Insufficient voltage or current
Use a step-up converter to provide stable 5V to the Arduino.
FAQs
Can I use this battery directly with a 5V device?
No, the nominal voltage of this battery is 3.7V. Use a DC-DC step-up converter to boost the voltage to 5V.
How do I know when the battery is fully charged?
A compatible charger will typically indicate full charge when the current drops to a minimal level while maintaining 4.2V.
Is it safe to leave the battery connected to the charger?
It is not recommended to leave the battery connected to the charger for extended periods after it is fully charged.
What happens if I over-discharge the battery?
Over-discharging can permanently damage the battery and reduce its capacity. Use a protection circuit to prevent this.
By following the guidelines in this documentation, you can safely and effectively use the 3.7V 2000mAh Rechargeable Battery in your projects.
