How to Use arduino nano: Examples, Pinouts, and Specs

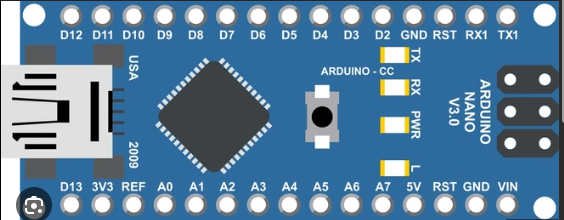

Image of arduino nano
Cirkit Designer LogoDesign with arduino nano in Cirkit Designer

Introduction

The Arduino Nano is a compact microcontroller board based on the ATmega328P microcontroller. It is designed for small-scale projects and prototyping, offering a balance of functionality and size. The Nano is equipped with digital and analog input/output pins, USB connectivity for programming and communication, and full compatibility with the Arduino IDE. Its small form factor makes it ideal for embedding into projects where space is limited.

Explore Projects Built with arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
Image of Compass: A project utilizing arduino nano in a practical application
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback
Image of Smart Wheel Chair: A project utilizing arduino nano in a practical application
This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration
Image of gps1: A project utilizing arduino nano in a practical application
This circuit features an Arduino UNO and an Arduino Nano as the primary microcontrollers, interfaced with a GPS module for location tracking. The UNO controls a green LED and a relay, while the Nano interfaces with an RC receiver, two servos, and an electronic speed controller (ESC). The circuit is designed for remote control and actuation, likely for a GPS-guided vehicle or drone, with the ability to receive commands via the RC receiver and to control movement through the servos and ESC.
Cirkit Designer LogoOpen Project in Cirkit Designer
Arduino Nano and OLED Display for Real-Time Data Visualization
Image of OLED Display: A project utilizing arduino nano in a practical application
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with arduino nano

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of Compass: A project utilizing arduino nano in a practical application
Arduino Nano-Based Portable GSM-GPS Navigator with Compass and Stepper Motor Control
This circuit features an Arduino Nano microcontroller coordinating communication, navigation, and motion control functions. It includes modules for GSM, GPS, and digital compass capabilities, as well as a stepper motor for precise movement, all powered by a LiPo battery with voltage regulation.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of Smart Wheel Chair: A project utilizing arduino nano in a practical application
Arduino-Controlled Bluetooth Robotic Vehicle with ADXL345 Accelerometer Feedback
This circuit features an Arduino UNO and an Arduino Nano as the main controllers, interfaced with two HC-05 Bluetooth modules for wireless communication. The UNO controls a L298N DC motor driver to operate four hobby motors, while the Nano is connected to an Adafruit ADXL345 accelerometer for motion sensing. Power is supplied through a 9V battery and a 2.1mm Barrel Jack with Terminal Block, and the system is designed for remote control and motion detection applications.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of gps1: A project utilizing arduino nano in a practical application
Arduino UNO and Nano Controlled GPS Tracking System with Relay and Servo Integration
This circuit features an Arduino UNO and an Arduino Nano as the primary microcontrollers, interfaced with a GPS module for location tracking. The UNO controls a green LED and a relay, while the Nano interfaces with an RC receiver, two servos, and an electronic speed controller (ESC). The circuit is designed for remote control and actuation, likely for a GPS-guided vehicle or drone, with the ability to receive commands via the RC receiver and to control movement through the servos and ESC.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of OLED Display: A project utilizing arduino nano in a practical application
Arduino Nano and OLED Display for Real-Time Data Visualization
This circuit consists of an Arduino Nano microcontroller connected to a 0.96" OLED display. The Arduino Nano provides power to the OLED display and communicates with it using the I2C protocol via the A4 (SDA) and A5 (SCK) pins.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • DIY electronics and prototyping
  • Robotics and automation systems
  • IoT (Internet of Things) devices
  • Wearable technology
  • Sensor-based projects
  • Educational tools for learning embedded systems

Technical Specifications

Key Technical Details

Parameter Specification
Microcontroller ATmega328P
Operating Voltage 5V
Input Voltage (VIN) 7-12V
Digital I/O Pins 14 (6 PWM outputs)
Analog Input Pins 8
DC Current per I/O Pin 40 mA
Flash Memory 32 KB (2 KB used by bootloader)
SRAM 2 KB
EEPROM 1 KB
Clock Speed 16 MHz
USB Connectivity Mini-B USB
Dimensions 18 x 45 mm

Pin Configuration and Descriptions

The Arduino Nano has a total of 30 pins, including power, digital, and analog pins. Below is the pin configuration:

Power Pins

Pin Name Description
VIN Input voltage to the board when using an external power source (7-12V).
5V Regulated 5V output from the onboard voltage regulator.
3.3V Regulated 3.3V output (maximum current: 50 mA).
GND Ground pins (multiple GND pins available).
RESET Resets the microcontroller when connected to GND.

Digital Pins

Pin Number Description
D0 - D13 General-purpose digital I/O pins. D3, D5, D6, D9, D10, and D11 support PWM.
RX (D0) Serial communication receive pin.
TX (D1) Serial communication transmit pin.

Analog Pins

Pin Number Description
A0 - A7 Analog input pins (10-bit resolution).

Other Pins

Pin Name Description
AREF Reference voltage for analog inputs.
ICSP In-Circuit Serial Programming header for flashing the microcontroller.

Usage Instructions

How to Use the Arduino Nano in a Circuit

  1. Powering the Board:

    • Use the VIN pin to supply 7-12V from an external power source.
    • Alternatively, connect the board to a computer or USB power adapter using a Mini-B USB cable.
  2. Programming the Board:

    • Install the Arduino IDE from the official Arduino website.
    • Connect the Nano to your computer via USB.
    • Select the correct board type (Arduino Nano) and processor (ATmega328P or ATmega328P (Old Bootloader)) in the Arduino IDE.
    • Write your code and upload it to the board.
  3. Connecting Components:

    • Use the digital pins (D0-D13) for digital input/output operations.
    • Use the analog pins (A0-A7) for reading analog signals from sensors.
    • Connect external modules (e.g., sensors, motors, displays) to the appropriate pins.

Important Considerations and Best Practices

  • Ensure the input voltage does not exceed the recommended range (7-12V) to avoid damaging the board.
  • Use current-limiting resistors when connecting LEDs or other components to the digital pins.
  • Avoid drawing more than 40 mA from any single I/O pin.
  • Use the RESET pin to manually reset the board if needed.
  • When using the Nano with an Arduino UNO, ensure proper pin mapping and voltage compatibility.

Example Code for Arduino Nano

Below is an example code to blink an LED connected to pin D13:

// Blink an LED connected to pin D13
// The LED will turn on for 1 second and off for 1 second repeatedly.

void setup() {
  pinMode(13, OUTPUT); // Set pin D13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. The board is not detected by the computer:

    • Ensure the USB cable is functional and supports data transfer.
    • Check if the correct COM port is selected in the Arduino IDE.
    • Install the necessary USB drivers for the Arduino Nano.
  2. Error: "avrdude: stk500_getsync() not in sync":

    • Verify that the correct board type and processor are selected in the Arduino IDE.
    • If using an older Nano, select ATmega328P (Old Bootloader) in the processor settings.
  3. The uploaded code does not work as expected:

    • Double-check the wiring and connections in your circuit.
    • Ensure the correct pins are defined in your code.
  4. The board overheats:

    • Check for short circuits in your circuit connections.
    • Ensure the input voltage does not exceed 12V.

FAQs

Q: Can I power the Arduino Nano with a 9V battery?
A: Yes, you can connect a 9V battery to the VIN pin or the DC barrel jack.

Q: How do I reset the Arduino Nano?
A: You can reset the board by pressing the onboard reset button or connecting the RESET pin to GND momentarily.

Q: Is the Arduino Nano compatible with shields?
A: The Nano does not directly support standard Arduino shields due to its smaller size, but you can use a Nano breakout board or custom wiring to connect shields.

Q: Can I use the Arduino Nano for wireless communication?
A: Yes, you can connect wireless modules like the HC-05 Bluetooth module or NRF24L01 transceiver to the Nano.


This concludes the documentation for the Arduino Nano.
