How to Use XIAO C6: Examples, Pinouts, and Specs

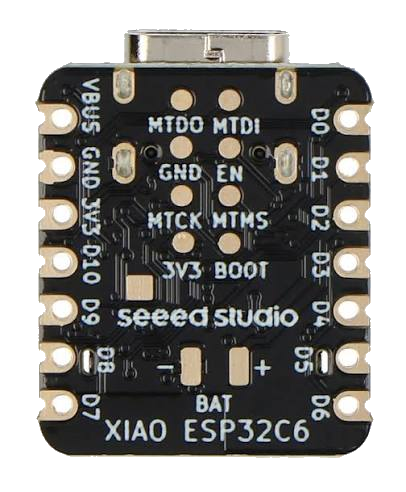

The XIAO C6, officially known as the XIAO ESP32 C6, is a compact and versatile microcontroller board designed by Xiao for small-scale projects and IoT (Internet of Things) applications. It is powered by the ESP32-C6 chip, which integrates a powerful ARM Cortex-M0+ processor, Wi-Fi 6, Bluetooth 5.0, and IEEE 802.15.4 for Zigbee and Thread protocols. This board is ideal for prototyping, embedded systems, and applications requiring wireless connectivity in a small form factor.

• IoT devices and smart home automation
• Wearable technology
• Wireless sensor networks
• Robotics and small-scale automation
• Prototyping with sensors and actuators
• Low-power, battery-operated devices

The XIAO C6 is packed with features that make it suitable for a wide range of applications. Below are its key technical specifications:

The XIAO C6 features a total of 14 pins, including power, GPIO, and communication interfaces. Below is the pinout description:

1. Powering the Board:

   • Connect the XIAO C6 to a computer or power source using a USB-C cable. The board operates at 3.3V internally but accepts 5V input via USB.
   • For battery-powered applications, connect a 3.3V power source to the 3.3V pin.

2. Programming the Board:

   • Install the Arduino IDE and add the ESP32 board package via the Board Manager.
   • Select "XIAO ESP32 C6" as the target board.
   • Connect the board to your computer via USB-C and upload your code.

3. Connecting Peripherals:

   • Use the GPIO pins to connect sensors, actuators, or other modules. Refer to the pin configuration table for supported functions (e.g., ADC, PWM, I2C, SPI, UART).

4. Wireless Communication:

   • Utilize the built-in Wi-Fi 6, Bluetooth 5.0, or Zigbee/Thread protocols for wireless communication. Libraries such as WiFi.h or BLEDevice.h can be used for programming.

• Voltage Levels: Ensure all connected peripherals operate at 3.3V logic levels to avoid damaging the board.
• Pin Multiplexing: Some pins have multiple functions (e.g., GPIO, ADC, I2C). Configure them appropriately in your code.
• Heat Management: While the XIAO C6 is efficient, prolonged use at high loads may generate heat. Ensure proper ventilation.
• Firmware Updates: Regularly check for firmware updates to ensure compatibility and access to new features.

Below is an example of using the XIAO C6 to read an analog sensor and send data via Wi-Fi:

#include <WiFi.h>

// Replace with your network credentials
const char* ssid = "Your_SSID";
const char* password = "Your_PASSWORD";

void setup() {
  Serial.begin(115200); // Initialize serial communication
  WiFi.begin(ssid, password); // Connect to Wi-Fi

  // Wait for connection
  while (WiFi.status() != WL_CONNECTED) {
    delay(1000);
    Serial.println("Connecting to Wi-Fi...");
  }
  Serial.println("Connected to Wi-Fi!");
}

void loop() {
  int sensorValue = analogRead(GPIO0); // Read analog value from GPIO0
  Serial.print("Sensor Value: ");
  Serial.println(sensorValue);

  delay(1000); // Wait for 1 second before reading again
}

1. Board Not Detected by Computer:

   • Ensure the USB-C cable supports data transfer (not just charging).
   • Check if the correct drivers are installed for the XIAO C6.

2. Wi-Fi Connection Fails:

   • Verify the SSID and password in your code.
   • Ensure the Wi-Fi network is operational and within range.

3. Code Upload Fails:

   • Double-check that the correct board and port are selected in the Arduino IDE.
   • Press the reset button on the board before uploading.

4. Peripheral Not Working:

   • Confirm the pin configuration in your code matches the physical connections.
   • Check the voltage and current requirements of the connected device.

• Can the XIAO C6 operate on battery power?
  Yes, it can be powered by a 3.3V battery connected to the 3.3V pin.

• Does the XIAO C6 support OTA updates?
  Yes, the ESP32-C6 chip supports Over-The-Air (OTA) updates for firmware.

• What is the maximum Wi-Fi range?
  The range depends on environmental factors but typically extends up to 50 meters indoors.

• Can I use the XIAO C6 with MicroPython?
  Yes, the XIAO C6 supports MicroPython. You can flash the MicroPython firmware to the board.

This concludes the documentation for the XIAO C6. For further assistance, refer to the official Xiao documentation or community forums.
