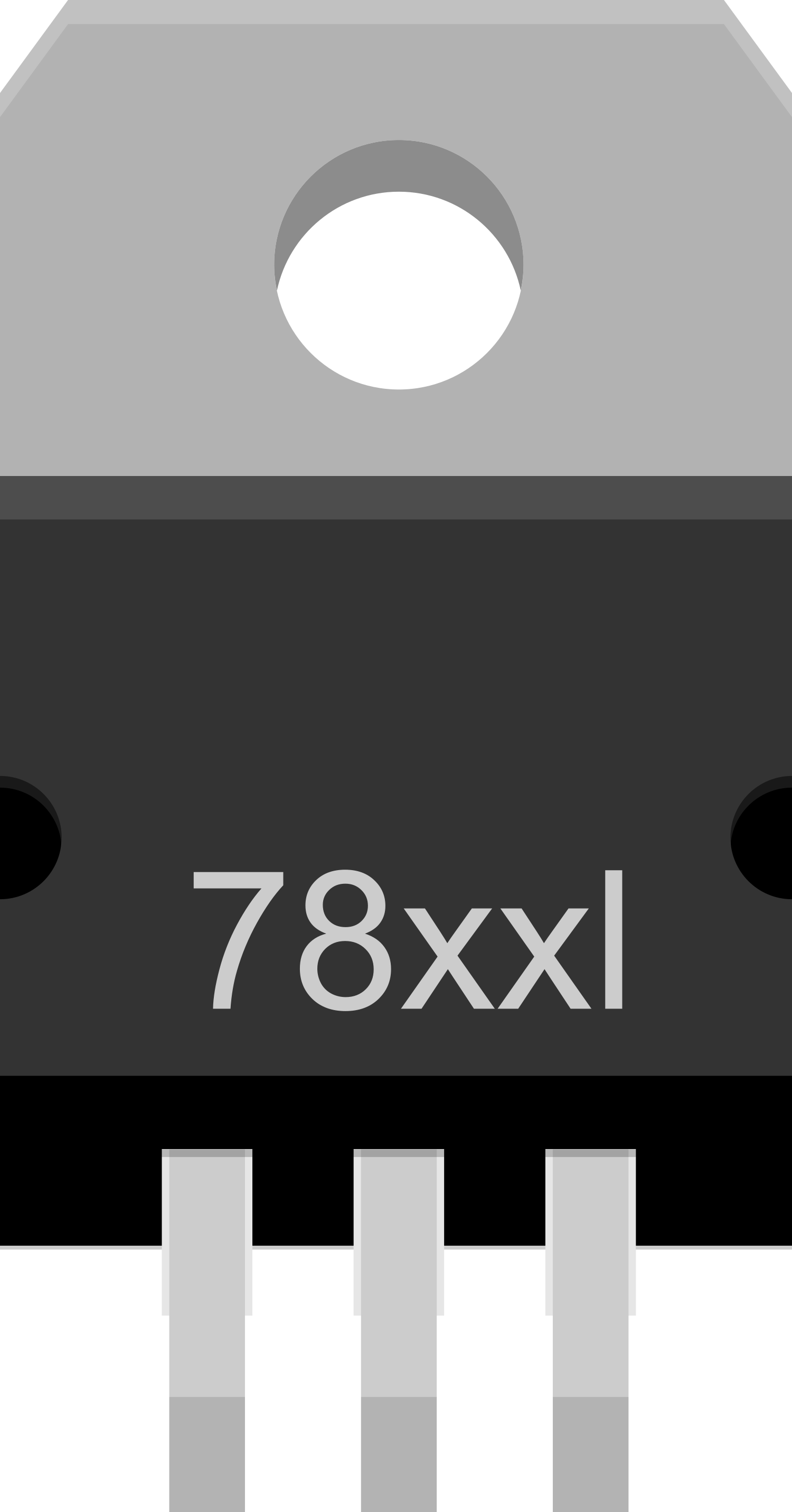

Image of Voltage Regulator
Cirkit Designer LogoDesign with Voltage Regulator in Cirkit Designer

Introduction

A voltage regulator is an electronic component designed to maintain a constant output voltage regardless of variations in input voltage or load conditions. It ensures a stable power supply to electronic circuits, protecting sensitive components from voltage fluctuations. Voltage regulators are widely used in power supplies, embedded systems, and battery-operated devices to provide reliable and consistent voltage levels.

Explore Projects Built with Voltage Regulator

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Battery-Powered LED Control Circuit with Potentiometer and Transistors
Image of STROBE LIGHTS: A project utilizing Voltage Regulator in a practical application
This circuit is a regulated power supply with a 12V battery input, a 7805 voltage regulator providing a 5V output, and a potentiometer for adjustable voltage control. It includes transistors and resistors for current regulation and an LED indicator to show the operational status.
Cirkit Designer LogoOpen Project in Cirkit Designer
AC to DC Power Supply with 7-Segment Voltage Display
Image of BEE PBL: A project utilizing Voltage Regulator in a practical application
This circuit is a regulated power supply that converts 220V AC to a lower, stable DC voltage. It includes a step-down transformer, bridge rectifier, voltage regulator, and filtering capacitors. A 7-segment display indicates the output voltage, which can be adjusted using a potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
LM317 Voltage Regulator Circuit for Adjustable Power Supply with Transformer and Diodes
Image of 12V BULB LIGHT DIMMER CIRCUIT: A project utilizing Voltage Regulator in a practical application
This circuit is a regulated power supply that converts AC voltage to a stable DC voltage. It uses a transformer to step down the AC voltage, diodes for rectification, an electrolytic capacitor for smoothing, and an LM317 voltage regulator to provide a stable output voltage, which is adjustable via a potentiometer. The output powers a bulb.
Cirkit Designer LogoOpen Project in Cirkit Designer
LM317 Voltage Regulator Circuit with Bridge Rectifier for Stable DC Output
Image of voltage regualator using LM317 IC: A project utilizing Voltage Regulator in a practical application
This circuit converts 220V AC to a regulated DC voltage using a bridge rectifier, smoothing capacitors, and an LM317 voltage regulator. The output voltage can be adjusted using a potentiometer connected to the LM317's adjustment pin.
Cirkit Designer LogoOpen Project in Cirkit Designer

Explore Projects Built with Voltage Regulator

Use Cirkit Designer to design, explore, and prototype these projects online. Some projects support real-time simulation. Click "Open Project" to start designing instantly!
Image of STROBE LIGHTS: A project utilizing Voltage Regulator in a practical application
Battery-Powered LED Control Circuit with Potentiometer and Transistors
This circuit is a regulated power supply with a 12V battery input, a 7805 voltage regulator providing a 5V output, and a potentiometer for adjustable voltage control. It includes transistors and resistors for current regulation and an LED indicator to show the operational status.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of BEE PBL: A project utilizing Voltage Regulator in a practical application
AC to DC Power Supply with 7-Segment Voltage Display
This circuit is a regulated power supply that converts 220V AC to a lower, stable DC voltage. It includes a step-down transformer, bridge rectifier, voltage regulator, and filtering capacitors. A 7-segment display indicates the output voltage, which can be adjusted using a potentiometer.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of 12V BULB LIGHT DIMMER CIRCUIT: A project utilizing Voltage Regulator in a practical application
LM317 Voltage Regulator Circuit for Adjustable Power Supply with Transformer and Diodes
This circuit is a regulated power supply that converts AC voltage to a stable DC voltage. It uses a transformer to step down the AC voltage, diodes for rectification, an electrolytic capacitor for smoothing, and an LM317 voltage regulator to provide a stable output voltage, which is adjustable via a potentiometer. The output powers a bulb.
Cirkit Designer LogoOpen Project in Cirkit Designer
Image of voltage regualator using LM317 IC: A project utilizing Voltage Regulator in a practical application
LM317 Voltage Regulator Circuit with Bridge Rectifier for Stable DC Output
This circuit converts 220V AC to a regulated DC voltage using a bridge rectifier, smoothing capacitors, and an LM317 voltage regulator. The output voltage can be adjusted using a potentiometer connected to the LM317's adjustment pin.
Cirkit Designer LogoOpen Project in Cirkit Designer

Common Applications and Use Cases

  • Power supplies for electronic devices
  • Voltage stabilization in embedded systems
  • Battery-powered devices to regulate output voltage
  • Protection of sensitive components from voltage spikes
  • DC-DC or AC-DC conversion circuits

Technical Specifications

Voltage regulators come in various types, such as linear regulators (e.g., 7805) and switching regulators (e.g., buck or boost converters). Below are the general specifications for a common linear voltage regulator, the 7805, which outputs a fixed 5V:

General Specifications

Parameter Value
Input Voltage Range 7V to 35V
Output Voltage 5V ± 2%
Maximum Output Current 1.5A
Dropout Voltage 2V (typical)
Operating Temperature -40°C to +125°C
Quiescent Current 5mA (typical)

Pin Configuration and Descriptions

Pin Number Pin Name Description
1 Input Connect to the unregulated input voltage source.
2 Ground Common ground for input and output.
3 Output Provides the regulated output voltage.

Usage Instructions

How to Use the Voltage Regulator in a Circuit

  1. Connect the Input Voltage: Attach the unregulated DC voltage source to the Input pin. Ensure the input voltage is within the specified range (e.g., 7V to 35V for the 7805).
  2. Connect the Ground: Link the Ground pin to the common ground of the circuit.
  3. Connect the Output Voltage: The regulated output voltage (e.g., 5V) will be available at the Output pin. Connect this pin to the load or circuit requiring stable voltage.
  4. Add Capacitors: Place a capacitor (e.g., 0.33µF) between the Input pin and ground, and another capacitor (e.g., 0.1µF) between the Output pin and ground. These capacitors help filter noise and improve stability.

Important Considerations and Best Practices

  • Heat Dissipation: Voltage regulators can generate heat during operation. Use a heatsink if the regulator is supplying high current or if the input voltage is significantly higher than the output voltage.
  • Input Voltage: Ensure the input voltage is at least 2V higher than the desired output voltage for proper regulation (for linear regulators like the 7805).
  • Load Current: Do not exceed the maximum output current rating (e.g., 1.5A for the 7805).
  • Bypass Capacitors: Always use the recommended capacitors to prevent oscillations and ensure stable operation.

Example: Using a 7805 Voltage Regulator with Arduino UNO

Below is an example circuit and code to power an Arduino UNO using a 7805 voltage regulator:

Circuit Setup

  1. Connect a 9V battery to the Input pin of the 7805.
  2. Connect the Ground pin of the 7805 to the Arduino's GND pin.
  3. Connect the Output pin of the 7805 to the Arduino's 5V pin.
  4. Add a 0.33µF capacitor between the Input pin and ground, and a 0.1µF capacitor between the Output pin and ground.

Arduino Code Example

// Example code to blink an LED connected to pin 13 of Arduino UNO
// This demonstrates the Arduino running on a regulated 5V supply

void setup() {
  pinMode(13, OUTPUT); // Set pin 13 as an output pin
}

void loop() {
  digitalWrite(13, HIGH); // Turn the LED on
  delay(1000);            // Wait for 1 second
  digitalWrite(13, LOW);  // Turn the LED off
  delay(1000);            // Wait for 1 second
}

Troubleshooting and FAQs

Common Issues and Solutions

  1. Output Voltage is Incorrect

    • Cause: Input voltage is too low.
    • Solution: Ensure the input voltage is at least 2V higher than the desired output voltage.
  2. Regulator Overheats

    • Cause: Excessive current draw or high input voltage.
    • Solution: Use a heatsink or reduce the load current.
  3. Oscillations or Noise

    • Cause: Missing or insufficient bypass capacitors.
    • Solution: Add the recommended capacitors (e.g., 0.33µF on input, 0.1µF on output).
  4. No Output Voltage

    • Cause: Incorrect wiring or damaged regulator.
    • Solution: Double-check connections and replace the regulator if necessary.

FAQs

  1. Can I use a 7805 to power a 3.3V device?

    • No, the 7805 outputs a fixed 5V. Use a 3.3V regulator (e.g., LD1117-3.3) instead.
  2. What happens if I exceed the maximum current rating?

    • The regulator may overheat, shut down, or become permanently damaged. Always stay within the specified current limit.
  3. Can I use a voltage regulator with an AC input?

    • No, voltage regulators require a DC input. Use a rectifier and filter circuit to convert AC to DC before connecting to the regulator.

By following this documentation, you can effectively use a voltage regulator to ensure stable and reliable power for your electronic projects.
