How to Use DHT22: Examples, Pinouts, and Specs

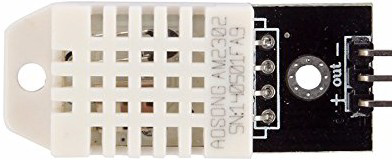

The DHT22 is a digital temperature and humidity sensor that provides accurate readings of temperature in Celsius and humidity in percentage. It is widely used in applications requiring environmental monitoring, such as weather stations, HVAC systems, greenhouses, and IoT projects. The DHT22 is known for its high accuracy and reliability, making it a popular choice for both hobbyists and professionals.

• Temperature Range: -40°C to +80°C
• Temperature Accuracy: ±0.5°C
• Humidity Range: 0% to 100% RH
• Humidity Accuracy: ±2% RH
• Operating Voltage: 3.3V to 6V
• Max Current Consumption: 2.5mA during data transmission
• Communication Protocol: Single-wire digital signal
• Sampling Period: Minimum 2 seconds between readings
• Dimensions: 15.1mm x 25mm x 7.7mm

The DHT22 has four pins, as described in the table below:

1. Power the Sensor: Connect the VCC pin to a 3.3V or 5V power source and the GND pin to ground.
2. Data Communication: Connect the DATA pin to a GPIO pin on your microcontroller. Use a 10kΩ pull-up resistor between the DATA pin and the VCC pin to ensure proper signal levels.
3. Timing Requirements: The DHT22 requires a minimum of 2 seconds between consecutive readings to ensure accurate data.
4. Library Support: Use a compatible library (e.g., DHT library for Arduino) to simplify communication with the sensor.

• Avoid Rapid Sampling: Ensure a delay of at least 2 seconds between readings to prevent inaccurate data.
• Stable Power Supply: Use a stable power source to avoid fluctuations that may affect sensor performance.
• Environmental Factors: Place the sensor in a location free from direct sunlight, condensation, or strong airflow for accurate readings.
• Pull-Up Resistor: Always use a pull-up resistor on the DATA pin to ensure reliable communication.

Below is an example of how to use the DHT22 with an Arduino UNO:

#include "DHT.h"

// Define the pin where the DHT22 is connected
#define DHTPIN 2

// Define the type of DHT sensor (DHT22 in this case)
#define DHTTYPE DHT22

// Initialize the DHT sensor
DHT dht(DHTPIN, DHTTYPE);

void setup() {
  Serial.begin(9600); // Start the serial communication
  dht.begin();        // Initialize the DHT sensor
  Serial.println("DHT22 Sensor Initialized");
}

void loop() {
  delay(2000); // Wait 2 seconds between readings

  // Read temperature in Celsius
  float temperature = dht.readTemperature();
  // Read humidity in percentage
  float humidity = dht.readHumidity();

  // Check if the readings are valid
  if (isnan(temperature) || isnan(humidity)) {
    Serial.println("Failed to read from DHT sensor!");
    return;
  }

  // Print the readings to the Serial Monitor
  Serial.print("Temperature: ");
  Serial.print(temperature);
  Serial.println(" °C");

  Serial.print("Humidity: ");
  Serial.print(humidity);
  Serial.println(" %");
}

1. Problem: The sensor is not providing any data.

   • Solution: Check the wiring and ensure the VCC, GND, and DATA pins are correctly connected. Verify the pull-up resistor is in place.

2. Problem: The readings are inconsistent or incorrect.

   • Solution: Ensure a delay of at least 2 seconds between readings. Check for environmental factors like condensation or strong airflow that may affect accuracy.

3. Problem: The Arduino Serial Monitor shows "Failed to read from DHT sensor!"

   • Solution: Verify the sensor is properly connected and powered. Ensure the correct pin and sensor type are defined in the code.

• Q: Can the DHT22 be used outdoors?
  A: Yes, but it should be placed in a protective enclosure to shield it from direct sunlight, rain, and condensation.

• Q: What is the difference between the DHT22 and DHT11?
  A: The DHT22 offers higher accuracy, a wider temperature and humidity range, and better resolution compared to the DHT11.

• Q: Can I use the DHT22 with a 3.3V microcontroller?
  A: Yes, the DHT22 operates within a voltage range of 3.3V to 6V, making it compatible with 3.3V systems.

• Q: How long is the maximum cable length for the DHT22?
  A: The maximum cable length depends on the pull-up resistor value and the environment, but typically it should not exceed 20 meters. Use shielded cables for longer distances.
